Kondor Blue Sony A7 Series Ultimate Rig for A7S3/A7R4 - Black

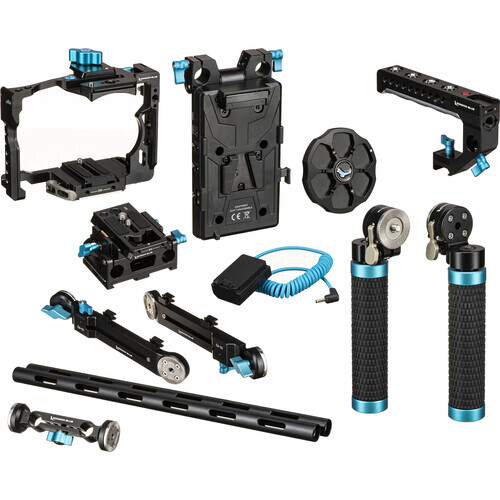

Unlock the potential for a complete cinema setup with your Sony Alpha series mirrorless camera using the Raven Black Ultimate Rig from Kondor Blue. This rig comprises a full cage with a remote trigger top handle, an ARRI/Manfrotto 501-compatible universal baseplate, rosette arms, grips, and clamp, a V-mount battery plate, a body cap, a pair of 12" 15mm aluminium rods, and an NP-FZ100 dummy battery.
Kondor Blue Full Camera Cage with Top Handle for Sony a1/a7 Series (Raven Black)

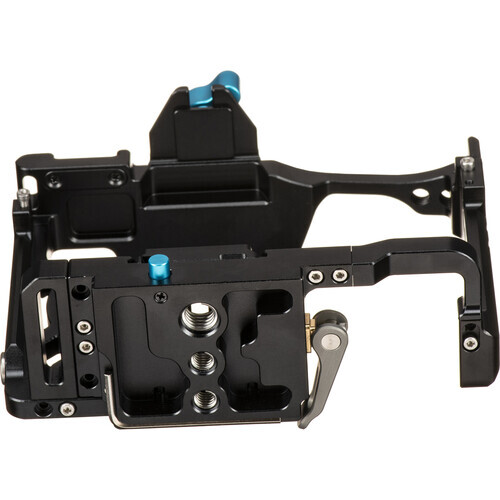

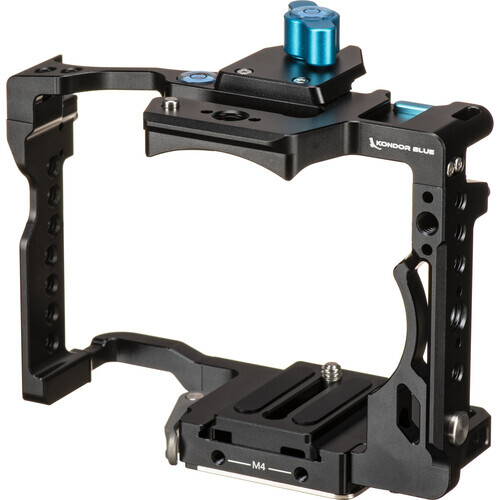

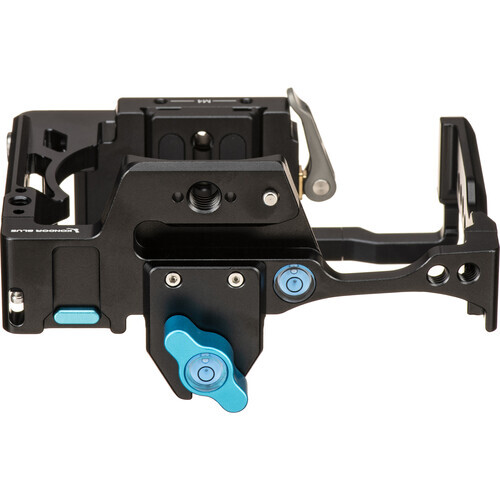

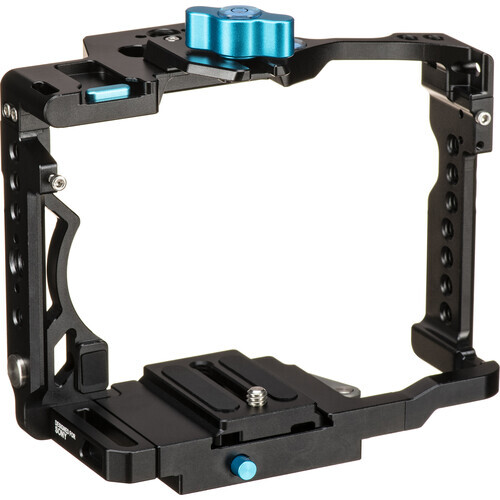

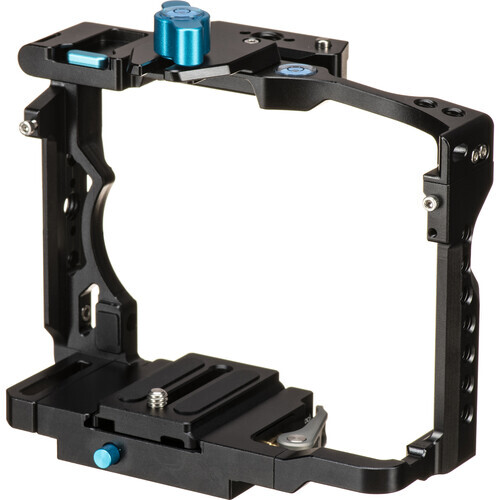

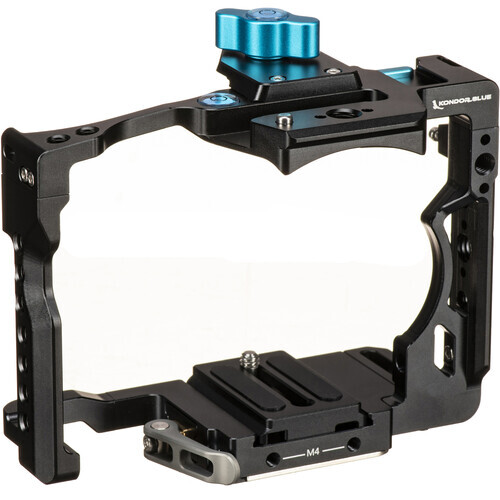

Custom-fit to select Sony a1 and a7 cameras, this raven black Full Camera Cage with Top Handle from Kondor Blue adds multiple mounting points for configuring your rig. The cage still maintains access to your camera's ports and controls. Multiple 1/4"-20 and 3/8"-16 threads with ARRI locating pins all around the cage allow you to attach articulating arms and adapters.

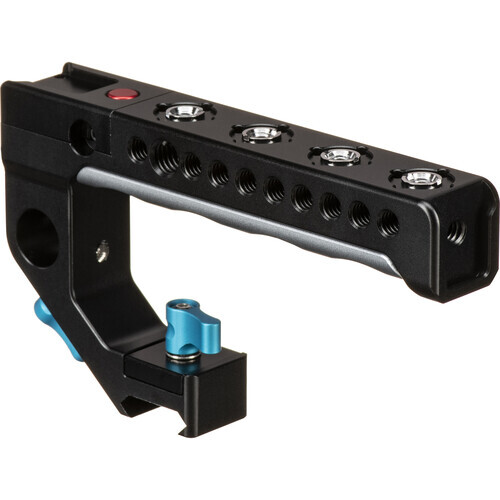

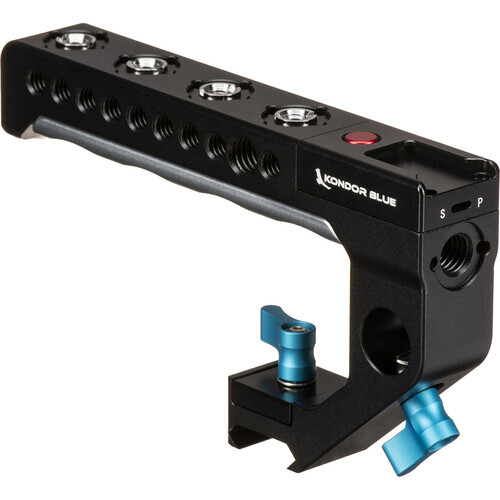

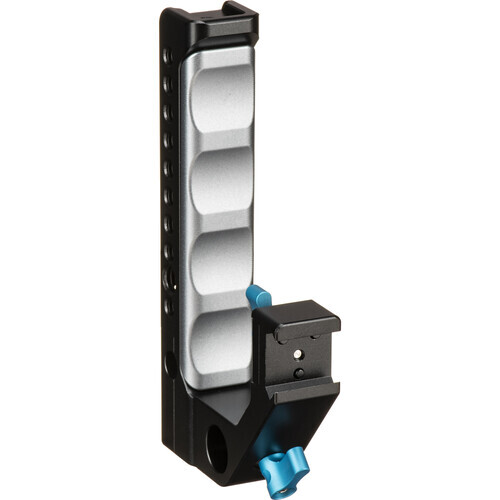

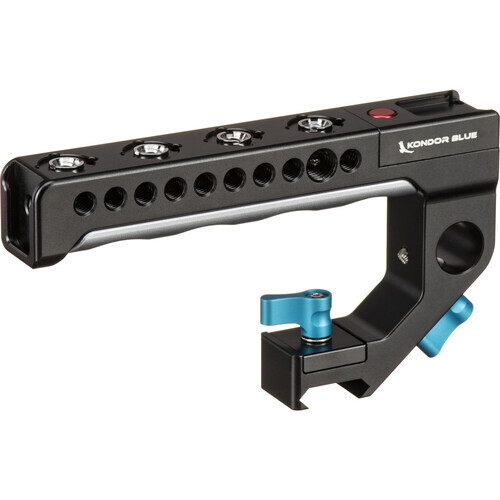

A cold shoe at the top of the cage can accommodate a wireless receiver or shotgun microphone. Two NATO rails can attach other accessories like the included top handle for even more mounting options and a start-stop record button. A built-in Arca-Swiss plate system secures the camera in the cage and offers a quick release configuration.
Camera Compatibility
- Sony a1
- Sony a7, a7 IV, a7R IV, a7S III
Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)
Although featuring a fairly universal design, the raven black Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.
A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.
Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Raven Black)
Add professional battery power to your rig with this raven black V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.
The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.
Kondor Blue Aluminium Body Cap for Sony E-Mount Cameras (Black)
Protect your camera's mount and sensor with this Aluminium Body Cap for Sony E-Mount Cameras, in black, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera's mount, and the anodized finish protects the cap from scratches and scuffs.

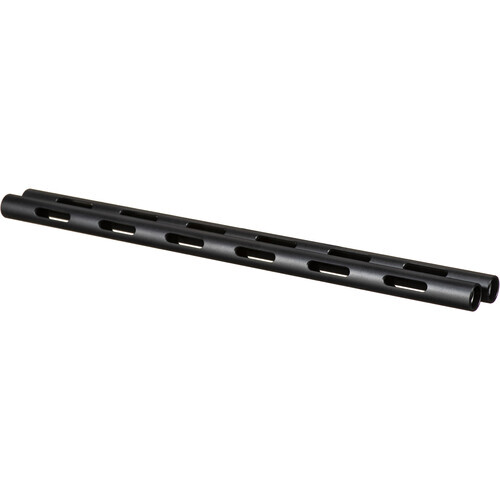

Kondor Blue PPSH 15mm Rods (Pair, Black, 12")
Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These black aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.
Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.
Kondor Blue 1.35/3.5mm DC to Sony NP-FZ100 Dummy Battery Cable
Kondor's 1.35/3.5mm DC to NP-FZ100 Dummy Battery Cable is a coiled power cable that allows you to connect select Sony cameras to Kondor Cine V-mount and Gold mount battery plates, allowing you to leave the D-Tap ports of the battery plates available for accessories. The NP-FZ100 dummy battery is compatible with the Sony a9 II, a9, a7R IV, a7R III, a7 III, a7S III, and a6600 cameras. The DC end connects to the Kondor battery plate and the cable outputs regulated power at 8V. The power regulator is neatly tucked away in the dummy battery, so it doesn't interfere with the cable.
KONDOR BLUE FULL CAMERA CAGE WITH TOP HANDLE FOR SONY A1/A7 SERIES (RAVEN BLACK) | |
Support Type
|
Cage
|
Grip Type |
Topside Handgrip
|
Camera Compatibility |
Sony a1, Sony a7, Sony a7 IV, Sony a7R IV, Sony a7S III
|
MOUNTING | |
Rod Standard |
15 mm Single Rod
|
Accessory Mounting |
Cage
|
Multiple 1/4"-20 Female Thread | |
Multiple ARRI Anti-Twist 3/8"-16 Female Thread | |
M4 Female Thread | |
Top Handle | |
Multiple 1/4"-20 Female Thread | |
ARRI Anti-Twist 3/8"-16 Female Thread | |
Camera Mounting |
Arca-Type Plate
|
Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread
|
Rod Ports |
Top Handle
|
15 mm Rod Port | |
Shoe Mounting |
Cage
|
Cold Shoe | |
Top Handle | |
Cold Shoe | |
Rail Mounting |
NATO Rail
|
GENERAL | |
Dimensions |
12.7 x 7.6 x 2.5 cm (Cage)
|
Weight |
0.170 kg
|
KONDOR BLUE 15MM ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (RAVEN BLACK) | |
Support Type
|
Baseplate
|
Camera Compatibility |
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K
|
MOUNTING | |
Rod Standard |
15 mm LWS / 60 mm Spacing
|
Camera Mounting |
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
|
Tripod Mounting |
Baseplate
|
1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501 | |
Rod Ports |
15 mm Rod Port
|
GENERAL | |
Materials |
Aluminium
|
Dimensions |
12.7 x 10.16 x 8.89 cm
|
Weight |
0.323 kg
|
KONDOR BLUE CINE BATTERY PLATE WITH 15MM ROD CLAMP (V-MOUNT, RAVEN BLACK) | |
POWER | |
Power Input |
DC Jack: 15 VDC
|
Power Output |
D-Tap: VDC
|
DC Jack: 15 VDC | |
DC Jack: 12 VDC | |
DC Jack: 7.4 to 8.4 VDC | |
DC Jack: 5 VDC | |
GENERAL | |
Camera Power Method |
Connector
|
Inputs/Outputs |
D-Tap
|
2.5 mm Coaxial | |
DC Jack | |
Plate Front / Battery Mount |
V-Mount
|
Plate Rear Mount |
15 mm Rod Clamp
|
Number of Battery Bays |
1
|
Material of Construction |
ABS Plastic, Aluminium
|
Dimensions |
20.3 x 12.7 x 5.1 cm
|
Weight |
0.277 kg
|
KONDOR BLUE ALUMINUM BODY CAP FOR SONY E-MOUNT CAMERAS (BLACK) | |
Camera Body Mount
|
Sony E
|
Material |
Aluminium
|
KONDOR BLUE PPSH 15MM RODS (PAIR, BLACK, 12") | |
Diameter
|
15 mm
|
Length |
12" / 30.5 cm
|
Material |
Aluminium
|
Thread Type |
Female / Female
|
Thread Size |
12 mm
|
Number of Rods |
2
|
KONDOR BLUE 1.35/3.5MM DC TO SONY NP-FZ100 DUMMY BATTERY CABLE | |
Connector 1
|
1.3/3.5 mm DC
|
Dummy Battery |
NP-FZ100
|
Output |
8 V Regulated
|
Output Current |
0.083333333
|
Length |
16 to 36" / 41 to 91 cm
|
* Specifications subject to change by the manufacturer without notice.
- Kondor Blue Full Camera Cage with Top Handle for Sony a1/a7 Series (Raven Black)

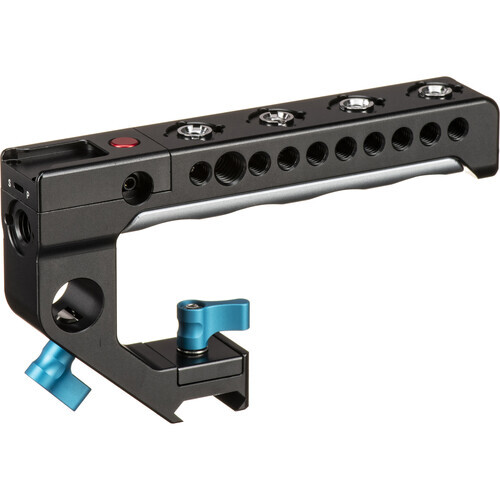

- Top Handle
- Quick Release Plate
- Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)
- Brand Sticker
- Kondor Blue Rosette Arms, Grips, and 15mm Rod Block Bundle (Raven Black)
- Dual Rod Clamp

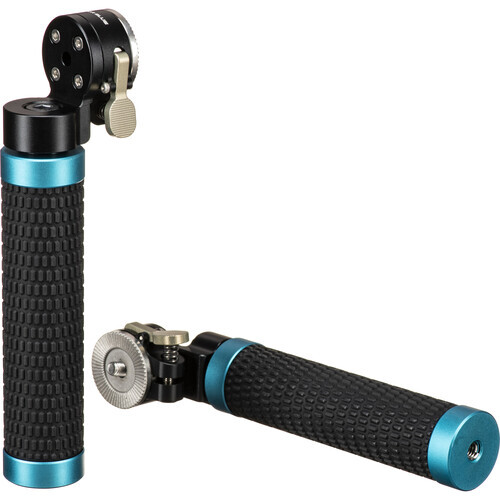

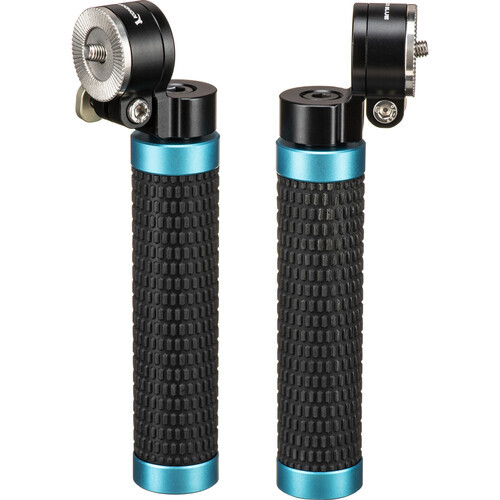

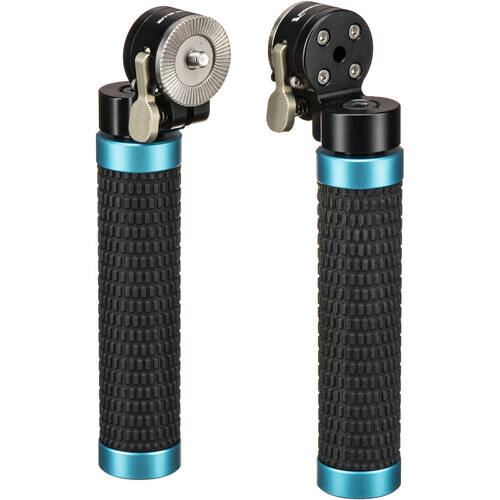

- Kondor Blue Quick Release Rosette Handgrip (Right, Raven Black)
- Kondor Blue Quick Release Rosette Handgrip (Left, Raven Black)

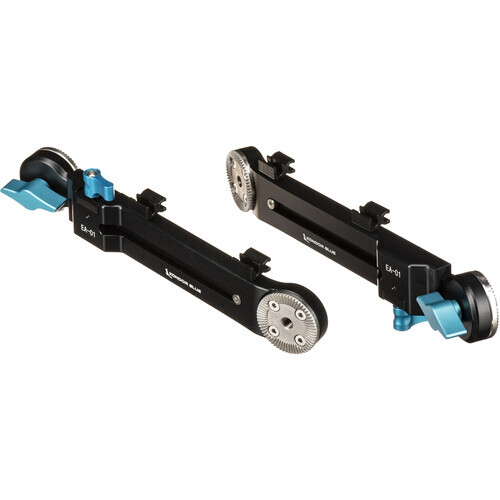

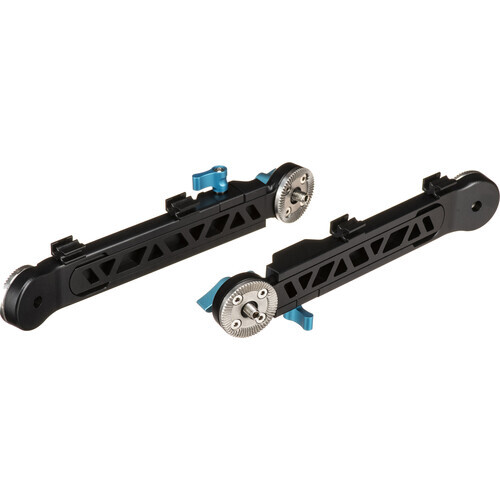

- Kondor Blue Adjustable Rosette Extension Arm (Right, Raven Black)
- Kondor Blue Adjustable Rosette Extension Arm (Left, Raven Black)
- Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Raven Black)
- Kondor Blue Aluminium Body Cap for Sony E-Mount Cameras (Black)
- Kondor Blue PPSH 15mm Rods (Pair, Black, 12")
- Kondor Blue 1.35/3.5mm DC to Sony NP-FZ100 Dummy Battery Cable
