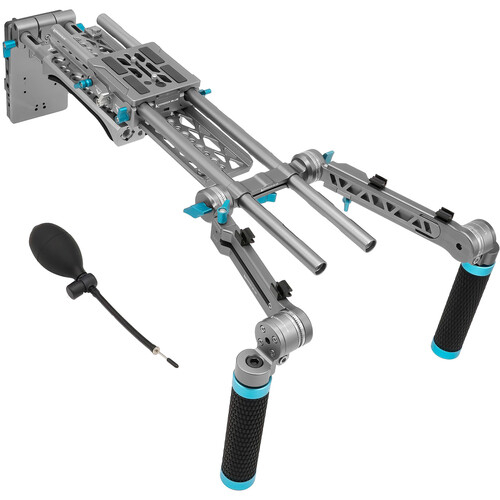

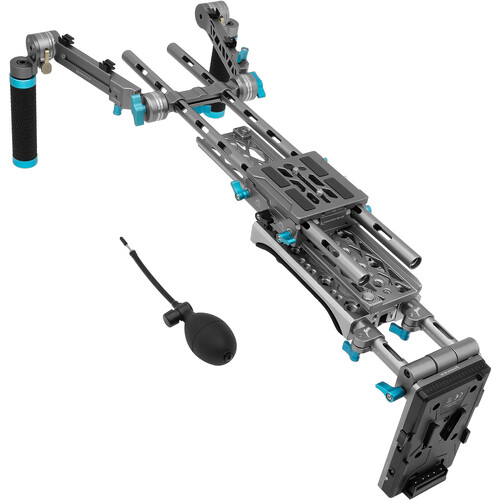

Kondor Blue Shoulder Rig Pro V Mount - Space Grey

Introducing the Space Grey Shoulder Rig Pro from Kondor Blue, crafted to provide lightweight support for your small to midsize camera rig during handheld shots. This versatile shoulder rig comprises the Shoulder Pad Air, two 18" 15mm rods, two 3" 15mm rods, a rosette dual handgrip arm bundle, a 15mm LWS bridge plate, two ARRI-style accessory pin 15mm rod clamps, a dovetail plate, and a V-mount battery plate. Engineered for comfort and stability, the Shoulder Pad Air ensures cushioned support during extended shooting sessions, while the handgrip arm bundle allows for secure handling and maneuverability. With its sleek space grey finish, this shoulder rig not only offers functionality but also adds a touch of style to your filmmaking setup. Elevate your shooting experience with the Space Grey Shoulder Rig Pro from Kondor Blue.

The rig provides a comfortable, air-cushioned shoulder pad with adjustable handgrips and 360° rotating ARRI-style rosette mounts. The bridge plate provides a quick release plate to quickly transfer your camera between handheld and tripod rigs. The 15mm rods and multiple accessory threads allow you to add various optional components such as counterweights, battery plates, a follow focus system, or a matte box.

Kondor Blue Shoulder Pad Air (Space Grey)

The space grey Kondor Blue Shoulder Pad Air is a versatile shoulder mount support pad stabiliser featuring an air-cushioned pad that allows you to accurately set air pressure using the included air pump. The unit offers twenty-two 1/4"-20 mounting threads for your accessories, giving you ample options for placement that can easily align with your particular rig setup.

The rotating NATO mount allows you to use the unit on your chest or for certain low-angle shots, and it can be adjusted using the appropriate tool built into the shoulder pad. Twelve ARRI mounts are also spread across the overall design of the unit for additional mounting options.

Pad

  • Air-cushioned pad to perfectly set the air pressure
  • Removable and washable

Mounts

  • 12 ARRI mounts for mounting on rail systems when used with the optional ARRI-style Pin to Rod Clamp (60mm spread)
  • 22 1/4"-20 threads
  • Mounts on the NATO rail for mounting on a dovetail or baseplate

NATO Rail

  • Can be bolted in place in a horizontal or vertical orientation for added security
  • An adjustment tool is built into the shoulder pad
  • NATO rail for the fine-tuning location of the shoulder pad under crowded rig components
  • Safety stops are available at each end of the NATO

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 18")

Add a pair of standard 15mm rods to your rig with this two-pack of 18" PPSH 15mm Rods from Kondor Blue. These Space grey aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 3")

Add a pair of standard 15mm rods to your rig with this two-pack of 3" PPSH 15mm Rods from Kondor Blue. These Space grey aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue Universal 15mm LWS Bridge Plate for ARRI/RED/URSA/C70/VENICE (Space Grey)

Add 15mm LWS and quick release support to your professional camera rig with this space grey Universal 15mm LWS Bridge Plate from Kondor Blue. The bridge plate is designed to work with ARRI-standard dovetail rigs and can support larger pro cameras from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE. It features an ARRI-standard dovetail base, a quick release camera plate, and a 15mm LWS rod system.

The quick release camera plate features 1/4"-20 and 3/8"-16 mounting screws, front M4 screws for a lens support, and rubber padding on top to protect the camera from scratching or twisting. The dovetail base offers 1/4"-20 and 3/8"-16 tripod mount threads. Its 15mm rod ports pass through the entire base and are secured with four locking levers, making it easy to add two sets of optional rods of different lengths through the front and rear. The bridge plate features a standard 3.3" riser height to match the camera's lens height, and optional riser plates will be available to support additional camera models.

Additional Features

  • ARRI-standard dovetail base
  • 15mm LWS rod support
  • Standard 3.3" riser lens height
  • Quick release camera plate system
  • 1/4"-20 and 3/8"-16 mounting screws
  • 1/4"-20 and 3/8"-16 tripod mount threads
  • Rubber padding on top of the plate

Compatibility

Professional cinema camera lines from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE.

Optional camera-specific riser plates are available for a variety of additional cameras from ARRI, RED, Canon, and Sony.

Kondor Blue ARRI-Style 3/8"-16 Pin to 15mm Rod Clamp (Space Grey)

Mount a single 15mm rod onto your camera cage with the space grey ARRI-Style 3/8"-16 Pin to 15mm Rod Clamp from Kondor Blue. The lightweight bracket enables you to attach a lens motor or another rod-based accessory to your camera rig without adding the weight of a baseplate and rod system. This aluminium alloy bracket requires a 3/8"-16 or 1/4"-20 bolt to secure its ARRI-style anti-twist mount.

Kondor Blue 12" ARRI Lightweight Dovetail Plate (Space Grey)

The 12" ARRI Lightweight Dovetail Plate from Kondor Blue is used with a separately available sliding bridge plate to balance your camera rig. This Space grey plate features stopper screws and safety buttons on each end to prevent the bridge plate from sliding off.

Constructed with a front-to-back symmetrical design, the dovetail plate incorporates multiple 1/4"-20 and 3/8"-16 threads for mounting on a tripod plate or other support.

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Grey)

Add professional battery power to your rig with this space grey V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

KONDOR BLUE SHOULDER PAD AIR (SPACE GREY)

PHYSICAL

Mounting
22x 1/4"-20 Threads
  12x ARRI Mounts
  1x Rotating NATO
Colour
Space Grey

KONDOR BLUE PPSH 15mm RODS (PAIR, SPACE GREY, 18")

Diameter
15 mm
Length
18" / 45.7 cm
Material
Aluminium
Thread Type
Female / Female
Thread Size
12 mm
Number of Rods
2

KONDOR BLUE PPSH 15mm RODS (PAIR, SPACE GREY, 3")

Diameter
15 mm
Length
7.6 cm
Material
Aluminium
Thread Type
Female / Female
Thread Size
12 mm
Number of Rods
2

KONDOR BLUE UNIVERSAL 15mm LWS BRIDGE PLATE FOR ARRI/RED/URSA/C70/VENICE (SPACE GREY)

MOUNTING

Rod Standard
15 mm LWS / 60 mm Spacing
Camera Mounting
1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Baseplate
  1/4"-20 Female Thread, 3/8"-16 Female Thread, ARRI Dovetail Clamp
Rod Ports
Baseplate
  2x 15 mm Rod Port

GENERAL

Support Type
Baseplate
Camera Compatibility
Universal

KONDOR BLUE ARRI-STYLE 3/8"-16 PIN TO 15mm ROD CLAMP (SPACE GREY)

Compatible Rod Diameter
15 mm
Mounting
ARRI-Style Anti-Twist
Material of Construction
Aluminium Alloy

KONDOR BLUE 12" ARRI LIGHTWEIGHT DOVETAIL PLATE (SPACE GREY)

Mounting Threads
12 x 1/4"-20
  5 x 3/8"-16
Length
30.5 cm
Weight
0.225 kg

KONDOR BLUE CINE BATTERY PLATE WITH 15mm ROD CLAMP (V-MOUNT, SPACE GREY)

POWER

Power Input
DC Jack: 15 VDC
Power Output
D-Tap: VDC
  DC Jack: 15 VDC
  DC Jack: 12 VDC
  DC Jack: 7.4 to 8.4 VDC
  DC Jack: 5 VDC

GENERAL

Camera Power Method
Connector
Inputs/Outputs
2x D-Tap
  4x 2.5 mm Coaxial
  1x DC Jack
Plate Front / Battery Mount
V-Mount
Plate Rear Mount
15 mm Rod Clamp
Number of Battery Bays
1
Material of Construction
ABS Plastic, Aluminium
Dimensions
20.3 x 12.7 x 5.1 cm
Weight
0.278 kg


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Shoulder Pad Air (Space Grey)
  • Air-Cushioned Pad
  • Air Pump
  • Kondor Blue Rosette Arms, Grips, and 15mm Rod Block Bundle (Space Grey)
  • Kondor Blue 15mm Dual-Rod Clamp with ARRI-Style Rosettes (Space Grey)
  • Kondor Blue Quick Release Rosette Handgrip (Right, Space Grey)
  • Kondor Blue Quick Release Rosette Handgrip (Left, Space Grey)
  • Kondor Blue Adjustable Rosette Extension Arm (Right, Space Grey)
  • Kondor Blue Adjustable Rosette Extension Arm (Left, Space Grey)
  • Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 18")
  • Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 3")
  • Kondor Blue Universal 15mm LWS Bridge Plate for ARRI/RED/URSA/C70/VENICE (Space Grey)
  • Quick Release Camera Plate
  • Kondor Blue ARRI-Style 3/8"-16 Pin to 15mm Rod Clamp (Space Grey)
  • Kondor Blue 12" ARRI Lightweight Dovetail Plate (Space Grey)
  • Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Grey)

Manufacturer Warranty


This product comes with a

12  month Australian warranty

from Kondor Blue Australia
