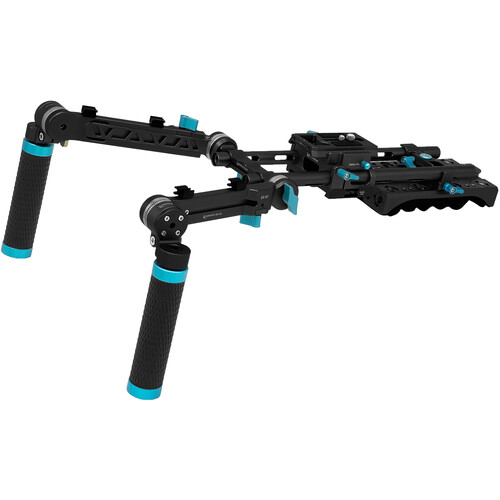

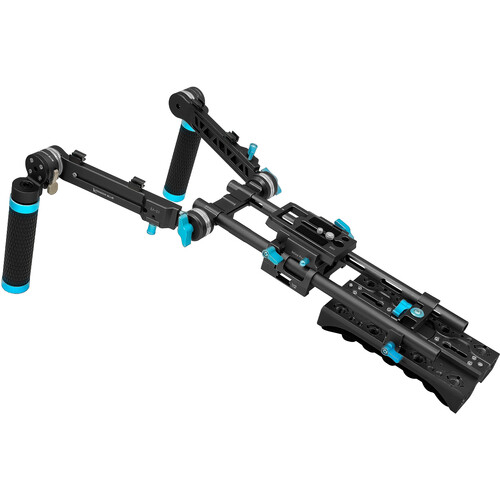

Kondor Blue Shoulder Rig - Black

Enhance your shooting experience and achieve stable handheld shots with the Raven Black Shoulder Pad Air Rig from Kondor Blue. This rig includes essential components such as the Shoulder Pad Air, two 12" 15mm rods, a rosette dual handgrip arm bundle, and a side-load baseplate with a 501-type quick release plate. Designed to support small to midsize camera rigs, this rig offers comfort and stability for extended shooting sessions. The Shoulder Pad Air provides cushioned support, while the handgrip arm bundle and baseplate ensure secure handling and easy maneuverability. Elevate your filmmaking capabilities with this comprehensive rig from Kondor Blue.

The rig provides a comfortable, air-cushioned shoulder pad with adjustable handgrips and 360° rotating ARRI-style rosette mounts. The baseplate provides a side-load plate to quickly transfer your camera between handheld and tripod rigs. The 15mm rods and multiple accessory threads allow you to add various optional components such as counterweights, battery plates, a follow focus system, or a matte box.

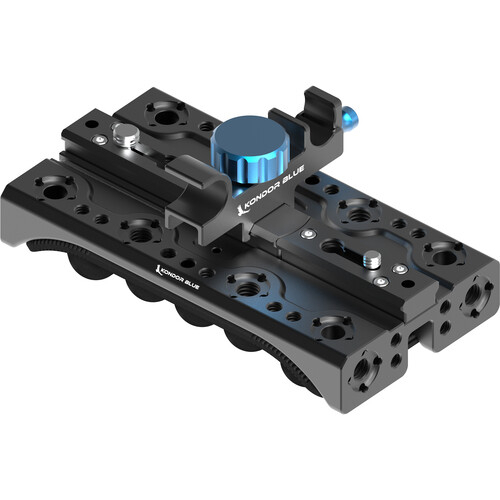

Kondor Blue Shoulder Pad Air (Raven Black)

The raven black Kondor Blue Shoulder Pad Air is a versatile shoulder mount support pad stabiliser featuring an air-cushioned pad that allows you to accurately set air pressure using the included air pump. The unit offers twenty-two 1/4"-20 mounting threads for your accessories, giving you ample options for placement that can easily align with your particular rig setup.

The rotating NATO mount allows you to use the unit on your chest or for certain low-angle shots, and it can be adjusted using the appropriate tool built into the shoulder pad. Twelve ARRI mounts are also spread across the overall design of the unit for additional mounting options.

Pad

  • Air-cushioned pad to perfectly set the air pressure
  • Removable and washable

Mounts

  • 12 ARRI mounts for mounting on rail systems when used with the optional ARRI-style Pin to Rod Clamp (60mm spread)
  • 22 1/4"-20 threads
  • Mounts on the NATO rail for mounting on a dovetail or baseplate

NATO Rail

  • Can be bolted in place in a horizontal or vertical orientation for added security
  • An adjustment tool is built into the shoulder pad
  • NATO rail for the fine-tuning location of the shoulder pad under crowded rig components
  • Safety stops are available at each end of the NATO

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)

Although featuring a fairly universal design, the raven black Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Additional Features

  • ARRI-standard dovetail
  • 15mm LWS rod support
  • Side-load camera plate system
  • Manfrotto 501 standard camera plate
  • 1/4"-20 and 3/8"-16 mounting screws
  • 1/4"-20 and 3/8"-16 tripod mount threads

Kondor Blue PPSH 15mm Rods (Pair, Black, 12")

Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These black aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

KONDOR BLUE SHOULDER PAD AIR (RAVEN BLACK)

PHYSICAL

Mounting
22x 1/4"-20 Threads
  12x ARRI Mounts
  1x Rotating NATO
Colour
Raven Black

KONDOR BLUE 15mm ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (RAVEN BLACK)

Support Type
Baseplate
Camera Compatibility
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K

MOUNTING

Rod Standard
15 mm LWS / 60 mm Spacing
Camera Mounting
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Baseplate
  1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501
Rod Ports
2x 15 mm Rod Port

GENERAL

Materials
Aluminium
Dimensions
12.7 x 10.16 x 8.89 cm
Weight
0.323 kg

KONDOR BLUE PPSH 15mm RODS (PAIR, BLACK, 12")

Diameter
15 mm
Length
30.5 cm
Material
Aluminium
Thread Type
Female / Female
Thread Size
12 mm
Number of Rods
2


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Shoulder Pad Air (Raven Black)
  • Air-Cushioned Pad
  • Air Pump
  • Kondor Blue Rosette Arms, Grips, and 15mm Rod Block Bundle (Raven Black)
  • Dual Rod Clamp
  • Kondor Blue Quick Release Rosette Handgrip (Right, Raven Black)
  • Kondor Blue Quick Release Rosette Handgrip (Left, Raven Black)
  • Kondor Blue Adjustable Rosette Extension Arm (Right, Raven Black)
  • Kondor Blue Adjustable Rosette Extension Arm (Left, Raven Black)
  • Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)
  • Brand Sticker
  • Kondor Blue PPSH 15mm Rods (Pair, Black, 12")

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Kondor Blue Australia

Want to read more about warranties?

Click here
