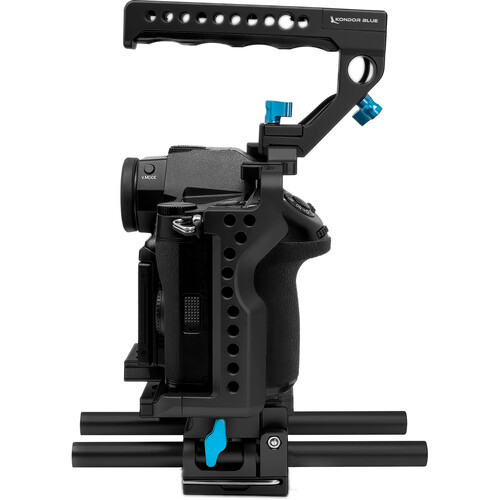

Kondor Blue Panasonic Lumix S1H Base Rig for S1/S1R/S1H - Black

The Raven Black Base Rig for Panasonic Lumix S1H from Kondor Blue is a cracker setup. It features a dedicated full camera cage, a top handle with a LANC-based start/stop button, a universal baseplate, and an 8" pair of 15mm aluminium rods. The baseplate includes a sideload 501-type camera plate and an ARRI-style dovetail, ensuring robust and versatile support. Read more below about the items in this kit.

Kondor Blue Camera Cage with Remote Trigger Handle for Panasonic Lumix S1/S1R/S1H (Raven Black)

Protect your Panasonic Lumix S1, S1R, or S1H camera and add a variety of accessories with this raven black Camera Cage with Remote Trigger Handle from Kondor Blue. This cage protects your Lumix S1, S1R, or S1H camera while maintaining access to its ports, slots, and controls.

The cage features a 501-type quick release baseplate system and a top handle with a LANC start/stop button for easy recording. This full cage incorporates NATO rails, shoe mounts, and a bubble level. Multiple 1/4"-20, 3/8"-16, and ARRI-style threads around the cage and top handle offer additional accessory mounting choices. The top handle features quick NATO-rail mounting for the top or side of the camera and easy thumb-lever fasteners, and it also features one 15mm rod port for an optional 15mm rod and accessories.

Compatibility

  • Panasonic DC-S1
  • Panasonic DC-S1R
  • Panasonic DC-S1H

Features

  • Full cage protects the camera while maintaining access to all ports, slots, and controls
  • NATO rail top handle with LANC start/stop button
  • Quick release 501 baseplate system
  • Single 15mm rod port for optional 15mm rod for an EVF, monitor, or another accessory
  • Integrated bubble level and shoe mounts
  • 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads on the cage and handle
  • 1/4"-20 and 3/8"-16 tripod threads
  • Ergonomic finger grip on the top handle
  • Cage and handle come in raven black colour

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)

Although featuring a fairly universal design, the raven black Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Kondor Blue PPSH 15mm Rods (Pair, Black, 8")

Add a pair of standard 15mm rods to your rig with this two-pack of 8" PPSH 15mm Rods from Kondor Blue. These black aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

KONDOR BLUE CAMERA CAGE WITH REMOTE TRIGGER HANDLE FOR PANASONIC LUMIX S1/S1R/S1H (RAVEN BLACK)

Support Type
Cage, Handheld Support
Grip Type
Topside Handgrip
Camera Compatibility
Panasonic DC-S1, Panasonic DC-S1H, Panasonic DC-S1R

MOUNTING

Rod Standard
15 mm Single Rod
Accessory Mounting
Cage
  Multiple 1/4"-20 Female Thread
  Multiple 3/8"-16 Female Thread
  Multiple ARRI Anti-Twist 3/8"-16 Female Thread
  Top Handle
  Multiple 1/4"-20 Female Thread
  Multiple ARRI Anti-Twist 3/8"-16 Female Thread
Camera Mounting
Manfrotto 501 Plate with 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Cage
  1/4"-20 Female Thread, 3/8"-16 Female Thread
Rod Ports
Top Handle, Front
  15 mm Rod Port
Shoe Mounting
Cage
  Cold Shoe
  Top Handle
  Cold Shoe
Rail Mounting
Cage
  NATO Rail

GENERAL

Materials
Aluminium
Dimensions
12.7 x 7.62 x 2.54 cm (Top Handle)
Weight
0.170 kg (Top Handle)

KONDOR BLUE 15mm ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (RAVEN BLACK)

Support Type
Baseplate
Camera Compatibility
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K

MOUNTING

Rod Standard
15 mm LWS / 60 mm Spacing
Camera Mounting
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Baseplate
  1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501
Rod Ports
15 mm Rod Port

GENERAL

Materials
Aluminium
Dimensions
12.7 x 10.16 x 8.89 cm
Weight
0.323 kg

KONDOR BLUE PPSH 15mm RODS (PAIR, BLACK, 8")

Diameter
1.5 cm
Length
20.3 cm
Material
Aluminium
Thread Type
Female / Female
Thread Size
12 mm
Number of Rods
2


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Camera Cage with Remote Trigger Handle for Panasonic Lumix S1/S1R/S1H (Raven Black)
  • NATO Top Handle with Start/Stop Control
  • 501 Quick Release Plate
  • Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Raven Black)
  • Brand Sticker
  • Kondor Blue PPSH 15mm Rods (Pair, Black, 8")

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Kondor Blue Australia
