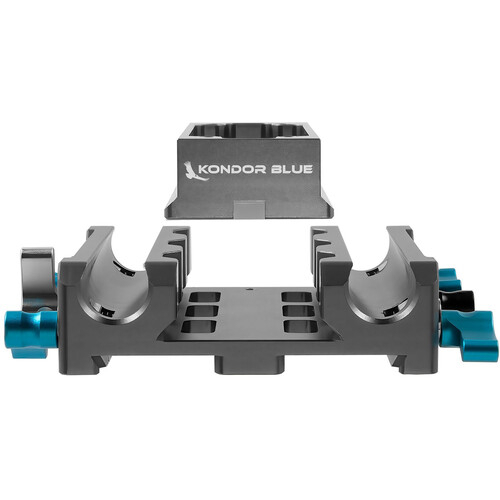

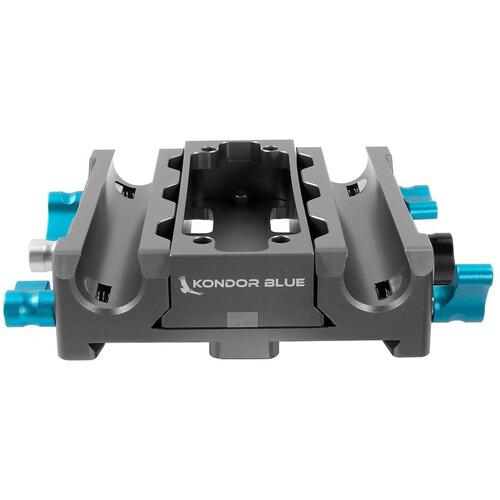

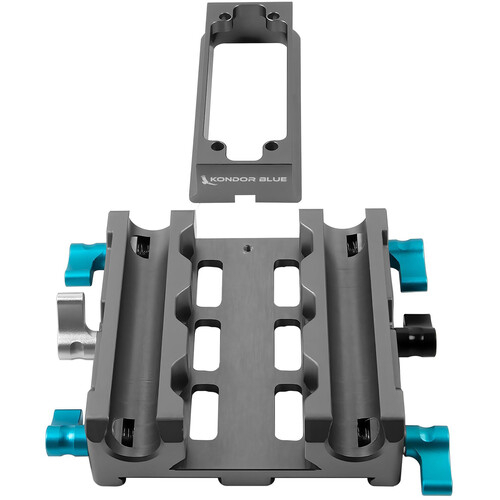

Kondor Blue LWS ARRI Bridgeplate Body Only - Space Grey

Hey, gearheads! Level up your professional camera rig with this space Grey LWS ARRI Bridge Plate from Kondor Blue. It's the real McCoy! This item includes the bridge plate only, designed to work seamlessly with ARRI-standard dovetail rigs. With capabilities to support larger pro cameras from ARRI and RED, as well as camera models like the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE, it's a true all-rounder. This bridge plate boasts an ARRI-standard dovetail base and industry-standard 15mm LWS rod clamps, providing solid 15mm LWS support to whichever optional quick release system you choose to chuck on. So, grab yours now and level up your rigging game!

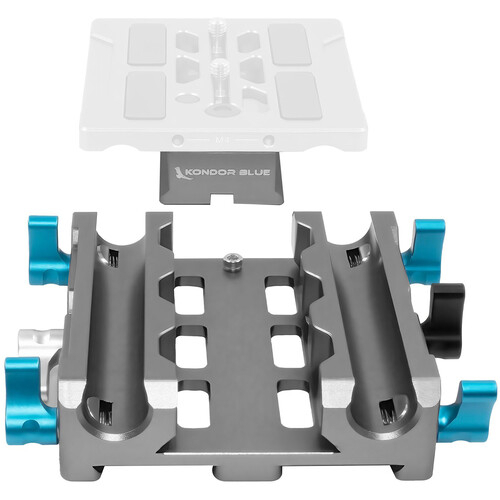

The optional quick release camera plates mount onto an internal dovetail plate for fine balance adjustment, in addition to the main bridge plate. The bridge plate offers 1/4"-20 and 3/8"-16 tripod mount threads. Its 15mm rod ports pass through the entire base and secure your rods with four locking levers, making it easy to add two sets of optional rods of different lengths through the front and rear. The bridge plate, along with the optional universal camera plate (not included), features a standard 3.3" riser height to match the camera's lens height, and optional riser plates will be available to support additional camera models.

Additional Features

  • ARRI-standard dovetail base
  • 15mm LWS rod support
  • 1/4"-20 and 3/8"-16 tripod mount threads

Compatibility

Optional camera-specific riser plates will also be available for a variety of additional cameras from ARRI, RED, Canon, and Sony

Support Type
Rod Support System
Rod Standard
15 mm LWS / 60 mm Spacing
Tripod Mounting
1/4"-20 Female Thread
  3/8"-16 Female Thread
Rod Ports
Rod Blocks, Front
  15 mm Rod Port


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue LWS ARRI Bridgeplate Body Only - Space Grey

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Kondor Blue Australia
