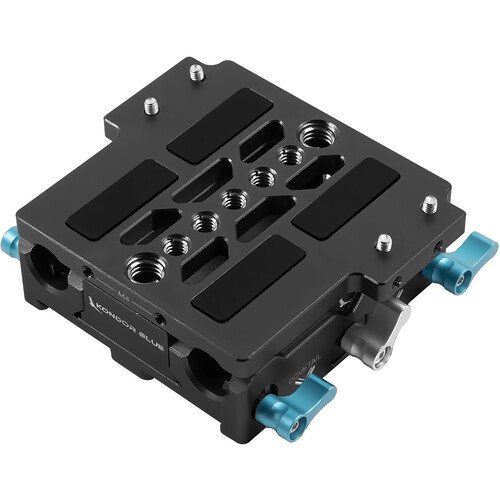

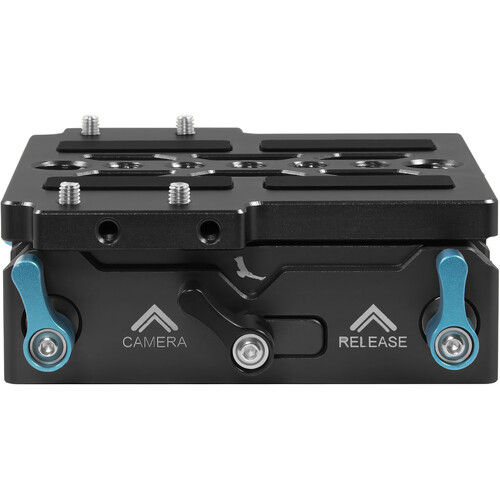

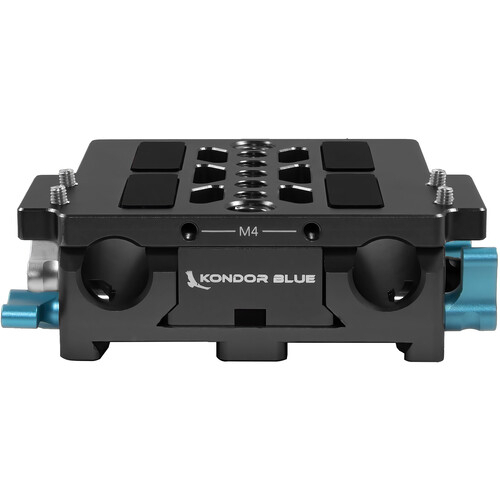

Kondor Blue LWS ARRI Bridge Plate For Cinema Cameras with Riser for ARRI Alexa Mini - Black
SKU code: 52228
- ARRI-Standard Dovetail Bridge Plate
- Quick Release Camera Plate System
- 3.3" Standard Riser Lens Height
- 15mm LWS Rod Support
- 1/4"-20 & 3/8"-16 Camera Screws
- 1/4"-20 & 3/8"-16 Tripod Threads
- M4 Front Threads
- Nonslip Rubber Pads
For store pickup please contact us
You May Also Like
The Essentials:
Miller CX8 Fluid Head with Toggle 2-Stage Alloy Tripod System
$4,795.00
1300 365 220
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Storage:
Other:
Kondor Blue LWS ARRI Bridge Plate For Cinema Cameras with Riser for ARRI Alexa Mini - Black
Enhance the functionality of your ARRI ALEXA Mini camera rig with the convenience of a quick release baseplate system using the Raven Black LWS ARRI Bridge Plate with Riser from Kondor Blue. This ARRI-style bridge plate and dedicated riser system offer 15mm LWS rod support at the standard 3.3" height, making it compatible with most professional lens accessories.
This plate system features 1/4"-20 and 3/8"-16 camera screws, front M4 screws for a lens support, nonslip rubber pads, and 1/4"-20 and 3/8"-16 tripod mount threads.
Compatibility
ARRI ALEXA Mini
Quick Release System
ARRI-standard dovetail base
Standard 3.3" riser plate height
15mm LWS Standard
15mm LWS rod support for mounting accessories
| Support Type |
Baseplate
|
| Camera Compatibility |
ARRI ALEXA Mini
|
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Camera Mounting |
1/4"-20 Male Screw, 3/8"-16 Male Screw
|
| Tripod Mounting |
Baseplate
|
| 1/4"-20 Female Thread, 3/8"-16 Female Thread, ARRI Dovetail Clamp | |
| Rod Ports |
Baseplate
|
| 15 mm Rod Port | |
| Dimensions |
10.9 x 8.9 x 3.3 cm
|
| Weight |
0.417 kg
|
* Specifications subject to change by the manufacturer without notice.
- Kondor Blue LWS ARRI Bridge Plate For Cinema Cameras with Riser for ARRI Alexa Mini - Black
- ARRI-Standard 15mm LWS Bridge Plate
- ARRI ALEXA Mini Riser Plate
Manufacturer Warranty
This product comes with a
12 month Australian warranty
from Kondor Blue Australia
