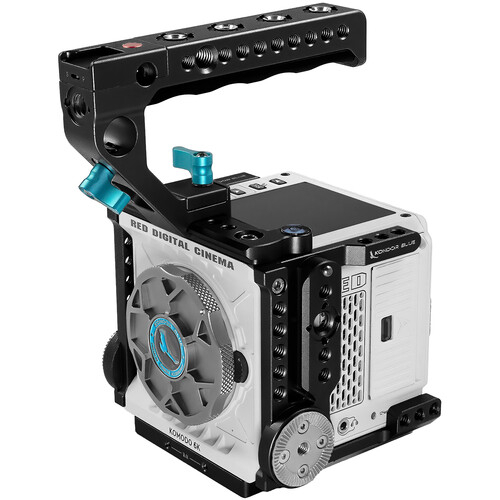

Kondor Blue Komodo Cage with Top Handle - Black

Both in black, the RED KOMODO Cage with Top Handle from Kondor Blue features a minimalist, form-fitting design and offers left and right rosettes, top and side NATO rails, standard 1/4"-20 and anti-twist 3/8"-16 threads, and 1/4"-20 and 3/8"-16 tripod mount threads. On the front, the cage features two threads for an optional lens support. The powered remote trigger top handle attaches to the top NATO rail by quick release and provides two shoe mounts, a sideways 15mm rod port, and anti-twist threads. A magnetic tool set including an Allen key stores in the base of the cage.

Kondor Blue Camera Cage for RED KOMODO (Black, Cage Only)

Add protection and a variety of accessories to your RED KOMODO 6K cinema camera with this black Camera Cage from Kondor Blue. The camera mounts onto the formfitting cage using top and bottom screws so it doesn't twist or slip, and there is rubber padding on the base to protect the camera from scratching or moving. Its open design allows you to access all the camera's ports and controls.

The cage offers ARRI-style rosettes on the left and right sides so you can add optional side handgrips or extension arms for 360° rotation. There are also 1/4"-20 threads and two integrated NATO rails on the sides with safety pins to prevent your accessories from sliding. On the top of the cage is an integrated NATO rail with multiple 1/4"-20 threads and a 3/8"-16 ARRI-style anti-twist thread for accessories such as a monitor, top handle, or microphone. On the bottom, there are 1/4"-20 and 3/8"-16 tripod mounting threads, and on the front are two threads for an optional lens support. A magnetic tool set including an Allen wrench stores in the base of the cage.

Features

Compatibility

RED KOMODO 6K cinema camera

Modular Design

Constructed with top, side, and bottom plates, and each plate can be mounted independently of the others

Top Plate

Low-profile NATO rail with bubble level, 1/4"-20 threads, and 3/8"-16 ARRI-style threads

Side Plates

Symmetrical rosettes, vertical NATO rails with safety pins, 1/4"-20 threads, and 3/8"-16 ARRI-style threads

Bottom Plate

Helicoil steel threads, magnetic tool, side wings with 1/4"-20 threads, rubber pads for camera protection, and front threads for a Kondor Blue lens support

Accessory Options

Compatible with the Kondor Blue 501 ARRI-style baseplate for an 85mm height from mounting rods

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)

This black Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the Aluminium handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

  • Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
  • Handle mounts with NATO clamp
  • LANC trigger port with start/stop button
  • Two shoe mounts and a single 15mm rod port for additional accessories
  • Made from durable Aluminium with an ergonomic grip
  • Comes in black Colour

Compatibility

  • Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
  • Cage or plate with NATO rail
  • Magic arms, handles, and 15mm rod system
  • Kondor Blue Mini Quick Release Plate
KONDOR BLUE CAMERA CAGE FOR RED KOMODO (BLACK, CAGE ONLY)

Support Type
Cage
Camera Compatibility
RED KOMODO

MOUNTING

Accessory Mounting
Cage
  Multiple 1/4"-20 Female Thread
  Multiple ARRI Anti-Twist 3/8"-16 Female Thread
Camera Mounting
1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
1/4"-20 Female Thread, 3/8"-16 Female Thread
Rosettes
Cage, Sides
  ARRI Rosette w/ M6 Female Thread
Rail Mounting
Cage, Top
  NATO Rail
  Cage, Sides
  NATO Rail

GENERAL

Weight
0.312 kg

KONDOR BLUE CAGE TOP HANDLE WITH START/STOP CAMERA CONTROL FOR SELECT CAMERAS (BLACK)

Built-In Controls
Remote Trigger

MOUNTING

Attachment Method
Attaches via Rail Clamp
Rod Standard
15 mm Single Rod
Rod Ports
15 mm Rod Port
Accessory Mounting
Multiplex 1/4"-20 Thread
  Multiplex 3/8"-16 Thread
  Multiplex ARRI Anti-Twist 3/8"-16 Thread
Shoe Mounting
Built-In Cold Shoe Slot
Rail Mounting
NATO Rail Clamp

GENERAL

Inputs/Outputs
LANC
Materials
Aluminium
Dimensions
12.7 x 7.6 x 2.5 cm
Weight
0.170 kg


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Camera Cage for RED KOMODO (Black, Cage Only)
  • Set of Attachment Screws
  • Magnetic Tool Set
  • Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)
  • 3/8"-16 to 1/4"-20 Bushing

Manufacturer Warranty


This product comes with a

12  month Australian warranty

from Kondor Blue Australia
