Kondor Blue Cine Gold Mount Battery Plate for 15mm LWS Rigs - Space Grey
Enhance the power capabilities of your rig with the space grey Gold mount Cine Battery Plate from Kondor Blue. This versatile plate is designed to provide professional-grade battery power to your setup, offering multiple DC power output ports for your camera and accessories. With its built-in 15mm rod clamp, the plate securely attaches to your rig, ensuring stability during operation. Whether you're shooting on location or in the studio, this battery plate offers a reliable power solution for your filmmaking needs.

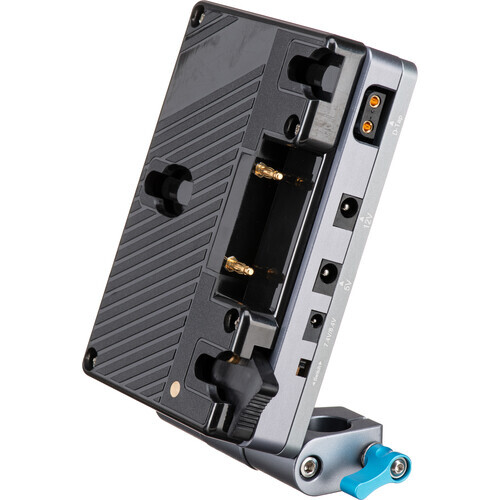

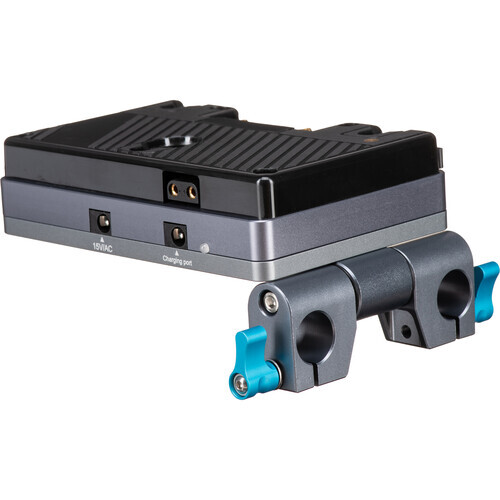

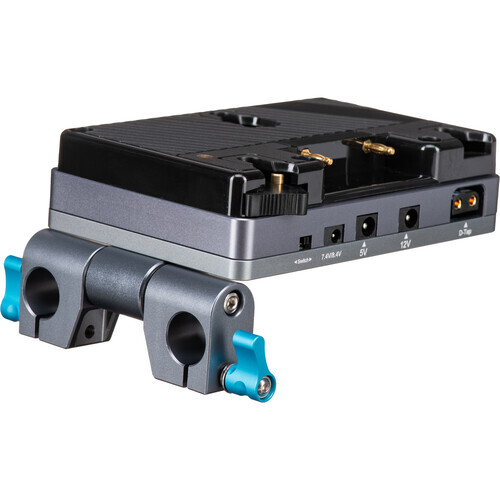

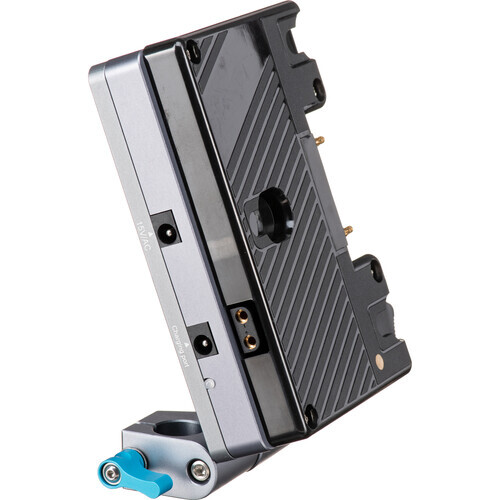

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and two D-Tap outputs. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.
Power Input |
DC Jack: 15 VDC
|
Power Output |
D-Tap: VDC
|
DC Jack: 15 VDC | |
DC Jack: 12 VDC | |
DC Jack: 7.4 to 8.4 VDC | |
DC Jack: 5 VDC | |
Camera Power Method |
Connector
|
Inputs/Outputs |
D-Tap
|
2.5 mm Coaxial | |
DC Jack | |
Plate Front / Battery Mount |
Gold Mount
|
Plate Rear Mount |
15 mm Rod Clamp
|
Number of Battery Bays |
1
|
Material of Construction |
ABS Plastic, Aluminium
|
Dimensions |
20.3 x 12.7 x 5.1 cm
|
Weight |
0.277 kg
|
* Specifications subject to change by the manufacturer without notice.
