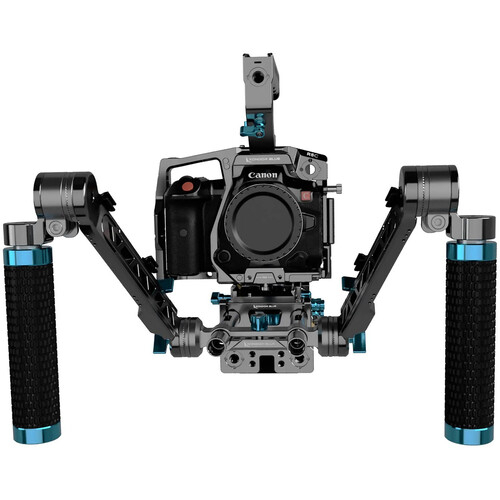

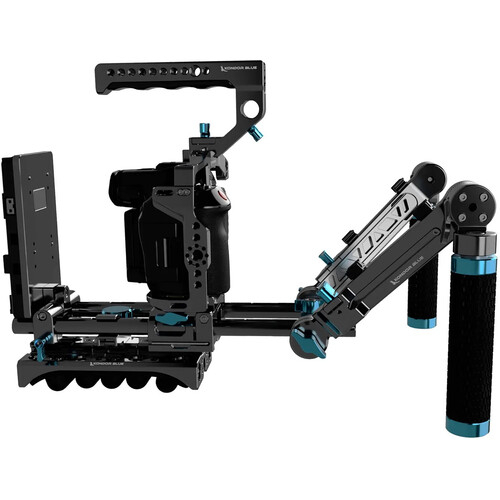

Kondor Blue Canon R5C Ultimate Rig - Space Grey

The Space Grey Kondor Blue Ultimate Rig for Canon R5 C is a versatile shoulder rig featuring a baseplate, cage, dummy battery, shoulder pad, top handle with run/stop trigger, and extension arms with handgrips. It also includes a V-mount battery plate and a 12" pair of 15mm rods. The ARRI-style baseplate offers 15mm LWS rod support and comes with a Manfrotto 501-compatible quick release plate. Read more below about the items in this kit.

Kondor Blue Cine Cage for Canon R5 C (Space Grey)

Protect your camera and add a variety of accessory mounts for video capture using the space grey Cine Cage for Canon R5 C from Kondor Blue. The cage features the correct height for use with a pro matte box, an Arca-type quick release baseplate, three NATO rails, a shoe mount, a cable clamp, and multiple 1/4"-20 and ARRI-style 3/8"-16 accessory threads. This durable cage protects your Canon R5 C camera while maintaining access to its ports, slots, and controls.

Protective Cage

Protects your camera against the most common drop angles while maintaining access to the battery, controls, and ports.

Multiple Accessory Mounts

• Incorporates multiple 1/4"-20, non-twist 3/8"-16, and M4 threads.
• Has NATO rails on the right, left, and top surfaces.
• Includes a cold shoe with a safety pin.

Cine-Style Details

•
• Does not interfere with drop-in filters.
• Incorporates a sensor plane marker for checking focus.
• Sits at the correct height for use with pro matte boxes.
• Cable clamp for HDMI and USB-C cable clamp.

Arca-Type Plate

A detachable Arca-type plate on the bottom of the cage provides compatibility with the DJI Ronin gimbal.

Magnetic Tools

Includes 2 and 4mm tools for assembling the cage with magnetic storage on the bottom of the baseplate.

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)

Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Additional Features

• ARRI-standard dovetail
• 15mm LWS rod support
• Side-load camera plate system
• Manfrotto 501 standard camera plate
• 1/4"-20 and 3/8"-16 mounting screws
• 1/4"-20 and 3/8"-16 tripod mount threads

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Grey)

Add professional battery power to your rig with this space grey V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 12")

Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These Space grey aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue Aluminium Body Cap for Canon RF Mount Cameras (Space Grey)

Protect your camera's mount and sensor with this Aluminium Body Cap for Canon RF Mount Cameras, in space grey, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera's mount, and the anodized finish protects the cap from scratches and scuffs.

Kondor Blue D-Tap to Canon LP-E6 Dummy Battery Cable (Kondor Blue, 16-36")

The D-Tap to Canon LP-E6 Dummy Battery Cable from Kondor Blue lets you power compatible devices from a brick battery with a D-Tap port or other D-Tap sources. With a stylish braided Kondor blue coiled cable, it allows you to keep a neat setup at 16" in length or extend it up to 36" to run it to the back of your camera rig to power monitors, cameras, lights, and other devices that run on LP-E6 batteries.

Additional Features

• Connect D-Tap sources to your device
• D-Tap to LP-E6 type dummy battery connectivity
• 16" contracted length
• 36" extended length
• Input voltage: 8 to 17V
• Output voltage: 8V (regulated)
• Output current: 2A

Kondor Blue Shoulder Pad Air (Space Grey)

The space grey Kondor Blue Shoulder Pad Air is a versatile shoulder mount support pad stabilizer featuring an air-cushioned pad that allows you to accurately set air pressure using the included air pump. The unit offers twenty-two 1/4"-20 mounting threads for your accessories, giving you ample options for placement that can easily align with your particular rig setup.

The rotating NATO mount allows you to use the unit on your chest or for certain low-angle shots, and it can be adjusted using the appropriate tool built into the shoulder pad. Twelve ARRI mounts are also spread across the overall design of the unit for additional mounting options.

Pad

• Air-cushioned pad to perfectly set the air pressure
• Removable and washable
• Includes an air pump

Mounts

• 12 ARRI mounts for mounting on rail systems when used with the optional ARRI-style Pin to Rod Clamp (60mm spread)
• 22 1/4"-20 threads
• Mounts on the NATO rail for mounting on a dovetail or baseplate

NATO Rail

• Can be bolted in place in a horizontal or vertical orientation for added security
• An adjustment tool is built into the shoulder pad
• NATO rail for the fine-tuning location of the shoulder pad under crowded rig components
• Safety stops are available at each end of the NATO
