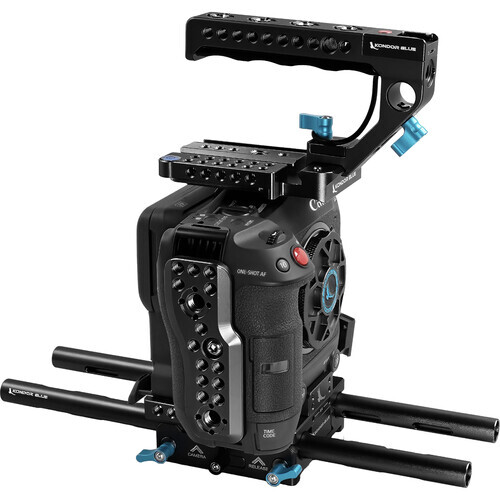

Kondor Blue Canon C70 Base Rig - Black

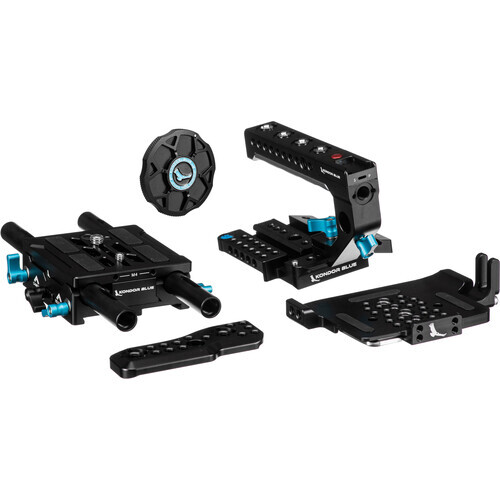

Enhance your Canon EOS C70 camera with the black Base Rig from Kondor Blue, offering protection, a top handle, a baseplate, and rods. This rig includes a modular camera cage, an ARRI-style baseplate, and a set of 15mm rods. The top trigger handle, featuring multiple mounting options and a start/stop trigger button, connects to the camera via a separately available LANC cable. Explore the details of each kit component below.

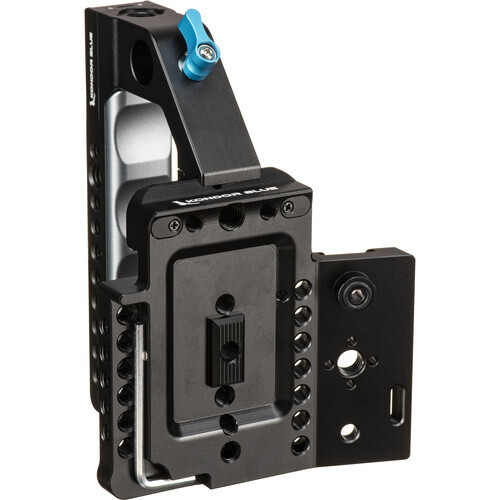

Kondor Blue Camera Cage for Canon C70 (Black)

Add protection and a variety of accessories to your Canon EOS C70 camera with this black Camera Cage from Kondor Blue. The modular camera cage features a top plate, side plate, and bottom plate, providing an open design that allows you to access all the camera's ports and controls and utilize individual plates if needed.

The cage offers an ARRI-style anti-twist thread on the side plate optional side handgrip or extension arm, it is compatible with the camera's original grip strap, and it features multiple 1/4"-20 threads. The top plate features 1/4"-20 threads, 3/8"-16 ARRI-style anti-twist mounts, two shoe mounts, a bubble level, and two integrated NATO rails. Other top plate features include a magnetic tool storage for tightening the screw mounts, and it relocates the sensor plane marker. It is compatible with the original Canon top handle or with the Kondor Blue Trigger Top Handle, and it also works with the Canon Mic Mount.

On the bottom plate, there are 1/4"-20 and 3/8"-16 steel tripod mounting threads, with 1/4"-20 threads on side wings, and one side features an HDMI cable clamp. On the front of the bottom plate are two M4 threads for an optional lens support. Paired with the optional Kondor Blue Bridge Plate, it allows for a standard 3.3" height above an optional 15mm LWS rod system. A magnetic tool stores in the bottom plate.

Features

Compatibility

Canon EOS C70 camera

Also compatible with but not limited to:

Canon original grip strap

Canon original top handle

Kondor Blue LANC top handle

Kondor Blue bridge plate

Kondor Blue lens support

Modular Design

Constructed with a top, side, and bottom plate, and each plate can be mounted independently of the others

Top Plate

Two NATO rails, two shoe mounts, bubble level, 1/4"-20 threads, and 3/8"-16 ARRI-style threads

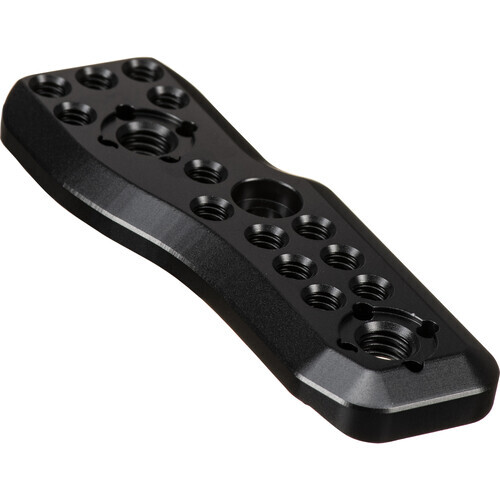

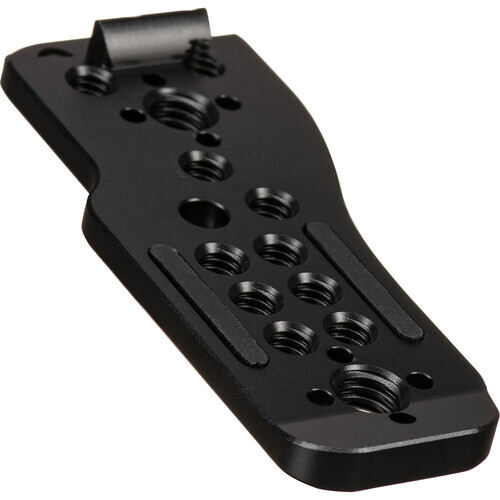

Side Plate

Multiple 1/4"-20 threads and 3/8"-16 ARRI-style accessory mounts

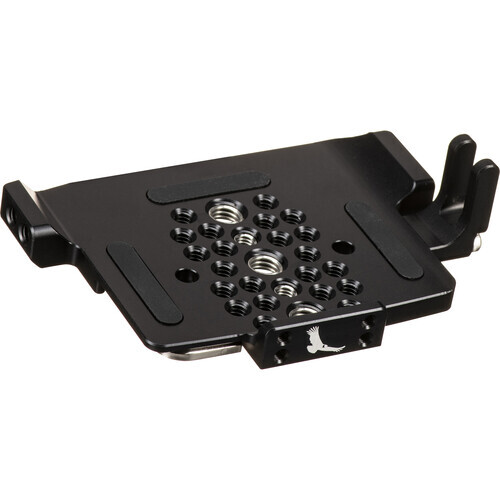

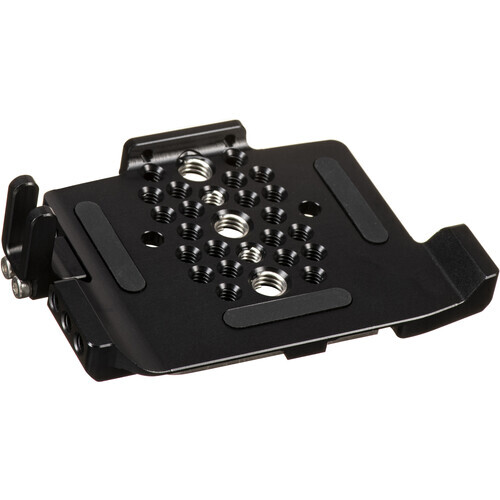

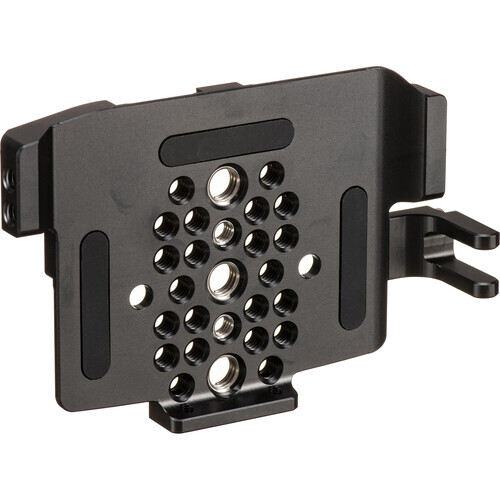

Bottom Plate

Helicoil steel threads, magnetic tool, side wings with 1/4"-20 threads, HDMI cable clamp, and front M4 threads for a Kondor Blue lens support

Accessory Options

Compatible with optional Kondor Blue bridge plate for an 85mm height from mounting rods

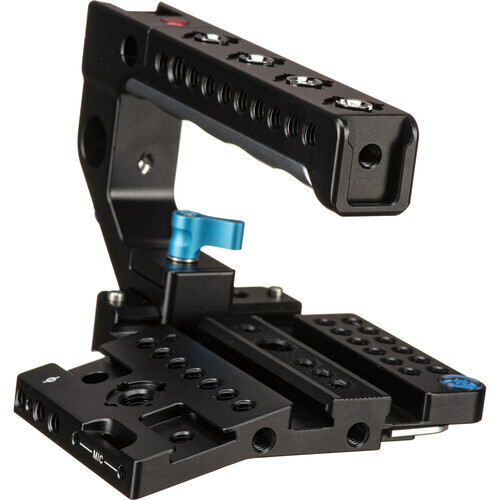

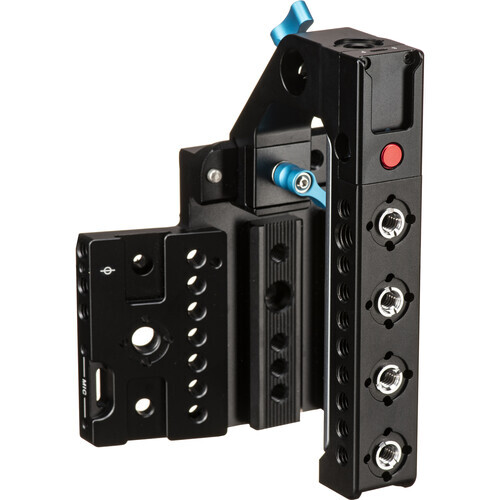

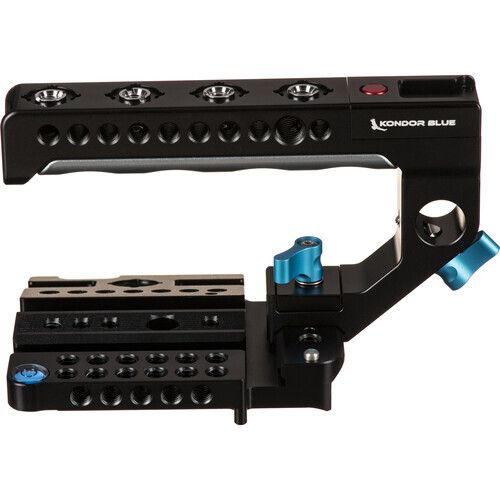

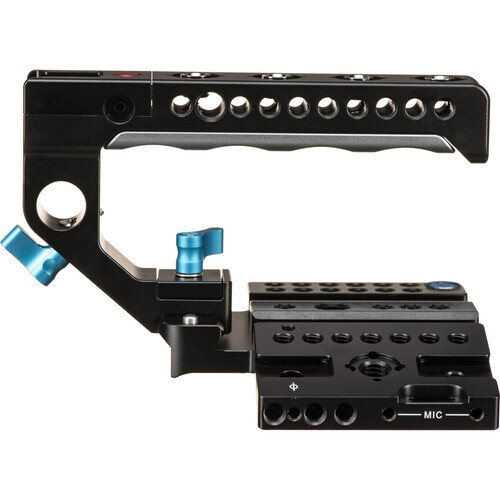

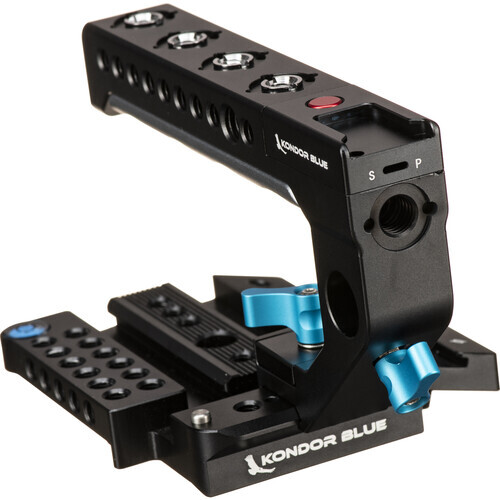

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)

This black Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the aluminium handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

• Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
• Handle mounts with NATO clamp
• LANC trigger port with start/stop button
• Two shoe mounts and a single 15mm rod port for additional accessories
• Made from durable aluminium with an ergonomic grip
• Comes in black colour

Compatibility

• Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
• Cage or plate with NATO rail
• Magic arms, handles, and 15mm rod system
• Kondor Blue Mini Quick Release Plate

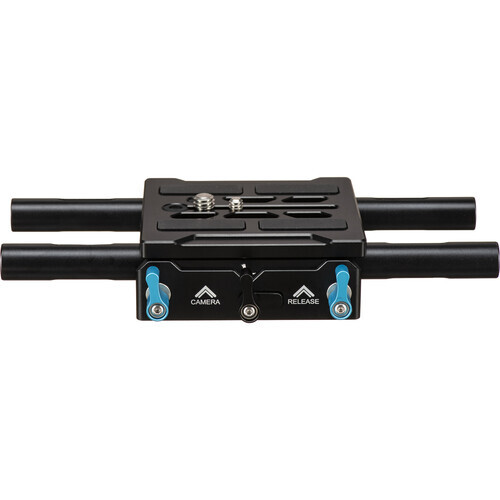

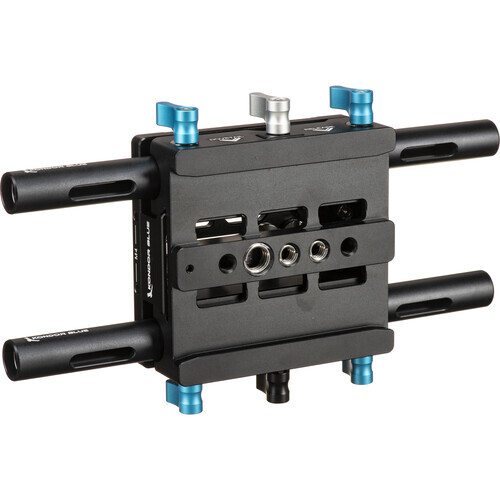

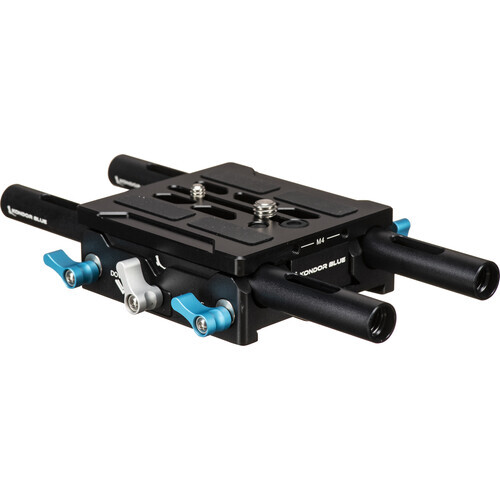

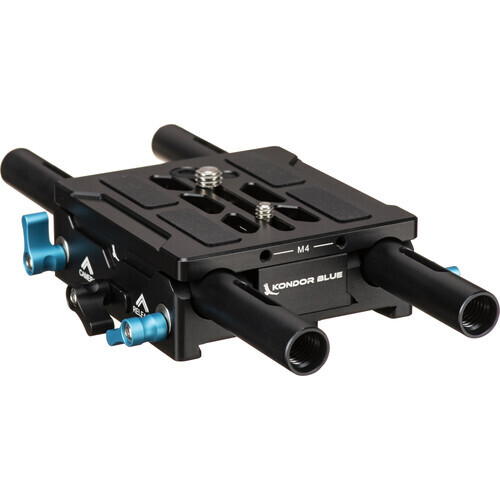

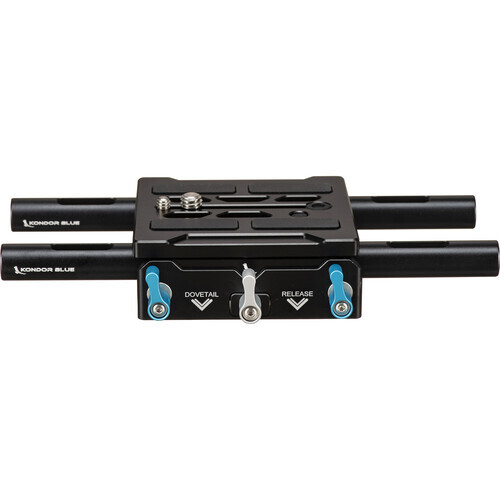

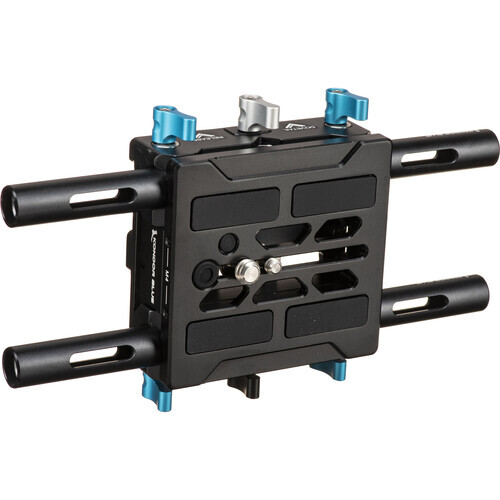

Kondor Blue Universal 15mm LWS Bridge Plate for ARRI/RED/URSA/C70/VENICE (Space Grey)

Add 15mm LWS and quick release support to your professional camera rig with this space grey Universal 15mm LWS Bridge Plate from Kondor Blue. The bridge plate is designed to work with ARRI-standard dovetail rigs and can support larger pro cameras from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE. It features an ARRI-standard dovetail base, a quick release camera plate, and a 15mm LWS rod system.

The quick release camera plate features 1/4"-20 and 3/8"-16 mounting screws, front M4 screws for a lens support, and rubber padding on top to protect the camera from scratching or twisting. The dovetail base offers 1/4"-20 and 3/8"-16 tripod mount threads. Its 15mm rod ports pass through the entire base and are secured with four locking levers, making it easy to add two sets of optional rods of different lengths through the front and rear. The bridge plate features a standard 3.3" riser height to match the camera's lens height, and optional riser plates will be available to support additional camera models.

Additional Features

• ARRI-standard dovetail base
• 15mm LWS rod support
• Standard 3.3" riser lens height
• Quick release camera plate system
• 1/4"-20 and 3/8"-16 mounting screws
• 1/4"-20 and 3/8"-16 tripod mount threads
• Rubber padding on top of the plate

Compatibility

Professional cinema camera lines from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE.

Optional camera-specific riser plates are available for a variety of additional cameras from ARRI, RED, Canon, and Sony.

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 8")

Add a pair of standard 15mm rods to your rig with this two-pack of 8" PPSH 15mm Rods from Kondor Blue. These Space grey aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

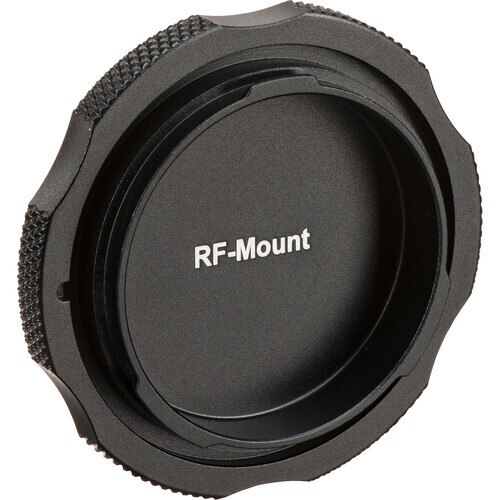

Kondor Blue Aluminium Body Cap for Canon RF Mount Cameras (Space Grey)

Protect your camera's mount and sensor with this Aluminium Body Cap for Canon RF Mount Cameras, in space grey, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera's mount, and the anodized finish protects the cap from scratches and scuffs.
