Kondor Blue Blackmagic Pocket Cinema BMPCC 4K/6K Ultimate Rig - Space Grey

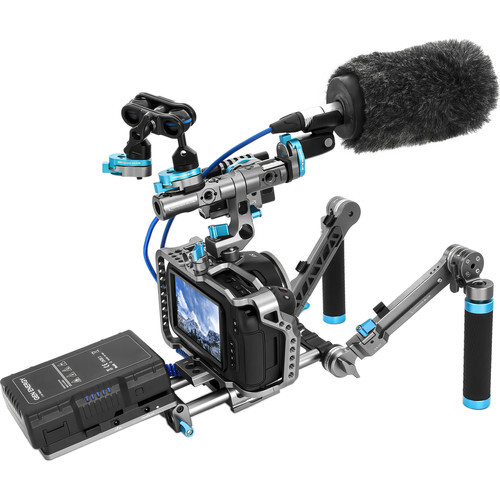

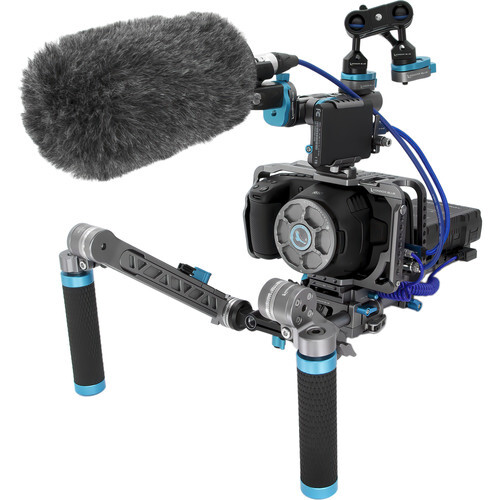

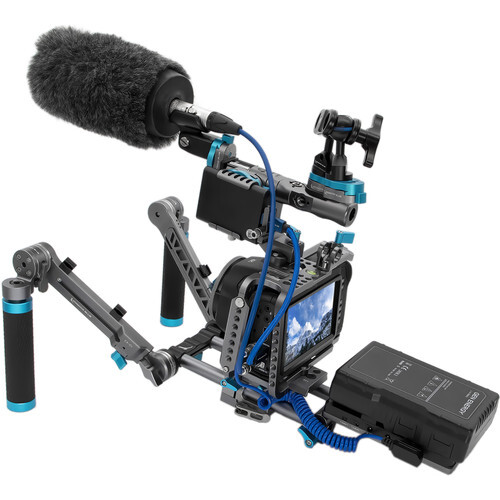

The Kondor Blue Ultimate Rig for BMPCC 4K/6K is a near-complete shoulder rig featuring a baseplate, cage, top handle, and extension arms with handgrips. It also includes a V-mount battery plate and a D-Tap cable for connecting an optional V-mount battery to your Blackmagic Pocket Cinema Camera 4K/6K. The baseplate provides 15mm LWS rod support and comes with a Manfrotto 501-compatible quick release plate. While this rig can be used as is, you can complete it with your choice of an optional shoulder pad that attaches to the bottom of the baseplate, which has 1/4"-20 and 3/8"-16 mounting threads.

The rig also comes with various adapters, clamps, and other accessories that allow for a comprehensive workflow. These include a double ball head magic arm, four mini quick release adapters (two of which can be used with the magic arm), two anti-twist plates for the mini adapters, a single 15mm rod adapter, two 8" 15mm rods, an XLR cable for an audio workflow, a USB data-transfer cable, and an aluminium holder for an optional Samsung T5 SSD that's compatible with the camera.

The top handle attaches to the cage by a NATO rail mount, and it provides a shoe mount and ARRI accessory mounts. The handgrips are adjustable at the press of a push button on each one, allowing you to set them into desired positions on the fly as your needs change. The arms that the handgrips are secured to can be individually extended between 8 and 11.5". Between all the included adapters, this rig provides quick release support for attaching a monitor, audio gear, and various other equipment.

Kondor Blue Full Cage with Top Handle for BMPCC 4K/6K (Space Grey)

The Kondor Blue Full Cage with Top Handle for BMPCC 4K/6K is a four-sided cage featuring an integrated bubble level and built-in shoe mount. The top handle attaches by quick release to a NATO rail that's screwed in on top of the cage.

The top handle provides a second shoe mount, multiple ARRI Accessory Mounts, and a single 15mm rod port for attaching a rod for an EVF, lens motor, or other accessory. Three of the Accessory Mounts come with 3/8"-16 to 1/4"-20 bushings screwed into them so that you can mount 1/4"-20 accessories on top. These bushings are removable. The levers on the top handle are spring-loaded for more efficient use.

The cage provides access to all the ports, slots, and controls of the camera. It offers 1/4"-20 and 3/8"-16 threaded holes all around for attaching accessories as well as mounting onto a tripod. It has several threads on the bottom for extra flexibility in mounting on gimbals and similar camera supports. Your camera is secured to the cage using a supplied 1/4"-20 screw that screws in from the bottom.

Additional Features

• Four-sided cage with integrated bubble level and shoe mount
• NATO rail top handle with anti-twist ARRI Accessory Mounts, 1/4"-20 bushings, shoe mount, and 15mm rod port
• 1/4"-20 and 3/8"-16 threaded holes all around
• 1/4"-20 and 3/8"-16 tripod mount threads
• Access to all ports, slots, and controls of the camera

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)

Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Additional Features

• ARRI-standard dovetail
• 15mm LWS rod support
• Side-load camera plate system
• Manfrotto 501 standard camera plate
• 1/4"-20 and 3/8"-16 mounting screws
• 1/4"-20 and 3/8"-16 tripod mount threads

Kondor Blue T5 SSD Holder with Shoe Adapter

Add a solid-state drive to your camera rig with this T5 SSD Holder with Shoe Adapter from Kondor Blue. The aluminium holder is designed to snugly fit the Samsung T5 SSD, which is secured with a thumbscrew.

The SSD holder attaches to the camera, cage, or plate with its integrated shoe adapter, or you can use the 1/4"-20 thread on the shoe adapter to attach to a cage or to the separately available Kondor Blue Mini Quick Release Plate. The included cable clamp allows you to protect your drive cable from pulling and can be removed by using a mini Allen wrench.

Compatibility

Samsung T5 SSD

Kondor Blue 5.5" Cine Magic Arm with Double Ball Heads (1/4"-20, Space Grey)

This space grey Kondor Blue 5.5" Cine Magic Arm is a support arm for monitors, viewfinders, lights, mics, and other accessories. It features a ball head-mounted 1/4"-20 screw on each end. This durable aluminium arm can be used for mounting an accessory onto your camera cage, top handle, cheese plate, or another camera rig component.

Two Ball Heads

The ball head on each end of the arm ends in a 1/4"-20 screw

Aluminium

Constructed of durable, aerospace-grade aluminium

Kondor Blue Mini Quick Release Plate

Add quick release functionality to your accessories with this Mini Quick Release Plate from Kondor Blue. The aluminium plate consists of male and female interlocking dovetail plates that connect securely and unlock using a quick release lever. The male plate features ARRI-style anti-twist pins.

Each plate attaches to your rig and your accessory using the included 1/4"-20 and 3/8"-16 screws, allowing you to remove and add an accessory quickly without screws. Two Allen wrenches and a rubber washer are also included. A separately available anti-twist spacer plate can be added to prevent your accessories from twisting while mounted.

Kondor Blue ARRI-Style Anti Twist Spacer Plate for Mini Quick Release Plate (Space Grey)

Add this space grey ARRI-Style Anti Twist Spacer Plate to your Kondor Blue Mini Quick Release Plate to prevent your accessory from twisting. The thin aluminium plate slides over the thread on the separately available quick release plate, allowing you to attach the assembly to a cage or rig with a compatible ARRI-style accessory connector.

Compatibility

Kondor Blue Mini Quick Release Plate

Kondor Blue Cage Adapter for Single 15mm Rod (Space Grey)

Add a follow focus, monitor, wireless transmitter, or other rod-mounted gear onto your camera cage, rig, or gimbal with this lightweight, space grey Cage Adapter for Single 15mm Rod from Kondor Blue. The durable aluminium rod clamp attaches to the cage with the two included 1/4"-20 mounting screws, and a blue locking thumbscrew tightens around a separately available 15mm rod. An Allen wrench is included to tighten the screws.

Kondor Blue 15mm Rod for Baseplate or Rod Support (8")

Use this single 8" long 15mm Support Rod from Kondor Blue to mount a variety of accessories onto your baseplate, shoulder rig, cage, or various camera support gear. Each end has a 12mm female thread to allow separately available extensions. The aluminium rod has a hollow interior that provides maximum durability.

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Grey)

Add professional battery power to your rig with this space grey V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

Kondor Blue Coiled D-Tap to 2-Pin Power Cable for BMPCC 6K/4K (Blue)

This blue Coiled D-Tap to 2-Pin Power Cable from Kondor Blue enables you to power your Blackmagic Cinema Camera 6K or 4K using an external battery with a D-Tap port. One end features a right-angle D-Tap connector, and the other end features a 2-pin power connector that plugs into your camera. Use this cable with separately available V-mount or Gold mount batteries and plates that provide a D-Tap output for a long-lasting power solution. The coiled cable extends from 16 to 50" in length.

Kondor Blue USB 3.1 Gen 2 Type-C to USB Type-C Cable (8.5")

Charge your devices and quickly transfer data using the USB 3.1 Gen 2 Type-C to USB Type-C Cable from Kondor Blue. With USB Type-C connectors on both ends and sporting a striking blue colour, this 8.5" USB 3.1 Gen 2 cable transfers data at up to 10 Gb/s with compatible devices such as storage drives, Blackmagic 4K/6K pocket cameras, the Z Cam E2, and the Sigma fp camera. This Thunderbolt 3 compatible cable carries up to 100W to power compatible notebooks and tablets in addition to Fast Charging smartphones and other devices that support the feature. You can also use it to connect USB Type-C monitors to your devices.

USB 3.1 Gen 2

Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.

Thunderbolt 3

Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.

Kondor Blue Mini-XLR Male to XLR Female Audio Cable for Canon C70 & BMPCC 6K/4K (Blue, 16")

Connect a microphone or audio mixer to your Canon C70 or Blackmagic Pocket Cinema Camera 6K or 4K with this blue Mini-XLR Male to XLR Female Audio Cable from Kondor Blue. This 16" long cable connects to the camera's 48V mono input with the 3-pin mini-XLR male connector, and on the other end is a standard 3-pin XLR female connector to plug into your mic or mixer.

Compatibility

Canon C70 camera

Blackmagic Pocket Cinema Camera 6K and 4K
