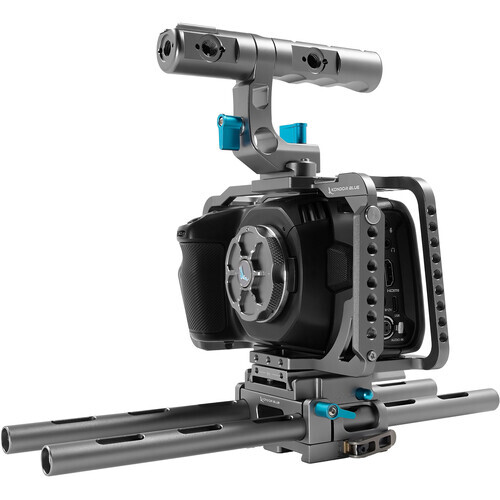

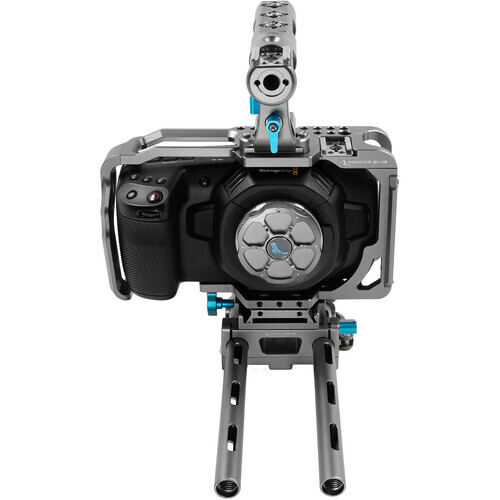

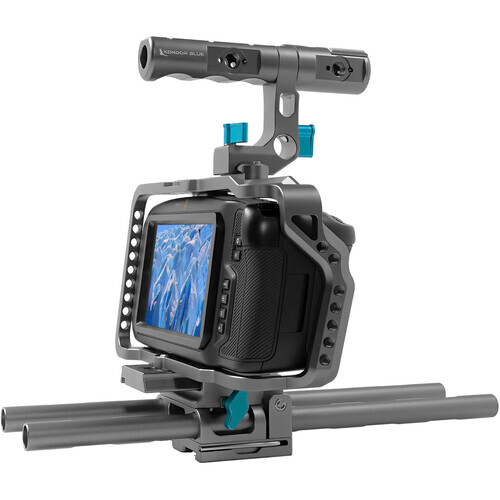

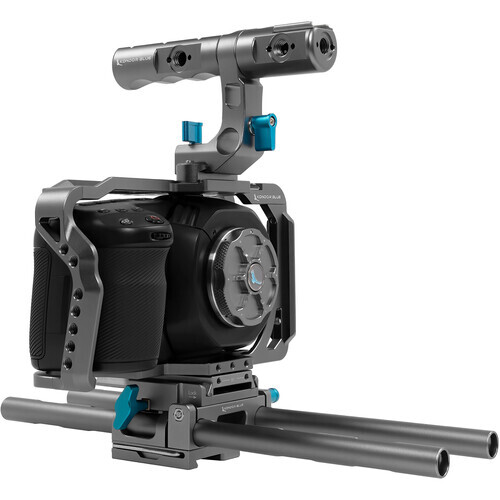

Kondor Blue Blackmagic Pocket Cinema 4K/6K Base Rig

The Space Grey Base Rig for Blackmagic Pocket Cinema Camera 4K/6K from Kondor Blue combines a dedicated full camera cage, a NATO rail-mount top handle, a 15mm LWS universal baseplate with a mini quick-release system, and an 8" pair of 15mm aluminium rods. Use this rig to support, protect, and mount accessories on your BMPCC 4K or BMPCC 6K camera rig.

Kondor Blue Full Cage with Top Handle for BMPCC 4K/6K (Space Grey)

The Kondor Blue Full Cage with Top Handle for BMPCC 4K/6K is a four-sided cage featuring an integrated bubble level and built-in shoe mount. The top handle attaches by quick release to a NATO rail that's screwed in on top of the cage.

The top handle provides a second shoe mount, multiple ARRI Accessory Mounts, and a single 15mm rod port for attaching a rod for an EVF, lens motor, or other accessory. Three of the Accessory Mounts come with 3/8"-16 to 1/4"-20 bushings screwed into them so that you can mount 1/4"-20 accessories on top. These bushings are removable. The levers on the top handle are spring-loaded for more efficient use.

The cage provides access to all the ports, slots, and controls of the camera. It offers 1/4"-20 and 3/8"-16 threaded holes all around for attaching accessories as well as mounting onto a tripod. It has several threads on the bottom for extra flexibility in mounting on gimbals and similar camera supports. Your camera is secured to the cage using a supplied 1/4"-20 screw that screws in from the bottom.

Additional Features

  • Four-sided cage with integrated bubble level and shoe mount
  • NATO rail top handle with anti-twist ARRI Accessory Mounts, 1/4"-20 bushings, shoe mount, and 15mm rod port
  • 1/4"-20 and 3/8"-16 threaded holes all around
  • 1/4"-20 and 3/8"-16 tripod mount threads
  • Access to all ports, slots, and controls of the camera

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)

Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Additional Features

  • ARRI-standard dovetail
  • 15mm LWS rod support
  • Side-load camera plate system
  • Manfrotto 501 standard camera plate
  • 1/4"-20 and 3/8"-16 mounting screws
  • 1/4"-20 and 3/8"-16 tripod mount threads

Kondor Blue 15mm Rod for Baseplate or Rod Support (8")

Use this single 8" long 15mm Support Rod from Kondor Blue to mount a variety of accessories onto your baseplate, shoulder rig, cage, or various camera support gear. Each end has a 12mm female thread to allow separately available extensions. The aluminium rod has a hollow interior that provides maximum durability.

KONDOR BLUE FULL CAGE WITH TOP HANDLE FOR BMPCC 4K/6K (SPACE GREY)

Mount Type
Cage:
  1/4"-20 Female
  3/8"-16 Female
  Shoe Mount
  Top Handle:
  ARRI Accessory Mounts (3/8"-16 to 1/4"-20 Bushing Inserted in Three of These)
  15 mm Rod Port
  Shoe Mount
Tripod Mount Type
1/4"-20 and 3/8"-16
Dimensions
19.7 x 10.8 x 4.4 cm
Weight
0.476 kg

KONDOR BLUE 15MM ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (SPACE GREY)

Support Type
Baseplate
Camera Compatibility
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K

MOUNTING

Rod Standard
15 mm LWS / 60 mm Spacing
Camera Mounting
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Baseplate
  1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501
Rod Ports
15 mm Rod Port

GENERAL

Materials
Aluminium
Dimensions
12.7 x 10.16 x 8.89 cm
Weight
0.323 kg

KONDOR BLUE 15MM ROD FOR BASEPLATE OR ROD SUPPORT (8")

Diameter
15 mm
Length
20.32 cm
Material
Aluminium
Thread Type
Female / Female
Thread Size
12 mm
Number of Rods
1
Weight
0.042 kg


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Full Cage with Top Handle for BMPCC 4K/6K (Space Grey)
  • 1/4"-20 Screw
  • Flat Head Tool
  • Allen Key
  • Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)
  • Brand Sticker
  • Kondor Blue 15mm Rod for Baseplate or Rod Support (8")
