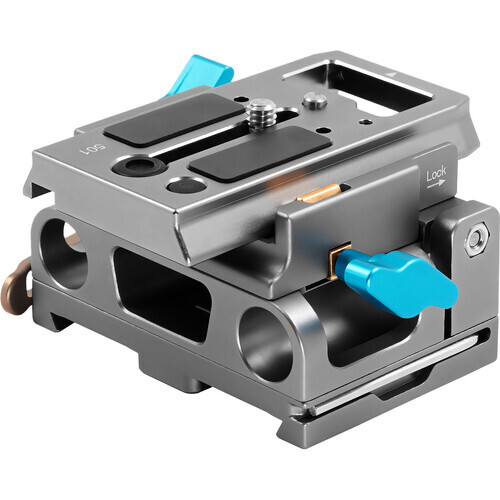

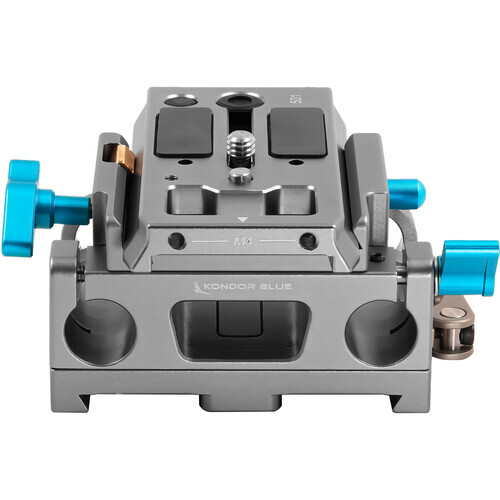

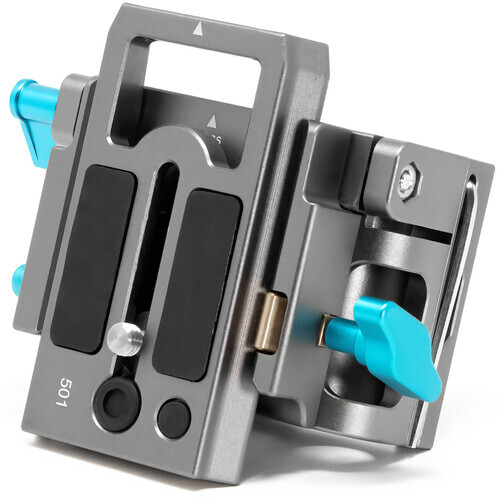

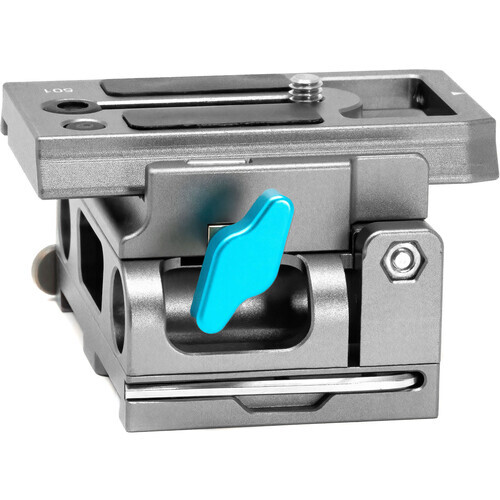

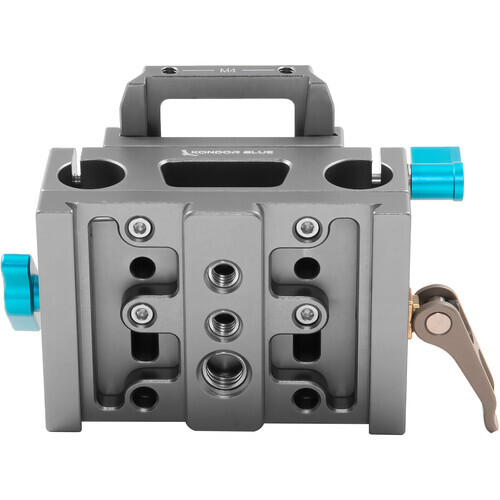

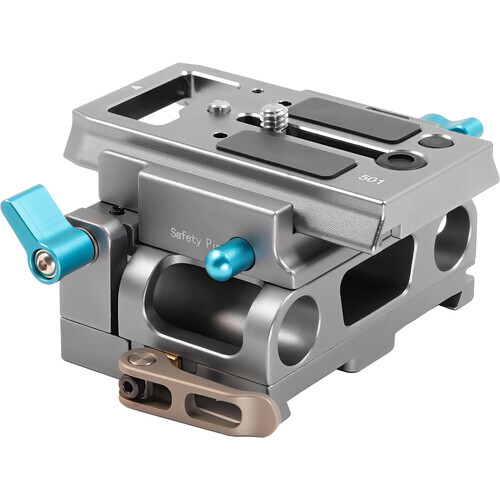

Kondor Blue 15mm LWS Arri/501 Side Loading Baseplate for Red Komodo, BMPCC & Mirrorless - Space Grey
Despite its universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is specifically engineered for compatibility with Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. Boasting an ARRI-standard dovetail and 15mm LWS rod support, this baseplate seamlessly integrates into your rig setup. Moreover, the baseplate is equipped with a side-load camera plate system, enabling effortless camera mounting from the top without the need for frontal sliding. With this baseplate, you can enhance the versatility and efficiency of your camera rigging process, ensuring smooth and reliable performance throughout your shoots.
A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.
| Support Type |
Baseplate
|
| Camera Compatibility |
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K
|
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Camera Mounting |
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
|
| Tripod Mounting |
Baseplate
|
| 1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501 | |
| Rod Ports |
15 mm Rod Port
|
| Materials |
Aluminium
|
| Dimensions |
12.7 x 10.16 x 8.89 cm
|
| Weight |
0.323 kg
|
* Specifications subject to change by the manufacturer without notice.
- Kondor Blue 15mm LWS Arri/501 Side Loading Baseplate for Red Komodo, BMPCC & Mirrorless - Space Grey
- Brand Sticker
Manufacturer Warranty
This product comes with a
12 month Australian warranty
from Kondor Blue Australia
