Vertical Battery Base for Insta360 ONE R/RS

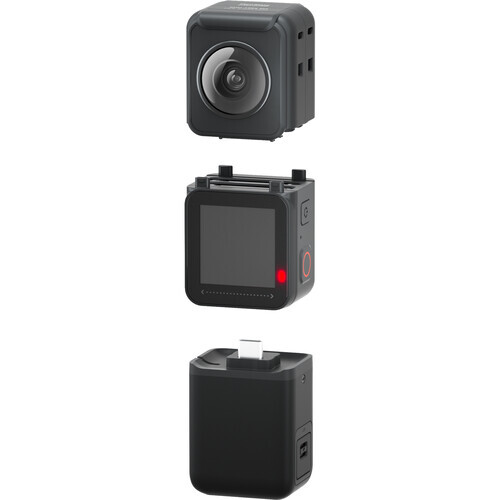

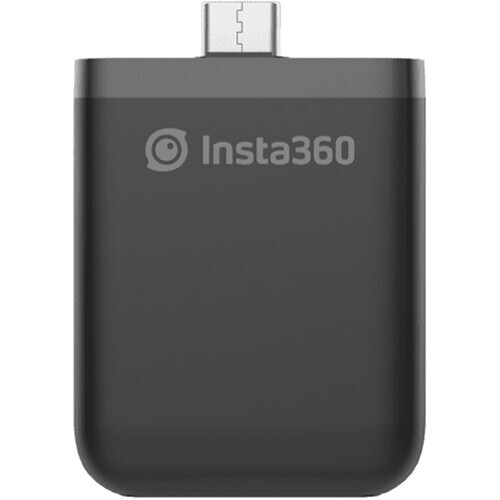

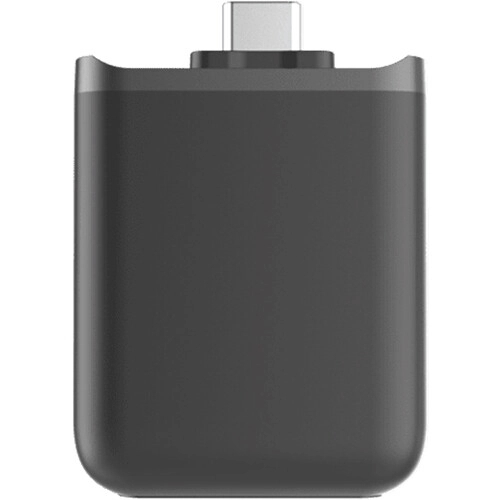

The Insta360 ONE R/RS Vertical Battery Base allows you to set up your ONE R or ONE RS camera vertically for a range of applications, such as when mounted on the optional ONE R Drone Mount. The Core module attaches to the top of the base, and the lens module is then placed on top of the Core. All lens modules are compatible, including the 360 Mod, 1" Mod and 4K Mod. The base and camera can also be installed in the Vertical Bumper Case, a separate exterior case that holds the entire setup securely. The Vertical Battery Base has a 1/4"-20 tripod mount at the bottom, and the optional bumper case provides access to the threaded mount. If you want to use the Vertical Battery Base for underwater activities, you'll need to set it up with the 360 Mod inside the optional ONE R Dive Case for Dual-Lens 360 Mod, a vertical dive case designed for this purpose.

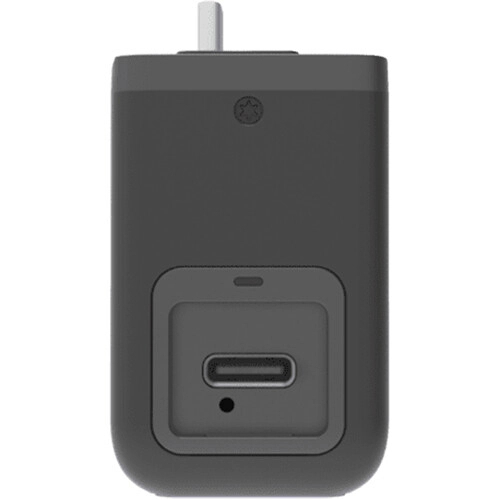

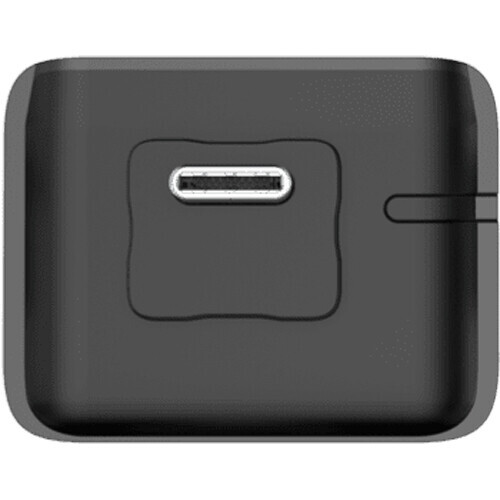

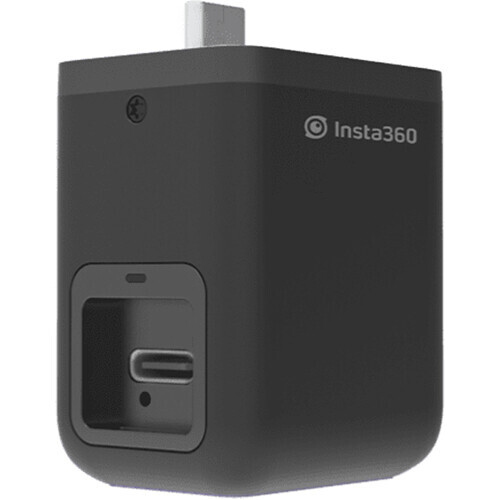

The Vertical Battery Base has a USB-C port on top for connecting the Core module, and it features a USB-C charging port with a charging indicator light on the side. The side port is for charging only and does not support data transfers or the ONE R mic adapter.

INSTA360 CINORHM/A

Voltage 3.85 V
Charging Voltage 4.4 V
Capacity 1190 mAh
Watt Hours 4.58 Wh
Connections 1 x USB-C Module Connector
  1 x USB-C Charging Port

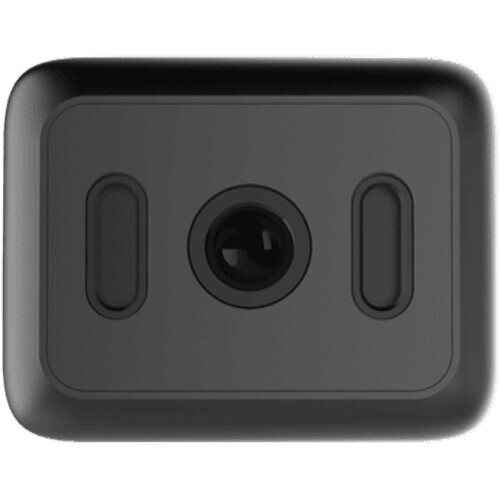

Mount Type 1/4"-20 Female
Charge Indicator Yes


* Specifications subject to change by the manufacturer without notice

  • Insta360 ONE R/RS Vertical Battery Base
