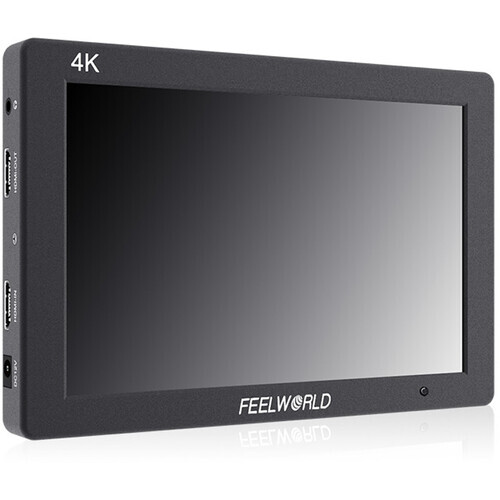

Full HD On-Camera Viewing

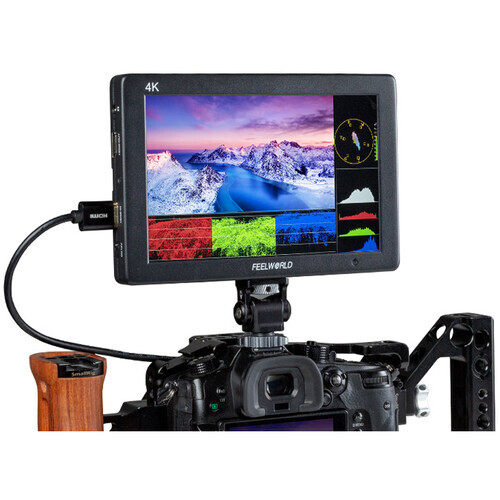

Take your on-camera viewing experience to the next level with the FeelWorld T7 Plus. This lightweight 7" IPS monitor features simultaneous vectorscope, histogram, and audio phase and level monitoring, as well as 4K HDMI in and out. It uses the Rec. 709 colour standard with colour calibration for accurate colour reproduction and vivid image viewing. Plus, the 1/4"-20 threads on the top and bottom of the monitor let you mount it on the included mini hot shoe mount adapter and secure it to the top of your camera.

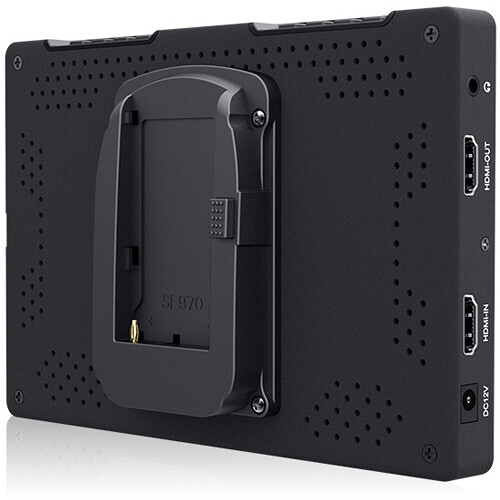

The monitor boasts 1200:1 contrast and 450 cd/m² brightness, as well as an F970 battery plate on the back panel. The operating system of the T7 Plus includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. Up to 32 custom 3D LUTs can be loaded into the interface using the USB adapter for intuitive colour calibration. Further customization can be achieved by programming the onboard button controls as shortcuts to these various modes for adaptability on location.

Features

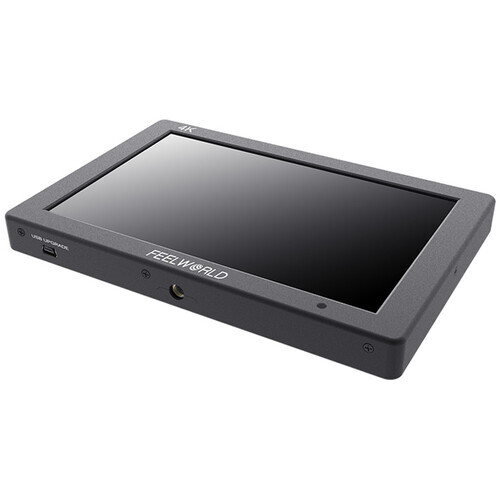

• Ultrathin 18mm thickness
• Full HD 1920 x 1200 resolution
• 323 ppi pixel density prevents the eye from defining individual pixels
• Durable, lightweight aluminum alloy housing
• 160° viewing angle ensures clear image as operator shifts position

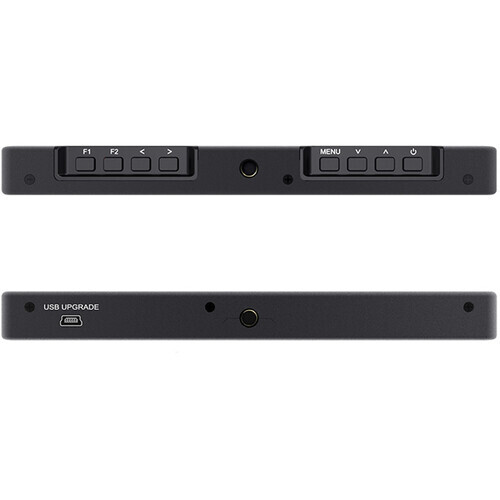

• Easy button-based operation with custom shortcut keys

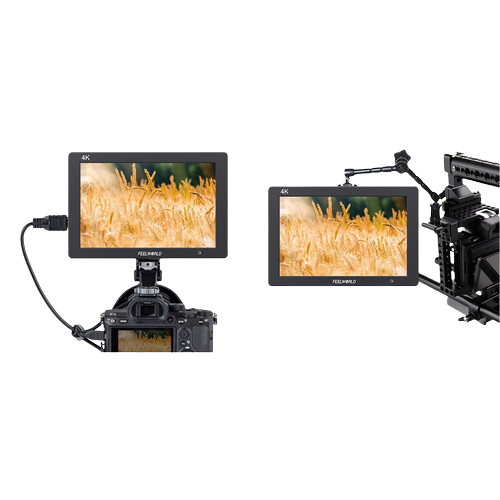

• Mini hot shoe adapter with adjustable 180° viewing angle and 360° rotation at the base
• Sunshade for increased visibility outdoors

Custom 3D LUTs

• Import up to 32 files by connecting with USB adapter cable and interface

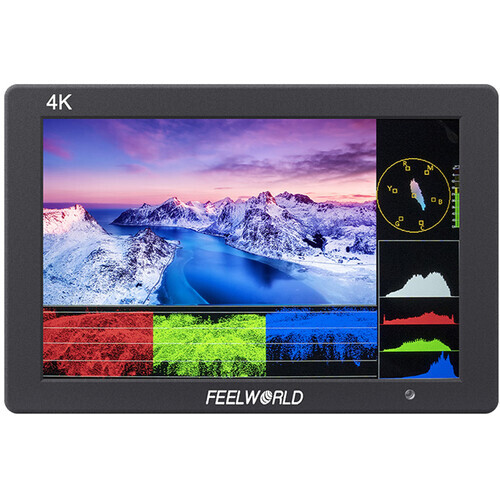

Waveform Monitoring

• Choose from RGB, YUV, and Y parade
• Vectorscope, histogram, audio, and level displays
• Shows all technical aspects of video and audio at once while monitoring visual
• Functions can be opened separately or all together

Video Assist Functions

• Anamorphic mode (1.3x, 2.0x, 2.0x mag, user-defined adjustment: 1.20X~2.00X)
• Center marker
• Check field (red/green/blue/mono)
• Colour temperature
• False colour
• Histogram (RGB1, Y, RGB2)
• Image flip
• Image freeze
• Nine grid
• Peaking focus assist (Colour switch capabilities)
• Pixel to pixel
• Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
• Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Scan mode (under, over)
• Waveform (RGB, Y, YUV)
• Zebra
• Zoom (4x, 9x, 16x)
