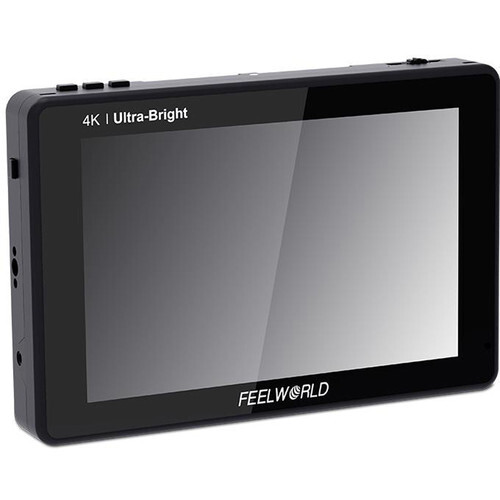

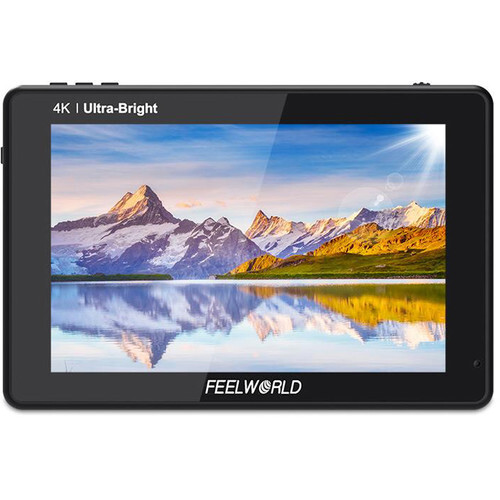

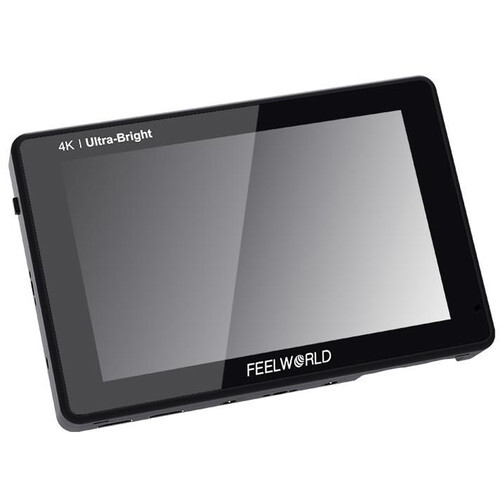

FeelWorld LUT7S 7" 3D LUT 4K HDMI and SDI Monitor offers a 323 PPI (pixels-per-inch) IPS LCD panel. The LCD panel boast a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. It equips filmmakers with the benefits of a large on-camera screen without making the camera setting up troublesome. Its bright touch screen, professional software tools, and convenient mounting add instant production value for mirrorless and DSLR shooters.

FeelWorld LUT7S 7inch 3D LUT 4K HDMI and SDI Monitor - Image1

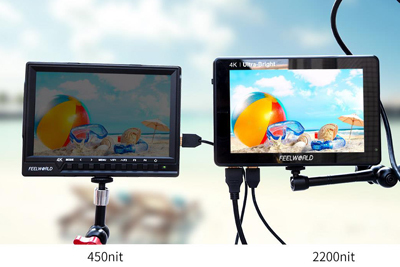

2200nit Super Bright Screen

The fully adjustable 2200nits screen is incredibly bright, making it perfect for shooting indoors or out. The high bright 2200nits screen is at almost 4 times the brightness of conventional field monitors, allowing you to shoot outdoors without reflections washing out your image.

FeelWorld LUT7S 7inch 3D LUT 4K HDMI and SDI Monitor - Image2

Professional Colour Calibration, Accurate Colour Reproduction and Accurate Waveform Monitoring

It supports the professional Rec.709 HD colour standard as well as ITU standards, which delivers extremely natural and accurate colour reproduction. With advanced image processing technology, the image is clear, and users can accurately evaluate the quality of various input video signals. You can also select broadcast accurate waveform monitoring option to check all technical information about your video and audio signals.

FeelWorld LUT7S 7inch 3D LUT 4K HDMI and SDI Monitor - Image3

7” LCD, Full HD 1920x1200

The LUT7S delivers sharp and precise field monitoring and image analysis during daytime recording. It features 1200:1 contrast ratio, light-emitting diode (LED) backlighting with a brightness of 2200 nits and sRGB / Rec.709 Colour Gamut. With wide 160º viewing angle and 323 pixels per inch (PPI) resolution, you can easily shoot in bright daylight.

FeelWorld LUT7S 7inch 3D LUT 4K HDMI and SDI Monitor - Image4

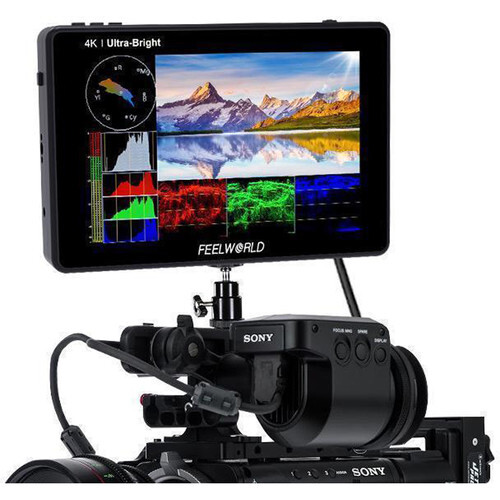

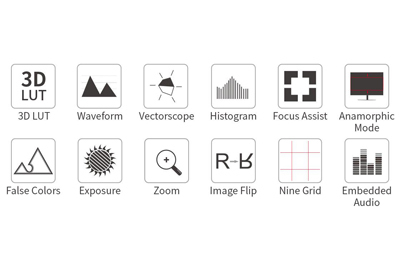

Simple OS, Sophisticated Shots

LUT7s is packed with high-end monitoring features in a small, lightweight package that can be connected to virtually any camera. Besides, its Video OS includes essential tools for videographers such as focus, framing & exposure tools along with a flexible 3D LUT load tool, HDR monitoring and options for anamorphic de-squeeze monitoring.

FeelWorld LUT7S 7inch 3D LUT 4K HDMI and SDI Monitor - Image5

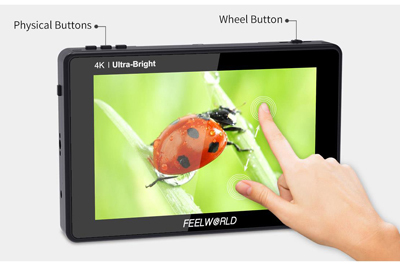

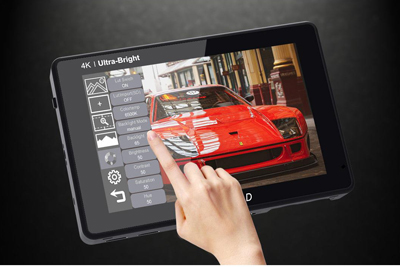

Intuitive Controls and Menus with Interactive Touchscreen

The monitor features an interactive touchscreen, allowing you to use simple tap and swipe gestures to change function settings. However, you have the option to turn it off whenever is required through menu setting function. Besides, you are able to browse the menu and set functions with physical buttons at the top of the monitor. LUT7S's key distribution design is simple and easy to operate.

FeelWorld LUT7S 7inch 3D LUT 4K HDMI and SDI Monitor - Image6

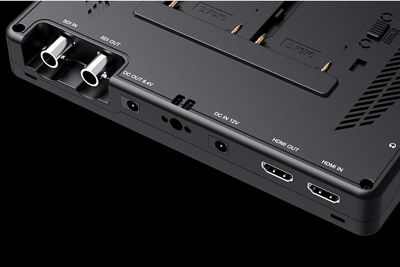

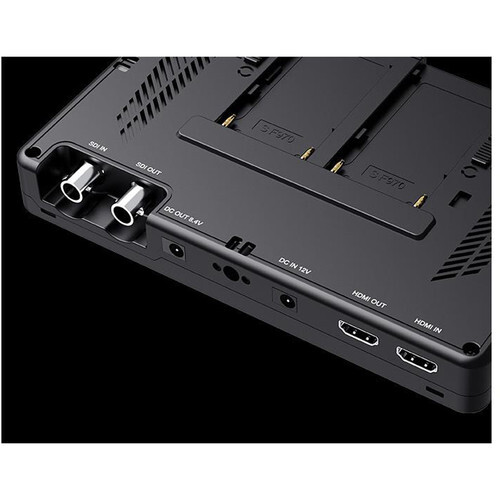

4K HDMI Input & Loop Output

The LUT7S has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It can display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

FeelWorld LUT7S 7inch 3D LUT 4K HDMI and SDI Monitor - Image7

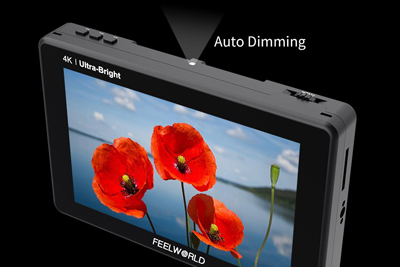

Light Sensor for Auto Dimming

And LUT7S has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.

FeelWorld LUT7S 7inch 3D LUT 4K HDMI and SDI Monitor - Image8

Display Spec.



Model

LUT7S

Screen Size

7" IPS

Resolution

1920x1200 pixels

Pixel Pitch

0.07875 (H) x 0.07875 (W) (mm)

Aspect Ratio

16:10

Brightness

2200cd/m² (Light Sensor)

Contrast Ratio

1200:1

Backlight

LED

Viewing Angle

80°/80°(L/R) 80°/80°(U/D)

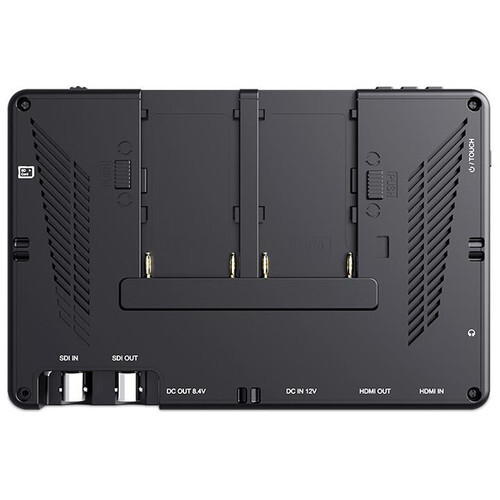

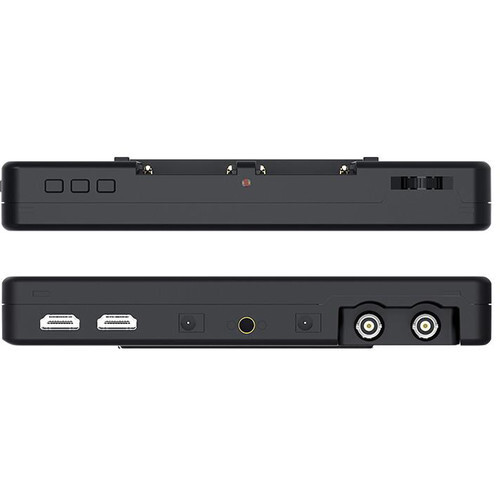

Input



1 X BNC

3G-SDI

1 X HDMI

HDMI

Output



1 X BNC

3G-SDI

1 X HDMI

HDMI

1 X DC

Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio



Audio

3.5mm Stereo Headphone

SDI Support Format

720p (60/59.94/50/30/29.97/25/24/23.98)

1080i(60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)



HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)



General



Input Voltage

DC7~24V

Power Consumption

=18W

Working Temperature

-20°C~50°C

Storage Temperature

-30°C~60°C

Install Way

1/4"-20 Thread Socket (Left, Right, Bottom)

Battery Plate

Dual F970 Battery Plate

Unit Size

190Lx126Hx27D (mm)

Unit Weight

460g

Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.



Advanced Features

* Support 3D LUT Log to Rec.709, user 3D LUT Upload

* Support Touch Menu

* Parade (RGB, YUV, Y)

* All Waves

* Vector

* RGB Histogram

* Brightness Histogram

* Embedded Audio

* Peaking Focus (red, green, blue, white, yellow five peaking colours optional; 1~10 peaking level adjustable)

* False Colours

* Zebra Exposure (1%~100% adjustable)

* Check Field (Red, Green, Blue, Gray)

* Scan Mode (Under Scan, Over Scan)

* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)

* Image Flip (H, V, H/V)

* Image Freeze

* Center Marker

* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)

* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)

* Marker Colour (red, green, blue, white, black, yellow)

* Colour Temperature Adjustment

* Nine Grid

* Zoom (100%~300%)

* Aspect Ratio

* Pixel to Pixel





* Specifications subject to change by the manufacturer without notice

1x FeelWorld LUT7S

1× Mini/ Micro HDMI to HDMI Cable

1× Tilt Arm

1× Manual
