FeelWorld LUT6S 6" 4K HDMI/3G-SDI Touchscreen Monitor
SKU code: 47646
- Outdoor Visible 2600 cd/m² Brightness
- Compact and Slim with 1080p Touchscreen
- 4K HDMI/3G-SDI Input and Loop Output
- Built-In HDR and DeLog 3D LUTs
- 3D LUT Upload via SD Card Slot
- Integrated L-Series Battery Plate
- Auto Heat Dissipation Fan
- Auxiliary DC Output for Powering Cameras
- Scopes, Anamorphic De-Squeeze, and More
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Cleaning & Maintenance:
Audio Equipment:
Cables & Connectivity:
Other:
FeelWorld LUT6S 6" 2600 cd/m² 4K HDMI/3G-SDI Touchscreen Monitor offers 6” LCD with 1920 x 1080 resolution, 1000:1 contrast ratio, and 2600nits brightness. It equips videographers with the benefits of a large on-camera display without making the camera setting up troublesome. Its bright touch screen, professional software tools, and convenient mounting add instant production value for mirrorless and DSLR shooters.
2600nit Super Bright Screen
The fully adjustable 2600nits screen is incredibly bright, making it perfect for shooting indoors or out. The high bright 2600nits screen is at almost 5 times the brightness of conventional field monitors, allowing you to shoot outdoors without reflections washing out your image.
6” LCD, Full HD 1920x1080
The LUT6S delivers sharp and precise field monitoring and image analysis during daytime recording. It features 1000:1 contrast ratio, light-emitting diode (LED) backlighting with a brightness of 2600 nits and sRGB / Rec.709 Colour Gamut. With wide 160º viewing angle and 368 pixels per inch (PPI) resolution, you can easily shoot in bright daylight.
Professional Colour Calibration, Accurate Colour Reproduction and Accurate Waveform Monitoring
It supports the professional Rec.709 HD colour standard as well as ITU standards, which delivers extremely natural and accurate colour reproduction. With advanced image processing technology, the image is clear, and users can accurately evaluate the quality of various input video signals. You can also select broadcast accurate waveform monitoring option to check all technical information about your video and audio signals.
Simple OS, Sophisticated Shots
LUT6S is packed with high-end monitoring features in a small, lightweight package that can be connected to virtually any camera. Besides, its Video OS includes essential tools for videographers such as focus, framing & exposure tools along with a flexible 3D LUT load tool, HDR monitoring and options for anamorphic de-squeeze monitoring.
Intuitive Controls and Menus with Interactive Touchscreen
The monitor features an interactive touchscreen, allowing you to use simple tap and swipe gestures to change function settings. However, you have the option to turn it off whenever is required through menu setting function. Besides, you are able to browse the menu and set functions with physical buttons at the top of the monitor. LUT6S's key distribution design is simple and easy to operate.

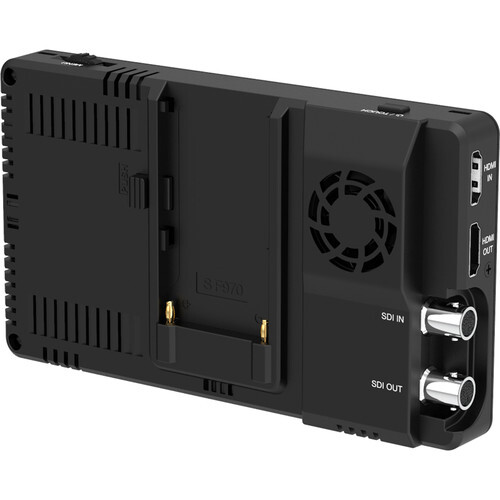

4K HDMI Input & Loop Output
The LUT6S has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It can display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.
|
Display Spec. |
|
|
Model |
LUT6S |
|
Screen Size |
6" IPS |
|
Resolution |
1920x1080 pixels |
|
Pixel Pitch |
0.069 (L) x 0.069 (W) (mm) |
|
Aspect Ratio |
16:9 |
|
Brightness |
2600cd/m² |
|
Contrast Ratio |
1000:1 |
|
Backlight |
LED |
|
Viewing Angle |
80°/80°(L/R) 80°/80°(U/D) |
|
Input |
|
|
1 X BNC |
3G-SDI |
|
1 X HDMI |
HDMI |
|
Output |
|
|
1 X BNC |
3G-SDI |
|
1 X HDMI |
HDMI |
|

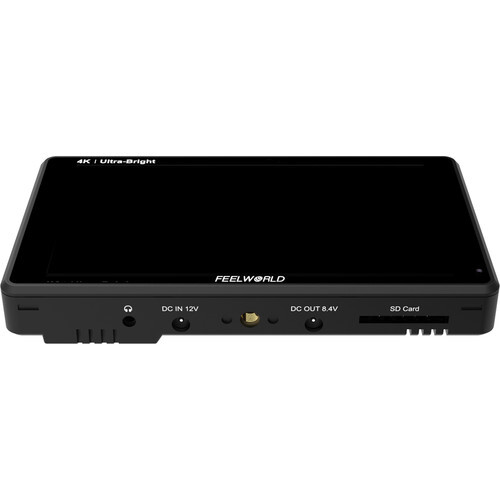

1 X DC |
Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor. |
|
Audio |
3.5mm Stereo Headphone |
|
SDI Input Support Format |
720p (60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) 2048x1080i (60/59.94/50) 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
|
|
SDI Output Support Format |
720p (60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98)
|
|
HDMI Input/ Output Support Format |
480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98) 3840x2160p (30/29.97/25/24/23.98) 4096×2160p (30/29.97/25/24/23.98)
|
|
General |
|
|
Input Voltage |
DC7~24V |
|
Power Consumption |
=16W |
|
Working Temperature |
-20°C~50°C |
|
Storage Temperature |
-30°C~60°C |
|
Install Way |
1/4"-20 Thread Socket (Right, Bottom) |
|
Battery Plate |
F970 Battery Plate |
|
Unit Size |
162Lx93.2Hx29D (mm) |
|
Unit Weight |
300g |
|
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly. |
|
|
Advanced Features |

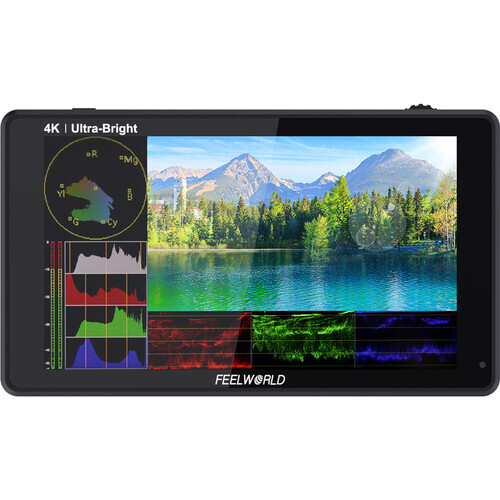

* Support 3D LUT Log to Rec.709, user 3D LUT Upload * Support Touch Menu * Support HDR monitoring * Parade (RGB, YUV, Y) * All Waves * Vector * RGB Histogram * Brightness Histogram * Embedded Audio * Peaking Focus (red, green, blue, white, yellow five peaking colours optional; 1~10 peaking level adjustable) * False Colours * Zebra Exposure (1%~100% adjustable) * Check Field (Red, Green, Blue, Gray) * Scan Mode (Under Scan, Over Scan) * Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) * Image Flip (H, V, H/V) * Image Freeze * Center Marker * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) * Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) * Marker Colour (red, green, blue, white, black, yellow) * Colour Temperature Adjustment * Nine Grid * Zoom (100%~300%) * Aspect Ratio * Pixel to Pixel
|
* Specifications subject to change by the manufacturer without notice
1x FeelWorld LUT6S
1× Mini/ Micro HDMI to HDMI Cable
1× Tilt Arm
1× Manual
