Elinchrom EL20667.2 Overview

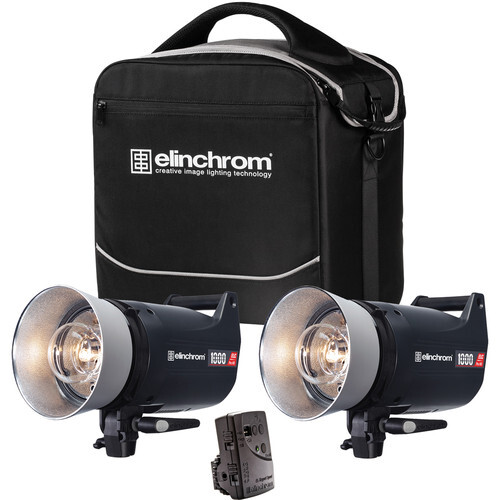

The ELC Pro HD 1000/1000 To Go 2 Light Kit is the perfect choice for photographers who need a reliable and powerful lighting set-up for both studio and on-the-go shoots. This kit includes two 1,000W/s flash heads with built-in EL Skyport SPEED radio receivers, an EL Skyport SPEED transmitter, a ProTec Poly Bag for the lights and two umbrella reflectors.

Elinchrom has packed the ELC Pro HD 1000 with professional features we've come to expect from a flash head of this caliber and added quite a bit more. Power is continuously variable from 7 to 1,000W/s while the 300W proportional modeling lamp allows you to preview your settings before exposure. The ELC Pro HD 1000 recycles to full power in just 1.4 sec. with flash durations as short as an action-freezing 1/5,260 sec at lower settings. In fact, up to 20 frames per second is possible at minimum power. An intelligent low noise, temperature activated fan keeps the head cool and pre-flash detector lets you integrate your on-camera flash into your studio system.

Since the heads have built-in 8 channel EL Skyport SPEED receivers, you can trigger them wirelessly at distances up to 393'. The transmitter's trigger modes allow you to address special situations. The Sequential Mode, for instance enables triggering up to 20 ELCs in bursts or in a continuous cycle. Delayed Mode offers a choice of first or second curtain syncing while Strobo Mode allows single frame stroboscopic action sequences.

Elinchrom ELC Pro HD 1000 Flash Head

The ELC Pro HD 1000 Flash Head from Elinchrom is evidence of the company's continued commitment to pushing the envelope in monolight design. Elinchrom has packed the ELC Pro HD 1000 with professional features we've come to expect from a flash head of this caliber and added quite a bit more. Short recycling times coupled with fast flash durations make freeze-motion, stop-action shooting possible. In fact, up to 20 frames per second is possible at minimum power. An intelligent low noise, temperature activated fan keeps the head cool and lengthens the life of both the flash tube and modeling lamp. A pre-flash detector lets you integrate your on-camera flash into your studio system.

Power, variable continuously from 7 to 1,000W/s, can be mimicked by the 300W proportional modeling lamp to preview your effects. Although Elinchrom provides one, you can swap the sync cord with a separately purchased 8-channel transceiver for wireless triggering from your camera. The head has one built-in to receive the signal. Flash modes allow you to address special situations. The Sequential Mode enables triggering up to 20 ELCs in bursts or in a continuous cycle. Delayed Mode offers a choice of first or second curtain syncing while Strobo Mode allows single frame stroboscopic action sequences. Finally, the auto-sensing multi-voltage power supply means that you can use the ELC Pro HD 1000 anywhere in the world.

Features

• Built-in EL-Skyport receiver for triggering
• EL-Skyport with 8 frequency channels with 4 groups
• EL-Skyport Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
• Intelligent pre-flash detector system to enable the use of ELC units with speedlights
• 8 f-stop range
• Action-freezing flash durations of 1/1,430 @ full power (t0.5) and as short as 1/5,260 sec. at 80W/s
• Stable even at fastest recycling times
• Up to 20 flashes per second
• Consistent colour temperature with +/- 150K°
• Power Auto-dump
• Multi-voltage auto-detection: 90-265VAC excluding modeling lamp
• Low 5V sync voltage safe for all digital camera systems
• Intelligent low-noise fan spins slower or faster depending on the internal temperature of the unit
• Impact resistant and fire-retardant body shell
• Accessory bayonet permits use of the complete range of light modifiers

The Elinchrom Standard

• OLED display for information and clarity
• Dashboard for an enhanced experience
• Precise control

Flash Modes

• Sequence Mode allows you to sequentially trigger up to 20 ELCs, in bursts or as a continuous cycle to utilize the high frame rate of your camera
• Delayed Mode provides the option of first or second curtain sync and everything in-between
• Strobo Mode allows you to take a picture with stroboscopic effects in a single frame

Elinchrom ProTec Poly Bag

The black ProTec Poly Bag from Elinchrom is a new robust shoulder bag, which can safely carry, for example, two Elinchrom compacts, such as D-lite RX, BRX and Style 300 or 600RX. Alternatively, it can carry two Quadra battery packs and two Quadra heads with some accessories. For comfortably carrying the bag, there is a detachable shoulder strap and a top grip handle.

• Top dual-zippered closure panel with a grip provides access to the main compartment
• Two touch-fastened interior dividers to separate and protect your gear
• Two exterior zippered pockets hold accessories

Elinchrom Skyport SPEED Transmitter

Using the Elinchrom Skyport SPEED Transmitter you can control basic functions of Elinchrom units such as the BXRI 250/500, Ranger Quadra and D-Lite-it with the built-in ELS Receiver, and Elinchrom RX units to which a Transceiver RX (not included) is attached. To control all RX functions of Style RX, Ranger RX, Ranger Quadra RX (only Ranger Quadra RX with serial numbers from 4001 onwards) and Digital RX from a computer, the USB Transceiver RX 19354/19348 (not included) and the latest EL Skyport software (not included) are required. With this software, additional features are available such as Strobing, Counter and more.

The Skyport remote control system works at distances up to 196' (60 m) indoors; up to 393' (120 m) outdoors, and up to 1/250s shutter speed. It can control flashes in 4 selectable workgroups, and there are 8 frequency channels. With 40-bit security, you get interference-free operation.

The Transmitter synchronizes remote flash units when each is fitted with either a "Universal" receiver (not included) that fits all flash brands or the Transceiver RX (not included) fitting Style RX, Digital RX and Ranger RX units or units with EL-Skyport Transceiver built-in (BXRi 250/500 & Ranger Quadra AS). The RX Transceiver also provides control over the power and modeling lamp of all Elinchrom RX flash units, directly from the Skyport Transmitter Speed. This transmitter uses a 3V lithium battery (CR2430).

• SLR camera sync speeds: SPEED mode up to 1/250s, STANDARD mode 1/160 - 1/200s
• 5 selectable trigger modes, (4 Groups + All)
• 8 frequency channels
• 40 bit security encryption
• Up to 60 m range indoors for standard mode and up to 40 m in SPEED mode
• Up to 120 m range outdoors for standard mode and up to 60 m in SPEED mode.
• Battery life up to 6 months--over 30,000 flashes
• RX-feature buttons (Remote Control)
• Test trigger button and feature button
• Integrated hotshoe (middle contact) improved
• SYNC-socket for direct connection improved
• Two flash modes, standard and SPEED
• The "Standard" mode is fully compatible with previous EL-Skyport versions
• The SPEED function is available for Ranger Quadra AS, BXRi 250/500 and D-Lite-it and all other units, when used with the Universal Speed
• Status LED for EL-Skyport mode and battery status
• Improved housing, battery drawer and switches
• New hotshoe with screw-lock
• New extra features; configure EL-Skyport with the new EL-Skyport PC/MAC software 3.0 (not included)

Elinchrom Wide Angle, Umbrella Reflector, 6-1/3", 95 Degrees, for Elinchrom Flash Heads

Gives wide, even umbrella coverage (no center hot spot), even at close flashtube-to-umbrella distance. Supplied with all Location Outfits. A patented, durable bayonet locking system provides positive instant mounting.
