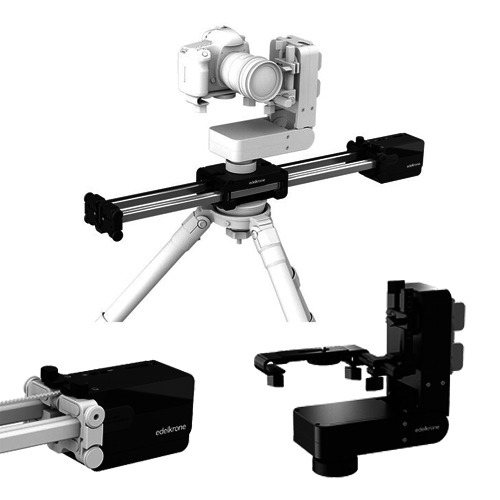

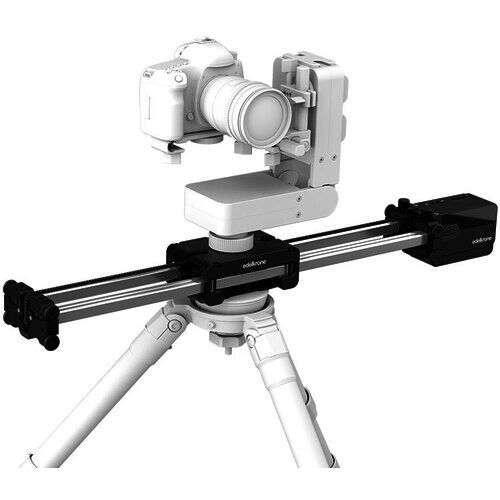

Add motorised pans and slides to your video content using this SliderPLUS v5 PRO Long, Slide Module v3 & HeadPlus Kit. The HeadPLUS head has a 4.5kg payload, and the SliderPLUS v5 PRO Long supports rigs up to 9kg on a tripod and up to 18kg when mounted on a flat surface.

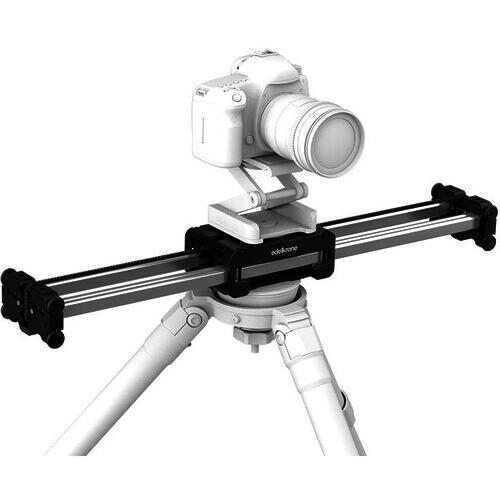

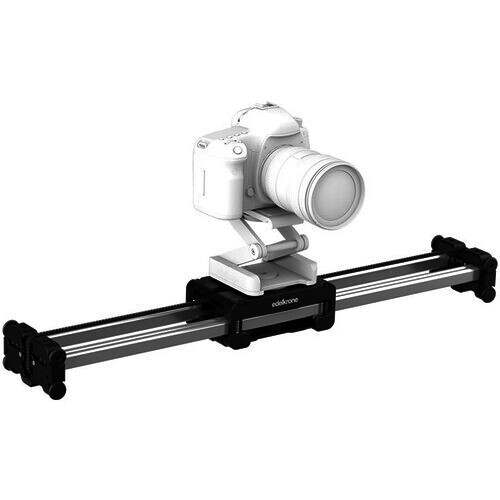

Edelkrone SliderPLUS v5 PRO Long

The edelkrone SliderPLUS PRO Long effectively offers twice the moving distance of a slider in a similar range. This robust, compact slider supports camera rigs with up to 18kg weight when mounted on the ground and up to 9kg when mounted on a tripod. Its travel range extends to 45cm on the ground and 90cm on a tripod. Besides, it can be mounted on a tripod with an incline of up to 22 degree.

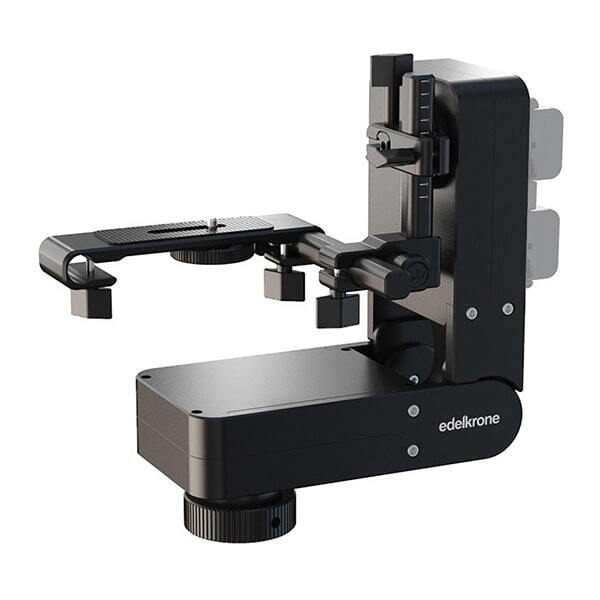

edelkrone HeadPLUS

The edelkrone HeadPLUS is a pan & tilt head with built-in motors that allows you to capture smooth camera movements, perfect for time-lapse photography, product videos and for creating professional looking footage. It supports a payload up to 4.5kg which makes it ideal for both irrorless

and DSLR cameras. As well as being able to be setup by hand the HeadPLUS system can also be controlled from the edelkrone mobile app.

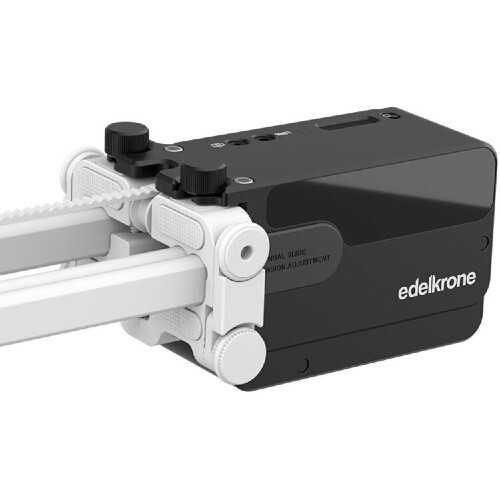

Edelkrone Slide Module V3

Easily achieve seamless, stable slides or program your cameras movements with the Edelkrone Slide Module V3. This is a perfect addition to assist with programming motion time-lapse and stop motion videos. You can wirelessly connect the V3 to the HeadPLUS and HeadONE, offering a huge amount of versatility and creative freedom.

SliderPLUS v5 PRO



Box Contents

1 pair of Geared belts with magnetic belt clips, Cleaning Kit, Allen Keys, Extra attachment screws

Camera travel on tripod

Compact: 50 cm
Long: 90 cm

Camera travel on ground

Compact: 25 cm
Long: 45 cm

Load capacity on tripod

Compact: 11.3 kg
Long: 9 kg

Load capacity on ground

Compact: 22.5 kg
Long: 18 kg

Weight

Compact: 1.55 kg
Long: 1.84 kg

Size (L x W x H)

Compact: 437 x 108 x 71 mm
Long: 637 x 108 x 71 mm

Mounting options

3/8"-16 mounting port on bottom
3/8"-16 mounting screw on top

Working mechanism

Non-friction ball bearing
Tracking system

Additional features

Safety lock
Foldable legs
Magnetic belt clips
Tripod mounting wheel
Inclined sliding motion enabled with Slide Module (up to 22.5° with 5.5 lb)

Materials

CNC machined aluminum and stainless-steel components
Steel ball bearings
Temperature-treated aluminium rods

Suggested tripod specs

Compact:
Distance between legs should be
80 cm or more

Long:
Distance between legs should be
120 cm or more

Slide Module v3



Box Contents

Slide Module, connection screws for Slide Module, Allen key

Size (L x W x H)

135 x 81 x 66 mm

Weight

0.85 kg

Incline Capacity

Up to 22.5° with 2.5 kg

Min. step size on tripod

22.4 µm

Min. step size on ground

11.2 µm

Max. speed on tripod

2.52 in/sec (6.42 cm/sec)

Max. speed on ground

1.26 in/sec (3.21 cm/sec)

Supported fps

All

Number of axes

Single (the slide motion)

Motor type

Step motor with ultra-high-res encoder.

Power inputs

x2 LP-E6 type battery or x2 NP-F type battery (Batteries and battery brackets are sold separately.)

Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 2 hours (continuously at full speed)
Shoots 12000 photographs (in Time-Lapse mode)

Shutter trigger cable socket

2.5 mm (Shutter trigger cable is sold separately).

Compatibility

Previous generation SliderPLUS, SliderPLUS PRO, SliderPLUS X, SliderPLUS M and SliderPLUS v5 series

Can be paired with

HeadONE (Both in single or dual modes), Pan PRO, HeadPLUS, HeadPLUS PRO

Can be controlled

edelkrone App, edelkrone Controller

Mobile device connection

2.4GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminium and stainless-steel components
High contrast sharp OLED screen

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm

HeadPLUS



Box Contents

HeadPLUS, L Bracket for cameras up to 10 lb (4.5 kg), width extenders for SliderPLUS legs, link cable, allen keys

Size

HeadPLUS: (L x W x H) 13.8 x 3.9 x 2.7 in (353 x 100 x 70 mm) L Bracket (folded) (L x W x H) 6.7 x 5.6 x 2.9 in (170 x 143 x 75 mm)

Weight

HeadPLUS: 2.20kg L Bracket: 426 gr

Recommended Camera Load

4.5kg

Mounting options

3/8"-16 mounting port on bottom. 1/4"-20 mounting screw on L bracket.

Min. step size

0.022 degree

Max. speed

360° in 20 sec

Number of axes

2 (Pan & Tilt)

Motor type

2 x ultra-precise step motors with ultra-high-res encoders.

Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 5 hours (continuously at full speed)
Shoots 36000 photographs (in Time-Lapse mode)

1 Sony NP-F970 battery is 47.4 Wh

Power input

LP-E6 type battery, NP-F type battery, AC/DC adapter (NOT included)

Shutter trigger cable socket

2.5 mm (shutter trigger cable sold seperately)

Can be paired with

Slide Module, Focus Module, Laser Module, SliderPLUS, SliderONE, DollyONE, DollyPLUS and previous generation SliderPLUS, SliderPLUS PRO.

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminium and stainless-steel components.

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive centre, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm

* Specifications subject to change by the manufacturer without notice

Edelkrone SliderPLUS v5 PRO Long

  • 1 pair of Geared belts with magnetic belt clips
  • Cleaning Kit
  • Allen Keys
  • Extra attachment screws

HeadPLUS

  • L Bracket for cameras up to 4.5 kg
  • Width extenders for SliderPLUS legs
  • Link cable
  • Allen keys

Edelkrone Slide Module V3

  • Slide Module
  • Connection Screws for Slide Module
  • Allen Key
