edelkrone JibONE v2 Motion Control Jib Arm
SKU code: 49114
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Motorized Camera Jib Arm
- OLED Screen for Instant Feedback
- Improved Wireless Link & Longer Range
- iOS/Android Bluetooth LE App
- 1.6' Camera Travel in 8 to 140 Seconds
- 3/8"-16 Camera Screw, Tripod Thread
- 2.5mm Shutter Trigger Port
- Optional LP-E6, L-Series Battery Plates
You May Also Like
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Studio Lighting:
Other:

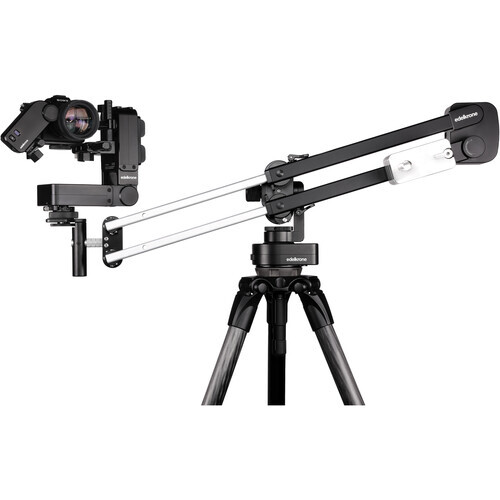

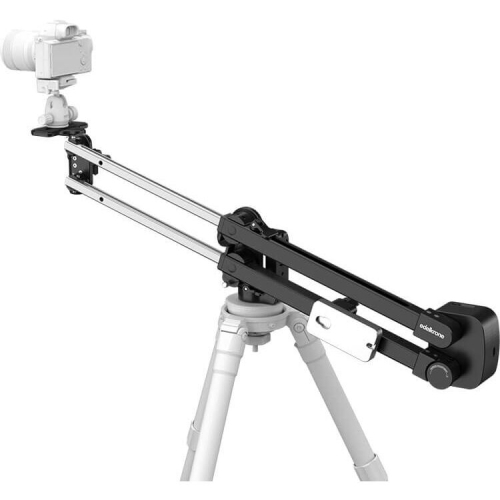

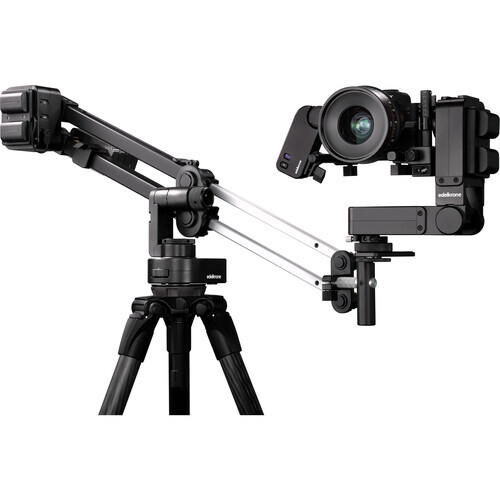

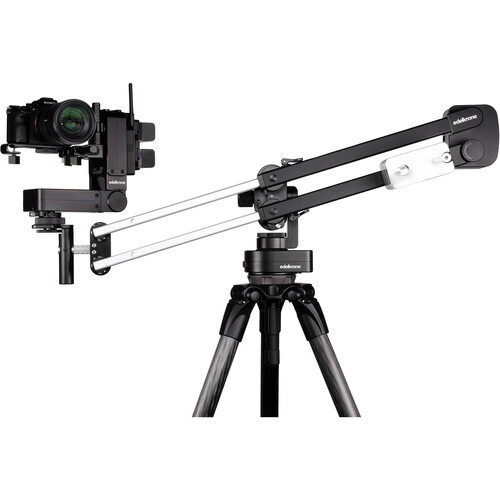

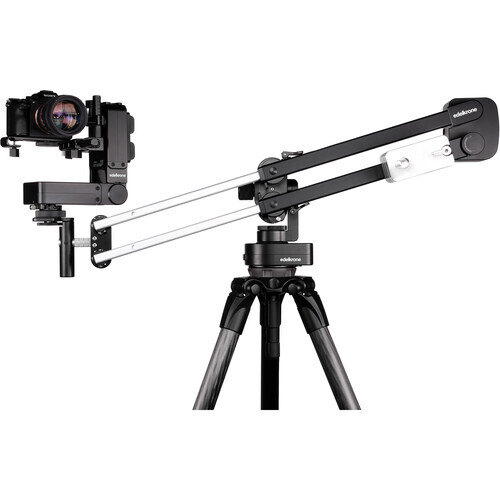

With your DSLR, mirrorless, or video camera and the JibONE v2 Motion Control Jib Arm from edelkrone, you can choreograph dynamic, sweeping pan, tilt, and diagonal motions. Improved wireless connectivity with a greater range and an OLED screen for immediate response is offered by the tripod-mounted JibONE v2. To extend the life of your battery, updated power features include a physical power button, power-saving, and auto-off modes. This sturdy aluminium jib arm may be controlled manually or completely wired through Link Port to give motorised tilt and pan features for camera setups up to 11 lbs.
JibONE v2 Features
The JibONE v2 offers an improved wireless connection and longer range, a physical power switch, and power-saving and automatic-off modes to help conserve your battery power.
OLED Screen
An OLED screen provides instant feedback for an improved user experience.
Ultracompact Camera Jib
Constructed from CNC-machined aluminum, this ultracompact jib arm supports up to 11 lb total and has a camera travel range of 20". It folds down to just 24" and fits in the edelkrone Backpack so you can take it almost anywhere.
Motorized and Manual Control
Create quiet, backlash-free motorized jib moves using your smartphone and the Bluetooth LE iOS and Android-compatible app, or simply operate the jib manually. A fully wired option is available using the Link Port.
Versatile Power Options
The JibONE v2 does not include a power supply but rather is designed to work with a variety of popular batteries you may already have in your kit. Separately available power options include an AC adapter and Canon LP-E6 and Sony L-Series battery brackets.
Maintains Camera Level
Use the JibONE v2 to keep your camera level, even during horizontal, vertical, and diagonal moves. The pan and tilt axes of the JibONE v2 are coupled and can be set at 22.5° increments.
Compatibility
Use the JibONE v2 with the separately available HeadONE, Pan PRO, HeadPLUS v1/v2, or HeadPLUS PRO v1/v2 for even greater control and advanced moves with target tracking, target switching, sequencing, and target learning. You can also connect select cameras to the 2.5mm shutter trigger port to control shutter and run/stop functions.
Display |
|
Panel Type | OLED |
Touchscreen | No |
Inputs / Outputs |
|
Shutter Trigger Port | 2.5 mm |
Wireless |
|
Wi-Fi | 802.11a/b/g; Single-Band (2.4 GHz) |
Bluetooth | Yes |
Battery Chemistry | Lithium-Ion |
Battery Capacity | 28.8 Wh |
Maximum Battery Life | 2 Hours |
Power |
|
DC Input Power | 9 VDC at 2.2 A |
Minimum Continuous Speed | 1.6' / 50 cm per 140 seconds |
Maximum Continuous Speed | 1.6' / 50 cm per 8 seconds |
Camera Travel Distance | 1.6' / 50 cm |
App Compatibility | iOS 11.0 or Later |
Android 5.0 or Later | |
Physical |
|
Mounting | Top: 1 x 3/8"-16 Screw |
Bottom: 1 x 3/8"-16 Thread | |
Material of Construction | CNC-Machined Aluminum, Stainless Steel |
Dimensions | 24 x 6.7 x 5.9" / 61 x 17 x 15 cm (Folded) |
Weight | 12.1 lb / 5.5 kg (with 2.2 lb Counterweight) |
* Specifications subject to change by the manufacturer without notice
- Edelkrone JibONE v2 Motion Control Jib Arm
- Main Counterweight
- 3 x Counterweight (2.2 lb)
- Shutter Extension Cable
Manufacturer Warranty
This product comes with a
12 month Australian warranty
from Edelkrone Australia
