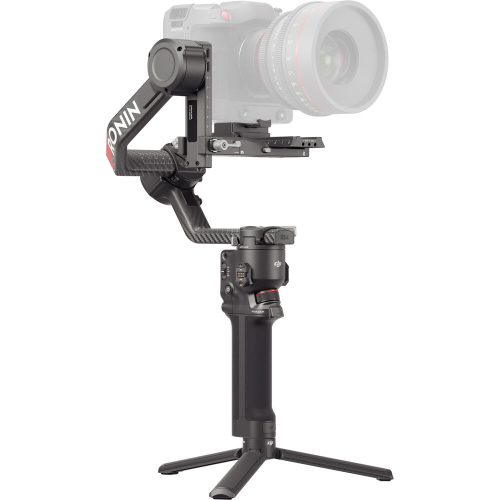

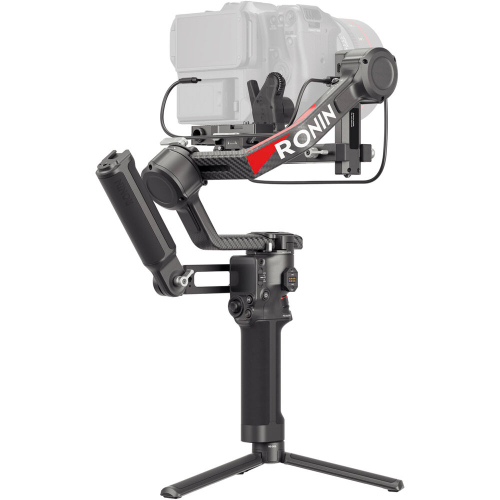

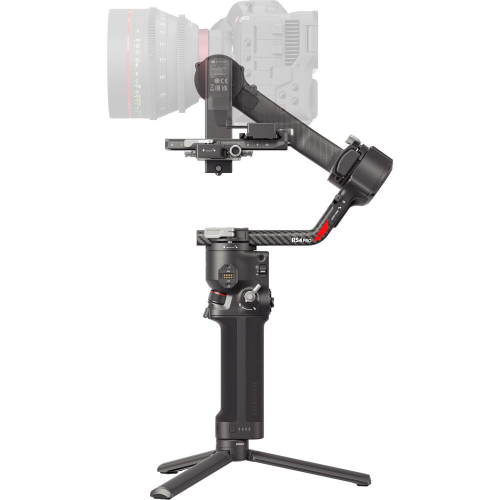

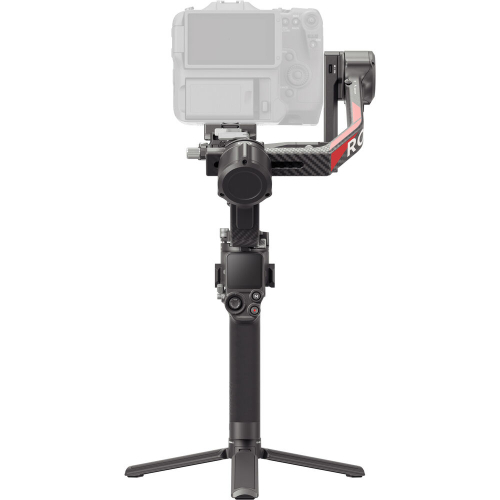

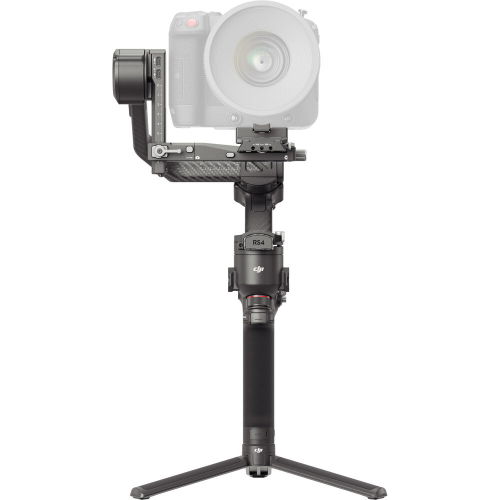

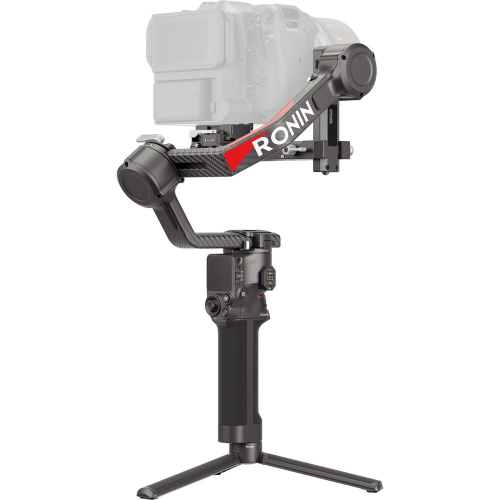

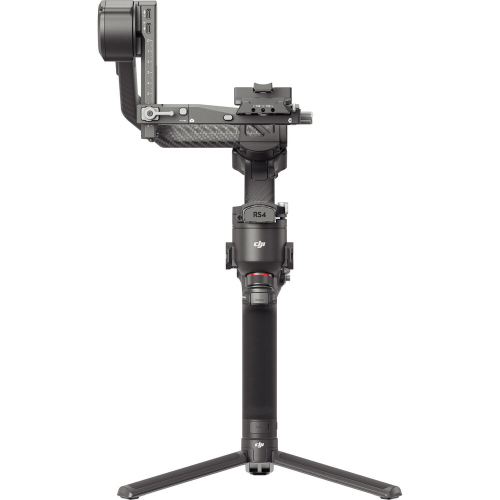

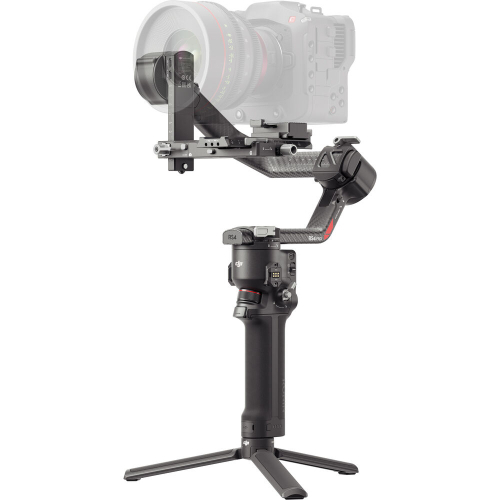

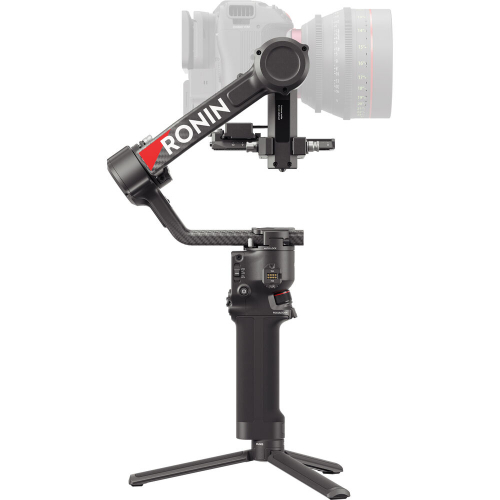

DJI Ronin RS 4 Pro Combo Gimbal

The DJI RS 4 Pro is a versatile tool tailored for mirrorless camera shooters, boasting enhanced operational efficiency, native vertical shooting capability, and an expanded accessory ecosystem. Weighing just around 1.2 kg, it offers a robust load capacity of 4.5 kg, making it suitable for supporting compact camera builds. This combo package includes essential accessories such as the Focus Pro Motor with a rod mount kit, a Ronin Image Transmitter, a focus gear strip, a briefcase handle, and a convenient carrying case. Teflon-coated axes ensure minimal friction for smooth balancing and operation. Furthermore, intuitive features like the fine-tuning knob, auto-locking OLED screen, and RSA communication port enhance usability and enable seamless integration with additional accessories for enhanced functionality.

Second-Generation Quick Release Plate Design

With the familiar dual-layered quick release plates of its predecessor, the RS 4 makes mounting and balancing your camera a breeze. The horizontal plate is newly designed for faster transitions to native vertical shooting. A fine-tuning knob adjusts the tilt axis to move your camera forward or backward. The upper plate has added placement guides for secure camera mounting.

Second-Generation Automated Axis Locks

When the gimbal is powered off, you can press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working in just two seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making a move or storage significantly more efficient. The second iteration of this design has created smaller gaps when locked to further reduce gimbal shake.

RSA Communication Port

The RSA communication port allows you to integrate Ronin series accessories into your gimbal configuration. Add Ronin-specific or third-party accessories with control capabilities to switch between different shooting configurations. The DJI RS SDK protocol will allow third-party manufacturers and other developers to create future customized functions for the RS 4.

Wireless Shutter Control

By implementing Dual-Mode Bluetooth, the RS 4 Pro supports wireless shutter control, saving time and effort with every use. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabiliser. Previously paired cameras can automatically reconnect after the first use, eliminating the need for a camera control cable.

Updated ActiveTrack Pro

Tracking on the Ronin series has never been more accurate or responsive. The next-generation ActiveTrack Pro can directly read images from the camera built into the Focus Pro LiDAR Autofocus, with no need for the Ronin Image Transmitter. When using ActiveTrack Pro, you can directly monitor or frame the subject on the RS 4 Pro's OLED touchscreen. The new optional LiDAR unit can project 76,800 ranging points within a 20-meter area.

Integrated Controls

  • By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started as fast as possible. Other intelligent features include motion-lapse, track, and panorama.
  • The trigger button can be customized to FPV mode, which causes the three axes to follow the direction of the grip's movement when held down.

Car Mount Mode

The new car mount mode optimizes stabilisation specifically to accommodate vehicle vibrations and wind resistance for steady capture.

Fourth-Gen RS Stabilisation Algorithm

Empowered by a next-generation stabilisation algorithm, the RS 4 Pro provides enhanced stability over the RS 3, effortlessly managing vertical shooting, fast-paced movements, and low-angle shots. The motor torque on all three axes has been increased by 20% for greater power.

Auto-Locking OLED Screen

The RS 4 Pro is equipped with a fixed OLED touchscreen with a new auto-lock feature. Once locked, the screen will display the current gimbal and joystick moves at a low brightness to prevent accidental switching and conserve battery.

Integrated Monitoring and Control

Remotely adjust camera exposure directly in the Ronin app, or control the gimbal with the virtual joystick to get an integrated monitoring and control experience. With the Ronin Image Transmitter, a smartphone can be used as a motion controller to remotely control the RS 4 Pro gimbal for more flexible and dynamic camera movements.

Enhanced Battery and Fast Charging

The RS 4 Pro battery grip features a cartridge design, making it easier to swap batteries and smaller for storage. It can even be charged separately from the gimbal. The new battery grip provides an extended runtime of up to 13 hours, enough for continuous shooting all day. It supports 18W PD fast charging with a charge time of just 1.5 hours. It can even be used while charging to keep RS 4 Pro powered almost indefinitely.

Load Capacity
4.5 kg
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Mechanical Range
  Yaw (Pan): 360°
  Pitch (Tilt): -112 to 214°
  Roll: -95 to 240°
Follow Speed
Pan/Tilt/Roll: 360°/s
Inputs/Outputs
USB-C (Control / Video)
  USB-C (Power)
Wireless Frequency
2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
  App Name: Ronin App
Battery Type
Built-In
Battery Capacity
1950 mAh / 30 Wh
Battery Runtime
13 Hours
Battery Charging Time
1.5 Hours
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Voltage
15.4 VDC
Operating Voltage
15.4 VDC
Operating Temperature
-4 to 113°F / -20 to 45°C
Display Type
Fixed Touchscreen OLED
Materials
Carbon Fiber
Mounting
1/4"-20 Female
  NATO Rail
Dimensions
28.3 x 27.1 x 7.5 cm (Folded)
  41.6 x 22.3 x 20.2 cm
Weight
1.24 kg


* Specifications subject to change by the manufacturer without notice.

  • DJI Ronin RS 4 Pro Combo Gimbal
  • BG30 Battery Grip
  • Quick Release Plate (Arca-Type/Manfrotto)
  • Extended Grip/Tripod
  • DJI Briefcase Handle for RS Series
  • Lens Support
  • USB-C Multicamera Control Cable (11.8")
  • USB-C Charging Cable (15.7")
  • DJI Ronin RavenEye Image Transmission System for DJI stabilisers
  • DJI Focus Pro Motor
  • Screw Kit
  • Lower Extended Quick Release Plate
  • Smartphone Holder
  • Carrying Case

Manufacturer Warranty


This product comes with a

12  month Australian warranty

from CR Kennedy & Company
(the sole authorised Australian Distributor)
