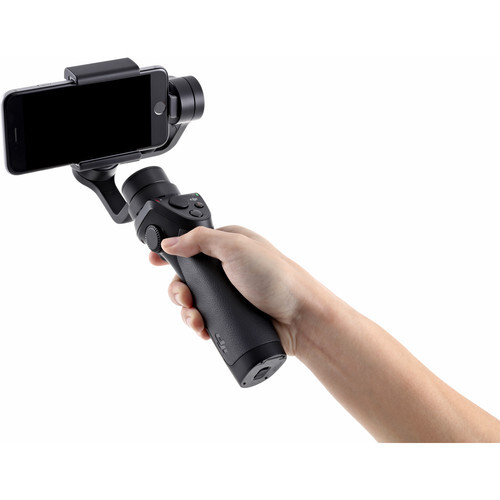

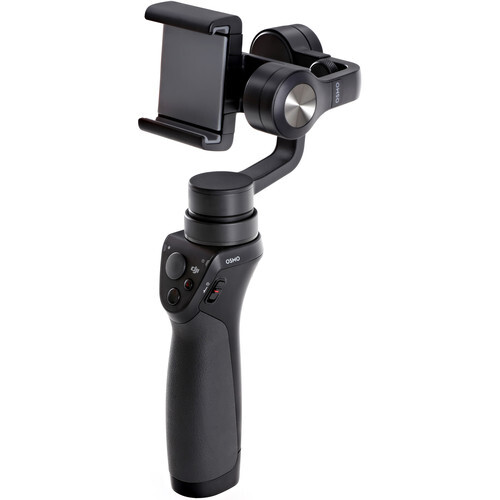

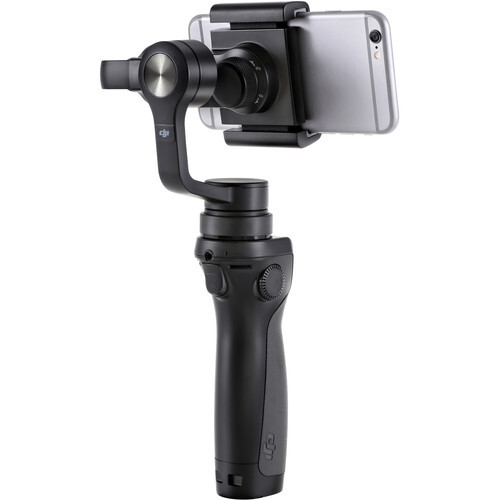

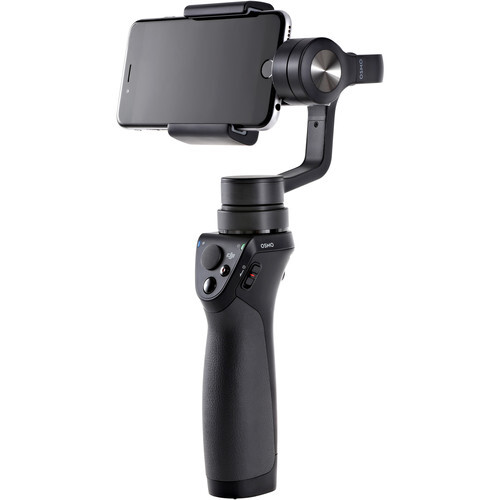

Stable Video with Smartphone

The DJI Osmo Mobile Gimbal uses 3-axis stabilisation to create incredibly steady footage with your camera on your smartphone. The gimbal anticipates movement to smooth out pan and tilt motions, and uses SmoothTrack technology to counteract bumps and shakes. In addition, the gimbal allows you to manual pan and tilt to capture cinematic shots with your mobile device.

ActiveTrack Visual Tracking

With ActiveTrack visual tracking you can create perfect video selfies, the gimbal uses visual subject recognition and tracking to ensure your smartphone follows you as you move. Simply select your subject on your mobile and the DJI Go App tells the gimbal to lock-on and follow the selected target while keeping it centred in the frame.

Motion Time-Lapse

The Osmo Mobile allows you to effortlessly create motion time lapse videos without needing any additional equipment. You can choose a duration for your time-lapse as well as a start and endpoint for the gimbals pan and tilt movements. When triggered the Osmo Mobile recreates the movements while your smartphone takes pictures creating a motion time-lapse video.

Long Exposure Shooting

The Osmo has a highly effective stabilisation system that keeps the camera steady, allowing you to create sharp handheld long exposure photographs. So that even without a tripod you can still capture subjects like the moving lights of cars on a highway at night to create stunning light trail imagery.

Expansive Panoramas

By using the Panorama function, the gimbal automatically pans to capture and stitch up to nine images together creating one detailed panoramic image, perfect for massive landscapes when one picture just doesn’t do the scene justice.

Bluetooth Connectivity

Integrated Bluetooth connectivity allows communication between the gimbal with the attached smartphone eliminating the need for Wi-Fi. The connection also allows you to use the shutter, record and trigger buttons on the gimbal to control your smartphone’s camera.

DJI GO App

The DJI GO app allows you to flip between front-facing and rear-facing cameras, displays current battery levels and lets you trigger advanced gimbal styles like the underslung, portrait and flashlight modes. The App also lets you can control the gimbal with the joystick. The app also allows you to instantly live stream your recording to YouTube Live and other social media services.

Intelligent Battery

The included high capacity smart 980 mAh LiPo battery can power the gimbal for up to 4.5 hours and protects itself from overcharging. It’s easy to swap batteries over and you can use an external battery pack for even longer shooting. The 3.5mm port on the front of the Osmo Mobile allows you to conveniently charge the battery without having to remove it.

Compatible with a Wide Range of Smartphones

The included adjustable bracket allows the gimbal to support any smartphone between 58.6-84.8mm wide and up to 8.4mm thick, making it suitable for most modern mobile devices. The gimbal has an ergonomic handle designed to make it more comfortable to hold.

Accessory Support

The DJI Osmo Mobile Gimbal supports a range of mounts and extensions to expand the functionality of your gimbal. A rosette mount on the side of the handle allows you to connect accessories like a selfie-stick style extension rod, and various other DJI mounts for specialised film making.

* Note: When using your DJI product for the first time, activation through a DJI app is required.

Handle



Dimensions

61.8 × 48.2 × 161.5 mm

Weight (including battery)

201 g

Intelligent Battery



Model

HB01-522365

Type

LiPo

Capacity

980 mAh

Energy

10.8 Wh

Voltage

11.1 V

Charging Temperature

5° to 40° C

Operating Temperature

0° to 40° C

Gimbal



Name

Zenmuse M1

Model

ZM01

Dimensions

125.06 × 109.15 × 90.98 mm (Folded)

Weight

300 g

Consumption

2.5 W

Angular Vibration Range

±0.03°

Controllable Range

Pan: ±150°



Roll:±25°



Tilt:-125° to +35°

Mechanical Range

Pan:±165°



Roll:-50° to +90°



Tilt:-140° to +50°

Max Controllable Speed

120°/s

Mobile Phone Width Range

58.6-84.8 mm

Connectivity

Bluetooth Low Energy 4.0


* Specifications subject to change by the manufacturer without notice

  • DJI Osmo Mobile Gimbal
  • Wrist Strap
  • Intelligent Battery
  • Rosette Protection Cap
  • USB Power Cable
  • Carrying Pouch
  • Manual
