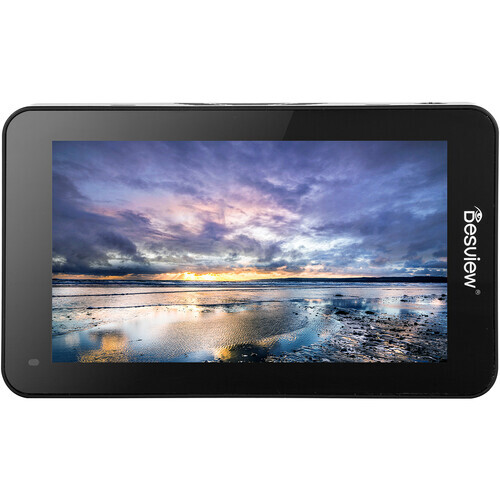

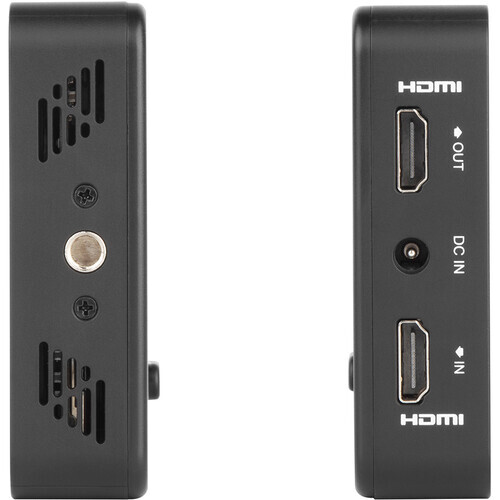

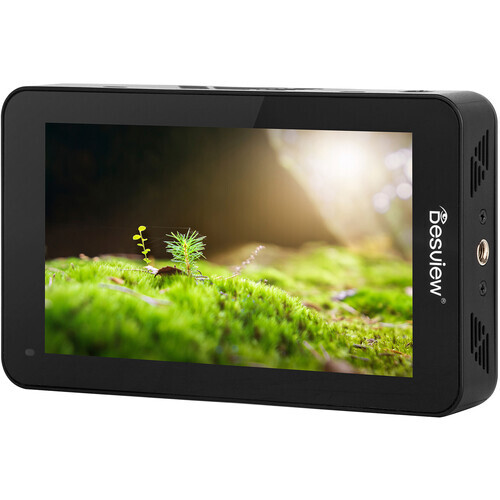

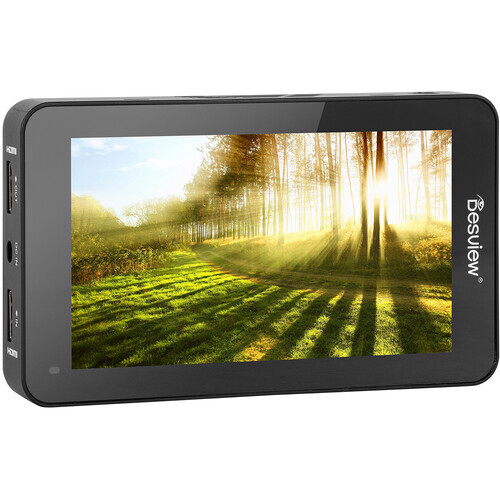

The R6 UHB 5.5" 2800 cd/m2 Ultra High-Brightness Touchscreen Monitor is a small, on-camera touchscreen monitor with polycarbonate and ABS plastic shell that is both lightweight and resilient. It has a 1920 x 1080 ultrabright display with a 1000:1 contrast ratio that is suitable for outdoor use without a sun hood, and a built-in sensor lets you set the monitor to automatically adjust the screen brightness. The monitor's HDMI input supports DCI 4K24 and 4K30 UHD, scaling the signal for display, and the loop-through HDMI output lets you send the camera signal's original, unaltered signal to other monitors or connect to a wireless transmitter for simpler transmission.

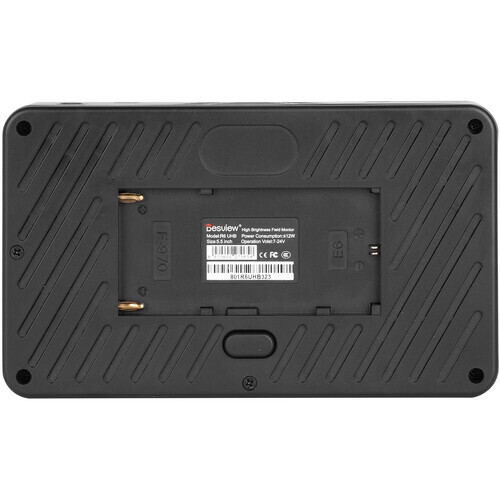

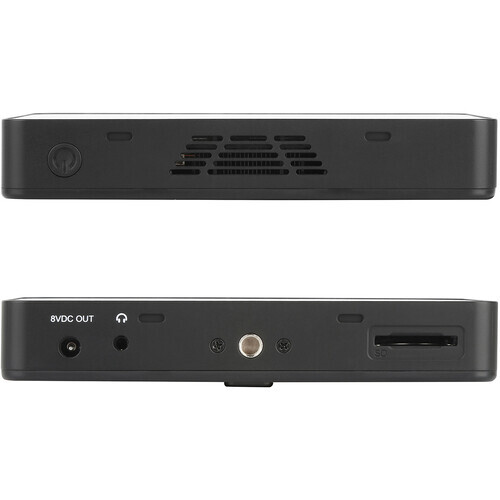

The R6 UHB allows you to import up to 3D LUTs via an SD card slot, and the monitor supports SDR and HDR viewing, including HLG and PQ. Built-in signal and camera tools include histogram, false colour, peaking, zebra, and more. Display functions are easily accessed by the touchscreen and include image freeze, L/R flip, aspect ratio adjustment, and anamorphic de-squeeze selection. The monitor features a headphone jack, and a built-in fan draws air in from the sides and back of the monitor, expelling it out of the top. Two 1/4"-20 mounting holes are provided, on the bottom and right side, allowing for horizontal and vertical mounting. A shoe mount adapter is included for attaching the monitor to your camera's hot shoe or a cage with a shoe mount. The monitor has a combination L-series/LP-E6 battery plate and a 7-24 VDC power input port, as well as an 8 VDC power output port.

Software Monitoring Features:

False colour

False colour ARRI

Zebra

Luminance waveform

RGB waveform

Luminance histogram

RGB histogram

Focus peaking

Safety marker

Center marker

Audio meters

Colour temperature adjustment

Zoom

Pixel-to-pixel

Display flip

Grid line overlay

Anamorphic mode: 1.33x, 1.5x, 1.66x, 1.79, 2.0

HDR Support:

The monitor supports SDR and HDR monitoring, including HLG and PQ.

LUT Support:

The R6 UHB supports uploading LUTs via the built-in SD card slot, and it comes with an SD card that is preloaded with multiple LUTs.
