Compact Power for Any Application

The Hypercore NEO Slim 98Wh Lithium-Ion Battery from Core SWX is a lightweight 14.8V, 98Wh lithium-ion V-mount battery that can handle a constant 12A draw and peak draw of 16A. Perfect for cine and broadcast applications, this battery is also great for gimbal, drone, and other mobile applications due to its slim 3.81 cm profile and lightweight 0.63 kg design. It also features the ergonomic design, large backlit LCD, and protective over-moulded rubberized housing that Hypercore batteries are known for.

Like previous Hypercores, the battery is microprocessor-driven, ensuring safety and runtime delivery to camera viewfinders or LCDs; but, leveraging the microprocessor, the NEO Slim features an RFID transmitter on the front that lets you monitor the stored battery data via Core SWX's VoltBridgeID iOS app or an RFID reader. Furthermore, the battery has a modular design consisting of less cabling, allowing for increased quality. With the different parts installed separately and securely inside the housing, the chance of failure is reduced in case of drops, and servicing the battery becomes a simpler, more efficient process as the different parts install plug-and-play.

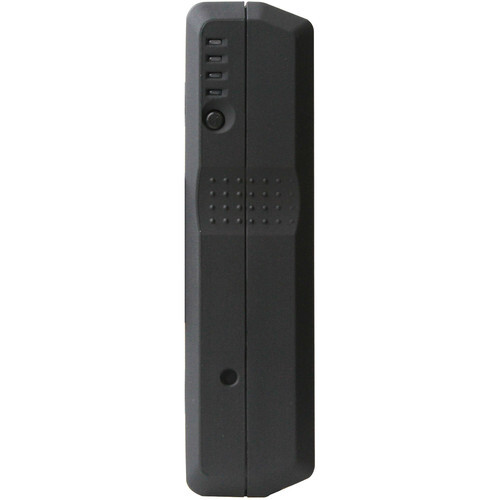

In addition to the large LCD, the Hypercore NEO Slim has an LED gauge on the side where the user can easily glance over it. Other features include 2000 charge/discharge cycles, hibernation mode, and the ability to communicate to cameras as well as chargers with both one-wire and two-wire protocols. Such an advanced battery wouldn't be complete without peripheral support. The Hypercore NEO Slim provides a SmartTap D-Tap port and a USB port for powering/charging devices. The SmartTap port lets you power any 12 VDC accessory and transmit battery data if the accessory is able to communicate that information.

The Hypercore Slim is also widely compatible with many different chargers. This V-mount version is compatible with RED, IDX, and Sony V-mount chargers, among others.

Compact and Powerful

The Hypercore NEO Slim is a 14.8V, 98Wh lithium-ion V-mount battery supporting a 12A continuous draw and 16A peak draw. It's only 3.81 cm thin and weighs just 0.63 kg.

Internal Design

The battery features an eight-cell design utilizing Panasonic cells.

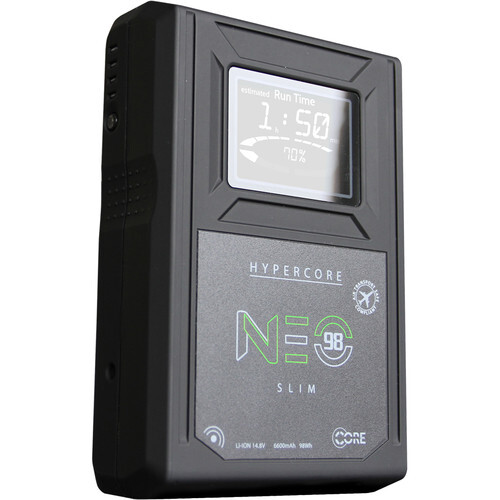

Runtime LCD

A multipurpose backlit LCD provides nominal runtime based on a 25W load, remaining runtime once connected to a device, and remaining charge time when on a charger.

Camera Communication

The Hypercore NEO Slim can communicate to cameras as well as chargers with both one-wire and two-wire protocols.

Hibernation

The packs go to sleep/hibernate when there is no battery usage or movement after a 48-hour period. Once the battery is picked back up, it awakens.

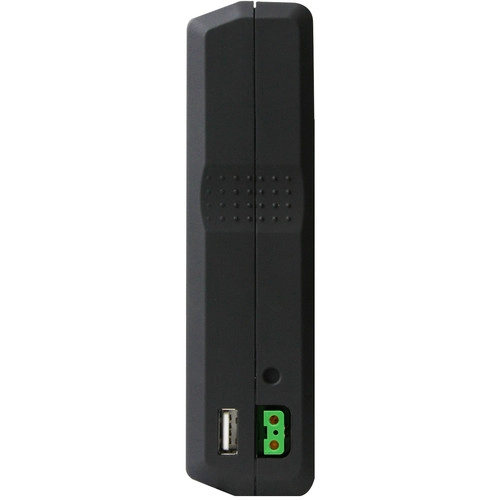

SmartTap Port

Integrated "smart" D-Tap connector allows users to power any 12 VDC device while also receiving all battery data from the port.

USB Port

5V USB port allows powering any USB accessory on the set as well as charging mobile devices.

Rubberized Housing

Over-moulded, non-slip rubberized housing helps provide cell protection against accidental impacts.

Firmware Upgradeable

The NEO Slim is firmware-upgradeable via its USB port.

UN38.3 Certified

The Hypercore NEO Slim UN38.3 is certified for safer travel (depending on the airline carrier).

Storage Mode

The Hypercore NEO Slim incorporates Storage Mode to protect self-discharge and help comply with travel regulations.
