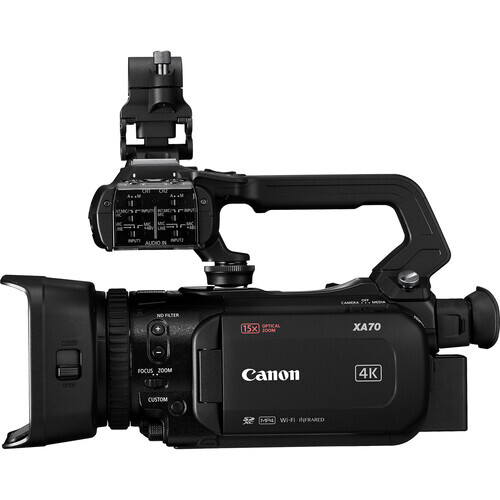

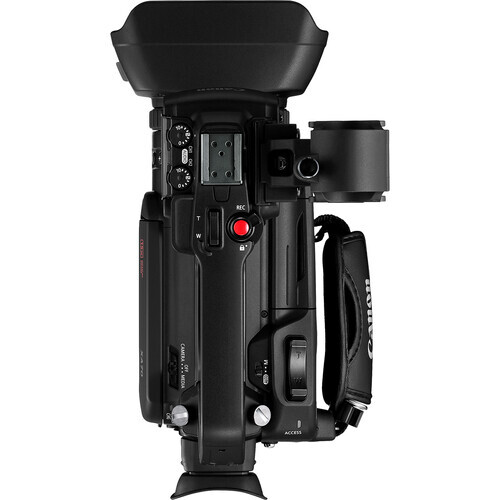

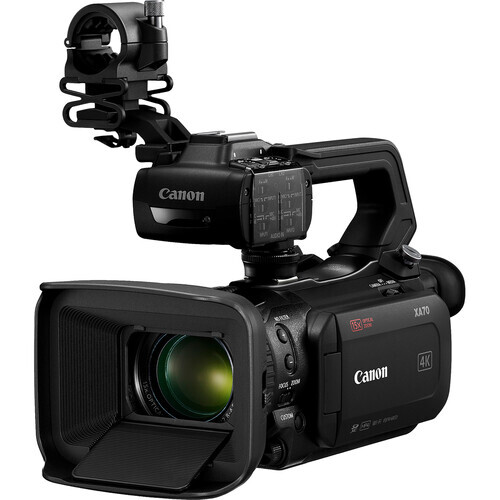

Canon XA70 UHD 4K30 Camcorder
SKU code: 49423
- 1" CMOS Sensor, DIG!C DV 6 Processor
- Up to UHD 4K30 Video Recording
- Mini-HDMI Output
- Integrated 15x Optical Zoom Lens
- Dual XLR and Mic/Line Audio Input
- USB Type-C Output with UVC Support
- 5-Axis Optical Image Stabilization
- Dual-Pixel CMOS Autofocus Feature
- Dual SD Relay and Simultaneous Recording
- 3.5" Touchscreen LCD, Tiltable OLED EVF
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
The Canon XA70 Professional UHD 4K Camcorder is a compact, lightweight camera featuring an impressive list of specifications. This model has both XLR audio inputs and one mini HDMI output which fits right into the ENG category for documentary or journalism style productions - perfect if you need high quality video capture with ease! With its tilting screen made from LCD capacitive panels as well metadata recording capabilities this device will be able to provide your production team all types functionality they could ask fot within such narrow limits on time restrictionstby allowing us smoother editing processes while still being able to get great shots even when working quickly.
The lens optics include an integrated 15x HD optical zoom, a nine-bladed circular iris for more natural highlights, and wide DR gamma support for low-light recording. The camera's pro-style features include Dual-Pixel and Contrast autofocus, fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3.5" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise. The XA70 also has display monitoring features such as zebra, color bars, and test tone, plus a built-in neutral density filter mechanism.
The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots in XF-AVC and MP4 formats, and it outputs to a mini-HDMI port. The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI output. On the audio side, the XA70 features up to four channels of LPCM audio with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input. It features a built-in stereo microphone as well as a headphone jack.
Compact Professional UHD 4K Camcorder
The XA70 captures sharp UHD images thanks to a 1" CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.
On-Screen Display (OSD) "Time Stamp" Recording
OSD recording embeds date, time, timecode, and other data into your original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers.
UVC Livestreaming
Stream HD video directly from the camera via UVC1 to a Windows or macOS computer. Audio output through USB is not supported.
4K 15x Optical Zoom Lens
Adjustable focusing speeds and advanced Dual-Pixel CMOS AF give fast and precise focusing. Use the ultrabright 3.5" LCD to set focus by touching the AF point required. Face Detection AF and Face Tracking are available, while Manual Focus is set via the focus/zoom ring.
XF-AVC and MP4 for Flexible Recording
Choose from XF-AVC or MP4 recording formats. Record XF-AVC UHD 4K 160 Mb/s at 30P and Full HD 45 Mb/s at 60p/60i and 30/24p. For smaller files, record MP4 in 4K 150 Mb/s at 30/24p and Full HD 35 Mb/s or 17 Mb/s at 60/30/24p.
Professional Input and Output
Output options include HDMI, simultaneous backup and relay recording via dual SD cards, and Infrared mode. Record 5x slow motion in Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.
Professional Audio Options
Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
IMAGING | |
Sensor Resolution | Actual: 13.4 Megapixel (4268 x 3148) |
Effective: 8.29 Megapixel (3840 x 2160) | |
Sensor Type | 1"-Type CMOS Sensor |
Image Stabilization | Optical in Integrated Lens |
Digital | |
Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
Capture Type | Stills & Video |
EXPOSURE CONTROL | |
Shutter Speed | 1/2000 to 1 Second |
Minimum Illumination | 1.7 Lux at 1/30 Shutter Speed |
0.1 Lux at 1/2 Shutter Speed | |
White Balance | 2000 to 15,000K |
LENS | |
Focal Length | 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) |
Optical Zoom Ratio | 15x |
Maximum Aperture | f/2.8 to 4.5 |
Minimum Focus Distance | Wide: 0.4" / 1.0 cm |
Entire Zoom Range: 23.6" / 60.0 cm | |
Filter Size | 58 mm |
Focus Control | Autofocus |
Manual Focus | |
INTERNAL VIDEO CAPTURE | |
Recording Modes | H.264/MP4 4:2:0 8-Bit |
3840 x 2160 at 23.98p/24.00p/29.97p | |
1920 x 1080 at 23.98p/24.00p/29.97p/59.94p [35 to 45 Mb/s] | |
1280 x 720 at 59.94p [8 Mb/s] | |
XF-AVC 4:2:0 8-Bit | |
3840 x 2160 at 23.98p/24.00p/29.97p | |
1920 x 1080 at 23.98p/24.00p/29.97p/59.94p | |
Recording Limit | Up to 2120 Minutes |
Broadcast Output | PAL |
Built-In Microphone Type | Stereo |
Audio Recording | MP4: 2-Channel 16-Bit AAC Audio |
MP4: 4-Channel 16-Bit LPCM Audio | |
XAVC: 4-Channel 24-Bit LPCM Audio | |
EXTERNAL VIDEO CAPTURE | |
INTERFACE | |
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) |
Video I/O | 1 x Mini-HDMI (HDMI 2.0) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input |
1 x 1/8" / 3.5 mm TRS Stereo Headphone Input | |
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input | |
Power I/O | 1 x USB Type-C Input |
Other I/O | 1 x USB Type-C Output |
MONITOR | |
Size | 3.5" |
Resolution | 2,760,000 Dot |
Display Type | Articulating Touchscreen LCD |
VIEWFINDER | |
Type | Built-In Electronic (LCD) |
Size | 0.36" |
Resolution | 1,770,000 Dot |
FOCUS | |
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
ENVIRONMENTAL | |
Operating Temperature | 32 to 72°F / 0 to 40°C (Recommended) |
Storage Temperature | 23 to 113°F / -5 to 45°C |
Operating Humidity | 85% |
Storage Humidity | 60% |
GENERAL | |
Battery Type | Canon BP-8 Series |
Power Consumption | 5.3 W |
Tripod Mounting Thread | 1/4"-20 Female |
Accessory Mount | 1 x Cold Shoe Mount |
Dimensions (W x H x D) | 8.4 x 4.3 x 3.6" / 21.3 x 10.9 x 9.1 cm |
Weight | 2.2 lb / 985 g (Body Only) |
3.2 lb / 1460 g (With Battery, Handle, Recording Media) |
* Specifications subject to change by the manufacturer without notice
- Canon XA70 UHD 4K30 Camcorder
- Canon PD-E1 USB Power Adapter
- Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh, Retail Packaging)
- Lens Hood with Lens Cover
- Handle
- Microphone Holder
Manufacturer Warranty
This product comes with a
5 year Australian warranty
from Canon Australia
Want to read more about warranties?
