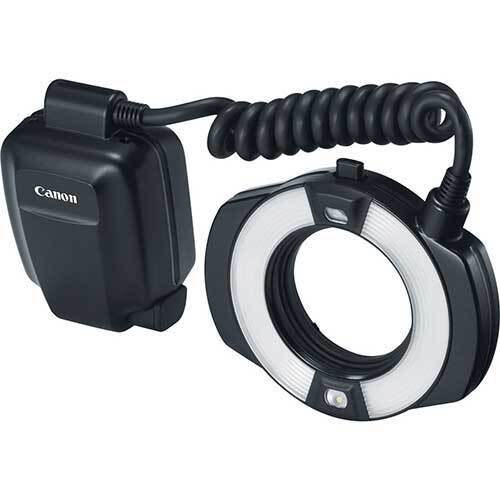

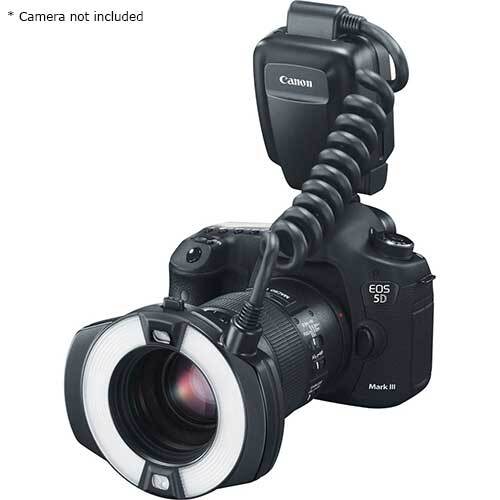

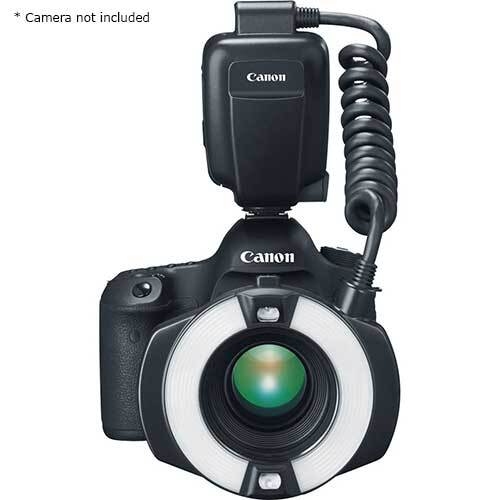

Engineered by a trusted name in the photographic industry, the Canon MR-14EXII Macro Ring Lite Flash is designed to complement Canon’s range of EF Macro lenses for the ultimate in up-close photography.

Featuring a maximum guide number of 10.5m at ISO 100, its intuitive twin tube design allows each flash tube to fire independently or together when required. Sophisticated white LED focusing lamps coupled with two forms of modelling lights deliver an effective and accurate method of previewing lighting effects.

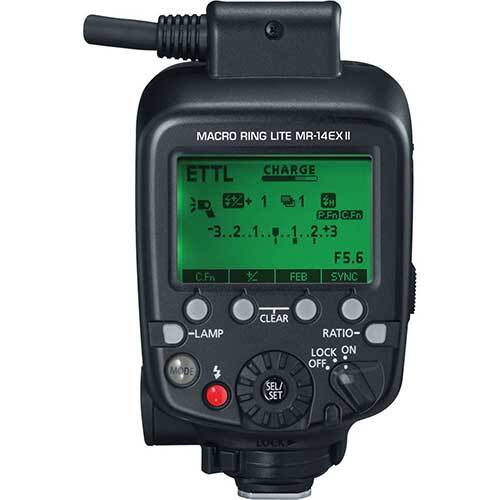

Similar to Canon’s popular Speedlite flash range, the MR-14EXII features a generously sized dot-matrix LCD screen that illuminates in both bright and low-light scenarios to provide a clear visual reading of the settings. Additionally, it contains 12 custom functions and even supports wireless E-TTL when linked with one or more 600EX-RT Speedlite flashes for supreme versatility.

Powered by 4x AA batteries or CP-E4 battery pack (both sold separately), the Canon MR-14EXII Macro Ring Lite Flash is the ultimate accessory designed to unleash a world of photographic potential for enthusiasts and professionals.

This flash is compatible with the following lenses:

  • Canon EF 50mm f/2.5 Compact Macro Lens
  • Canon EF-S 60mm f/2.8 Macro USM Lens
  • Canon EF 100mm f/2.8 Macro USM Lens
  • Canon MP-E 65 1-5x Macro Lens

With the following lenses you will need the optional adapters:

The Canon 67mm Macrolite Adapter is required to use the Canon EF 100mm f/2.8L Macro IS USM Lens.
The Canon 72C Macrolite Adapter is required to use the Canon EF 180mm f/3.5L Macro USM Lens.

Power
Guide No. (ISO100).meters 14
Zoom
Zoom head No
Focal length coverage –
Coverage with wide panel –
Auto zoom for sensor size –
Flash Modes
Auto exposure control E-TTLII/E-TTL/TTL
High speed sync (FP) Yes
Manual / output settings Yes - 1/1- 1/128
Manual steps 1/3 steps
Strobe / output settings –
Frequency –
Video light –
Video light power –
Video light colour temperature –
Flash Related Function
FE lock Yes
Flash exposure compensation Yes
Flash exposure bracketing Yes
Second-curtain flash sync Yes
Modelling flash Yes
Colour temperature info communication Yes
Wireless Flash
Transmitter Yes
Transmitter type Infra-red
Transmitter range approx Indoors: 5m, Outdoors: 3m
Slave No
No. of groups 3[1]
No. of channels 4
Remote shutter release –
Flash Head Movement
Up –
Down –
Left –
Right –
AF ASSIST
AF-Assist beam No (Focusing lamp)
Number of AF points supported –
AF-assist beam type –
Power Source
Battery 4 x AA batteries
Minimum recycling time[2] Approx. 5.5sec
External power supply Yes - CP-E4
Construction
Dust and water resistant No
Mounting foot material Metal
Misc
Custom function 12 (27 options) + 3 personal functions
Flash settings for camera menus[3] Yes
External flash exposure sensor No
PC terminal No
Compatible accessories Macro Lite Adapter 72c, 67
  Compact battery Pack CP-E4EX Series Speedlite with Slave function
Dedicated flash bracket No
Dimensions & Weight
Size (W x H x D), mm Control unit 69.6 x 118.8 x 71.4
  Flash unit 129.6 x 112.1 x 25.3
Weight (Excluding batteries), grams 455
Macro Ring Lite Flash MR-14EX II [1] As default only flash in group C are triggered wireless, set C.Fn 5-1 to wirelessly trigger groups A & B[2] time taken to recharge flash after full discharge using Alkaline AA batteries[3] With compatible cameras only
