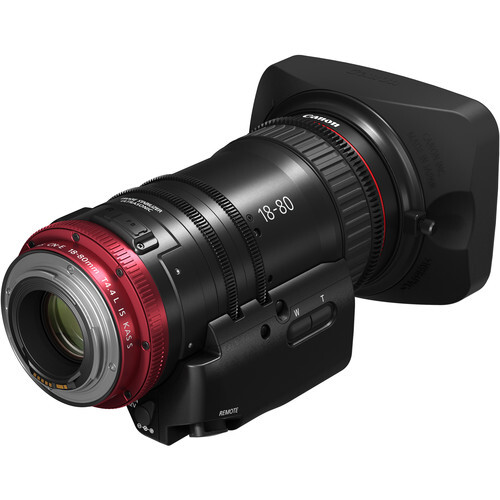

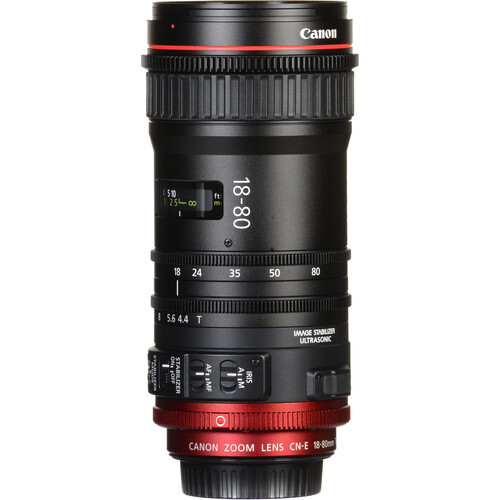

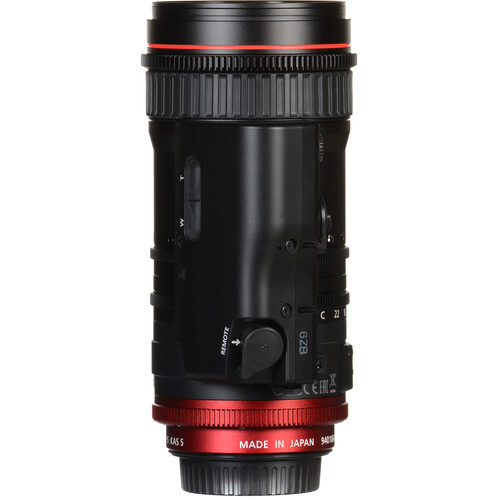

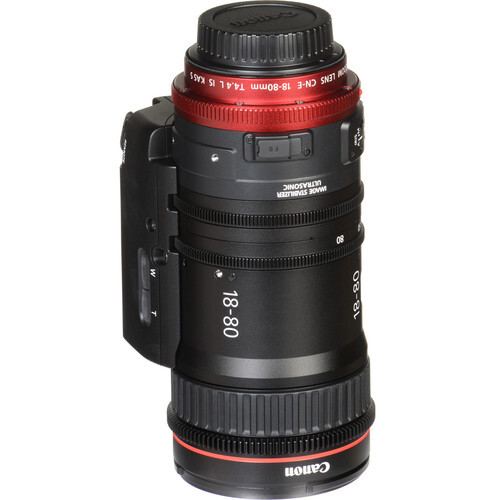

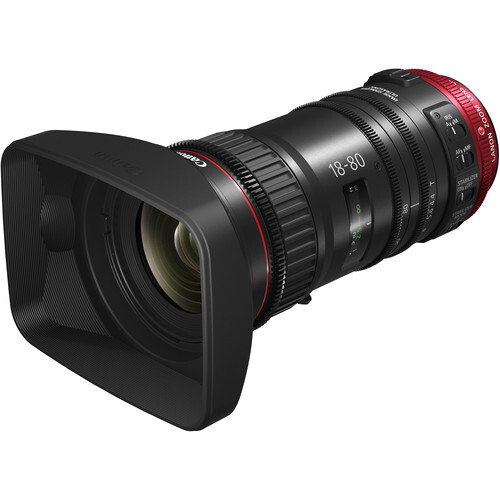

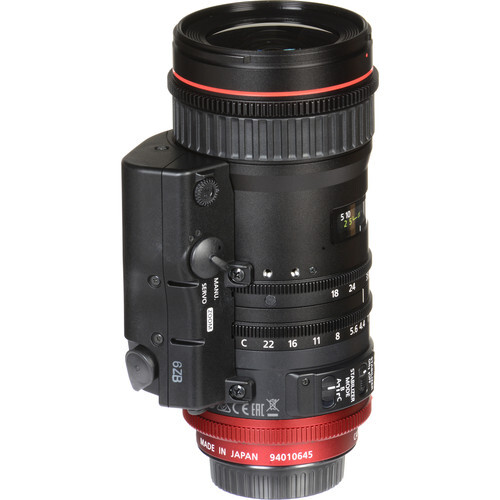

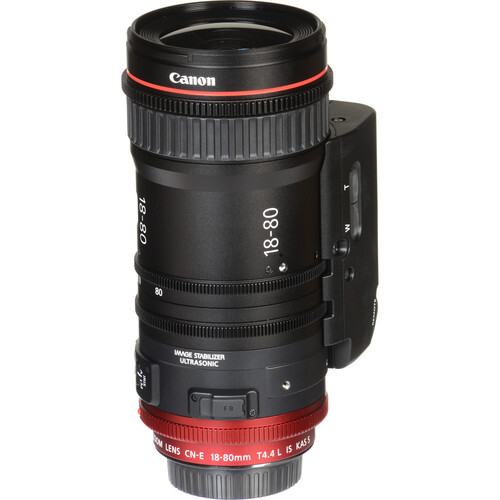

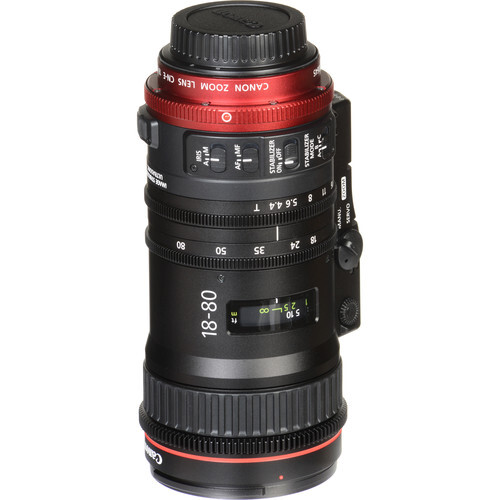

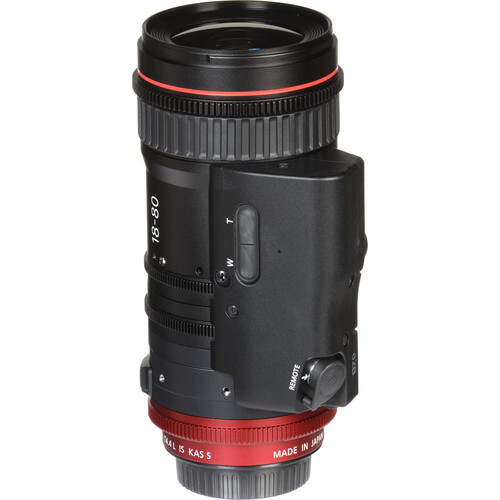

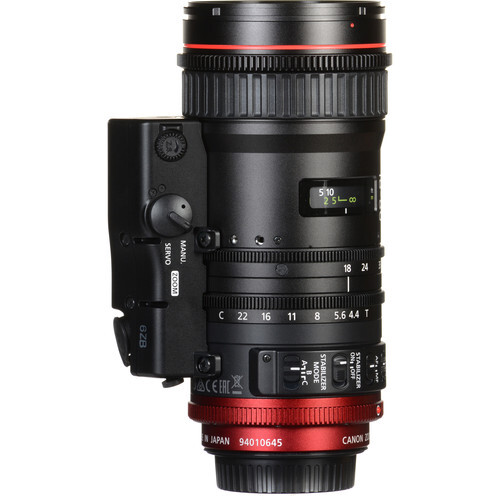

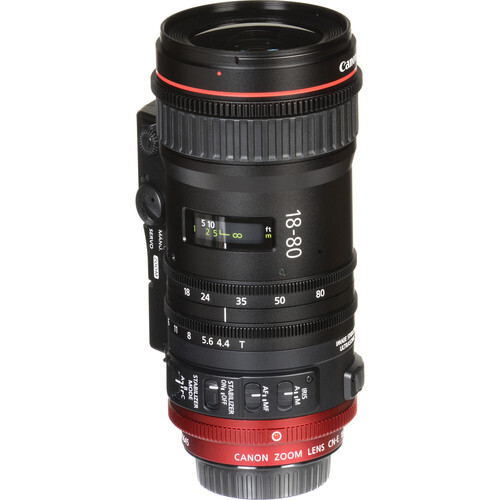

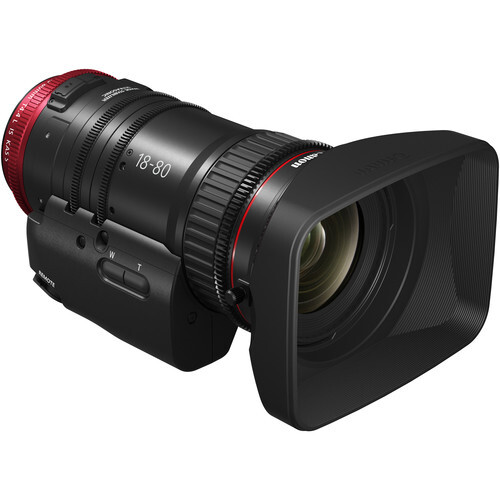

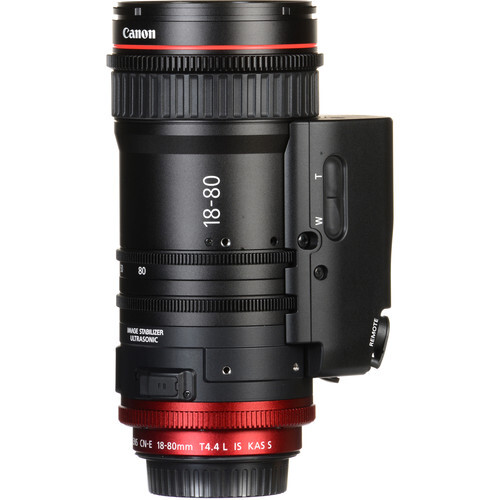

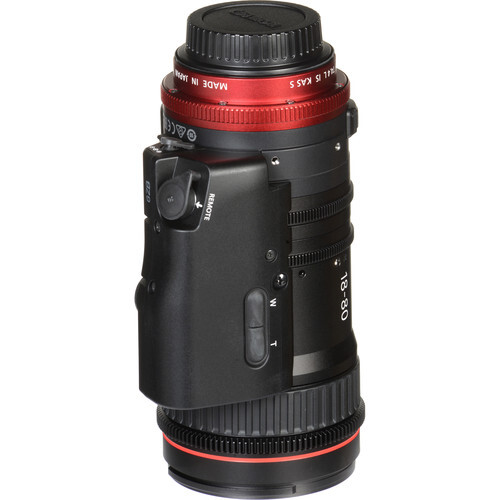

Canon Compact-Servo CN-E 18-80mm T4.4 Overview

The Canon CN-E 18-80mm T4.4 COMPACT-SERVO Lens is the perfect combination of Canon's EF lenses and the features and performance of their CN-E lineup. It's designed for EF-mount cameras with Super 35 or APS-C sized sensors, and covers an impressive 18 to 80mm focal range while maintaining a constant T-stop of T4.4 (f/4). At just 18.28 cm long and weighing only 1.20 kg, it's a compact and lightweight option for a range of productions, from narrative work to run-and-gun documentaries. Plus, it's Canon's first cine-style lens to feature image stabilisation and autofocus when used with Cinema EOS cameras.

Further enhancing the versatility of this lens, Canon has equipped it with a servo drive unit compatible with industry-standard lens controllers, including Canon's broadcast ZSD-300D and FPD-400D, for full zoom, focus, and iris control. Alternatively, you can outfit the lens with the optional ZSG-C10 Control Grip for ENG-style lens control and operation. Power is provided to the grip from compatible cameras via the EF mount. For non-servo zoom control, the lens features cine-standard 0.8 mod gears, as well as a rubberized grip on the focus ring enabling comfortable manual operation.

Lens Design

  • Covers Super 35 / APS-C formats
  • 18 to 80mm focal range (4.4x zoom ratio)
  • Constant T4.4 (f/4) aperture
  • Parfocal design to maintain focus during zoom
  • Minimized focus breathing
  • Cine-standard 0.8 MOD focus gear ring
  • 0.5 MOD iris and zoom gear rings
  • Focus ring rotates 180°
  • Matching colour characteristics to existing CN-E lenses
  • 9-blade iris
  • Iris closing
  • Compact and lightweight design

Servo Control

  • Servo Control Capability for all zoom, focus and iris
  • Power provided via camera mount (from compatible cameras)
  • Compatible with broadcast-style servo lens controllers, such as Canon ZSD-300D and FPD-400D
  • Optional ZSG-C10 Grip for ENG-style control and shoulder mount applications

Functionality with Cinema EOS Cameras

  • Auto focus function (Continuous AF, One-Shot AF, Focus Guide)
  • Image Stabilization
  • Remote control of zoom, focus and iris via camera
  • REC start/stop from ZSG-C10 Grip
  • Peripheral illumination correction
  • Chromatic aberration correction
  • Lens metadata record
  • T-stop/F-stop number display select
Focal Length 18 to 80mm

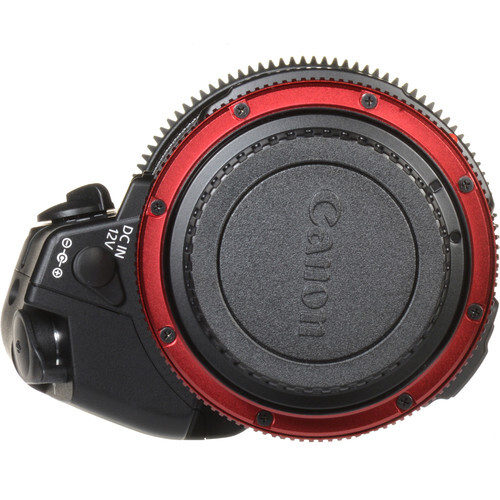

Lens Mount Canon EF
Lens Format Coverage Super35/APS-C
Image Circle 31.4 mm
Maximum Aperture T4.4
f/4
Diagonal Angle of View Super35: 80.5 to 21.1°
Minimum Focus Distance From: 1.6' / 0.5 m
Diaphragm Blades 9

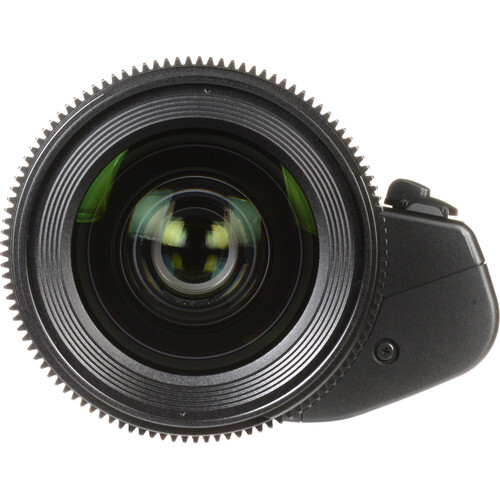

Front Diameter 84 mm
Filter Thread 77 mm
Zoom Ratio 4.4x
Dimensions (W x H) 9.4 x 1.06 cm
Length 18.23 cm
Weight 1.2 kg



* Specifications subject to change by the manufacturer without notice

  • Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens - EF Mount
