Blackmagic Mini Converter - UpDownCross HD
SKU code: 61315
- 3G/HD/SD-SDI Up/Down/Cross Conversion
- 3G/HD/SD-SDI Input, 2 x Outputs
- HDMI Input & Output
- Supports Signals up to 1080p60
- Automatic Input Detection & Multirate Support
- 12V Universal Power Supply Included
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

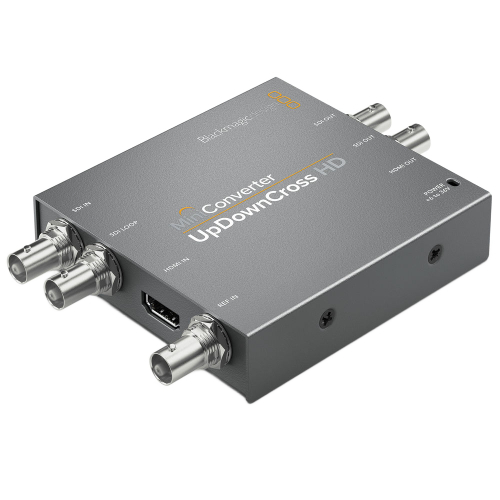

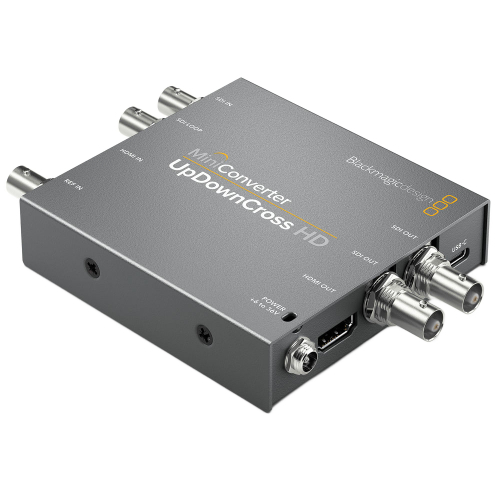

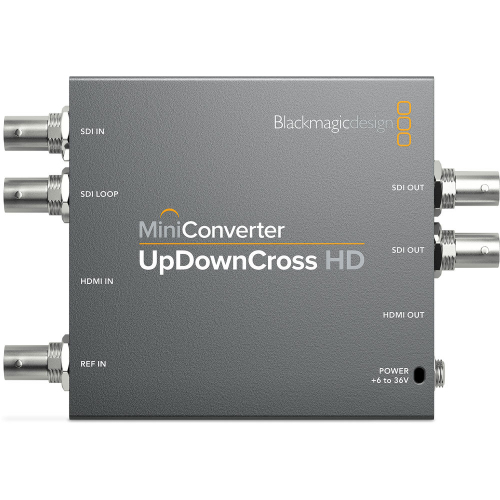

Blackmagic Mini Converter - UpDownCross HD
Simplify your video production workflow with the Blackmagic Design Mini Converter UpDownCross HD, which seamlessly cross-converts between SD and HD formats, supporting resolutions up to 1080p60. With one 3G/HD/SD-SDI input, two 3G/HD/SD-SDI outputs, a loop-through output, an HDMI input, and an HDMI output, this versatile converter adapts easily to various setups. It also enables scaling for computer DVI resolutions via its HDMI input, allowing you to connect HDMI-equipped computers to SDI projectors for flexible integration in diverse environments.

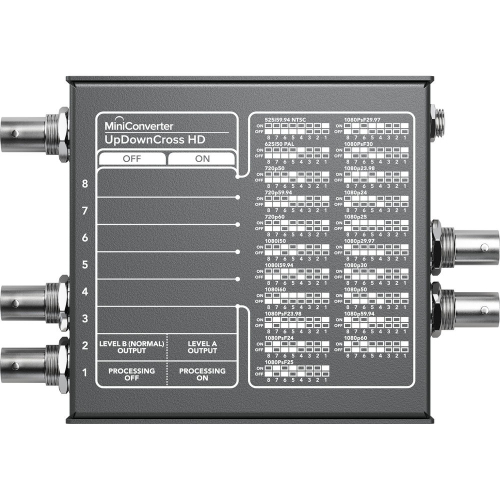

Features include automatic signal detection, reference in, reclocking, and audio delay for A/V sync. Settings can be easily changed using the diagrammed function switches, or via the OS X/Windows-compatible converter software. This compact converter features a sturdy metal housing, and includes a 12V universal power supply with a locking connection to prevent accidental disconnection.
CONNECTIONS
|
|
Video Inputs |
3G/HD/SD-SDI: 1 x BNC
|
HDMI: 1 x Type A | |
Video Output |
3G/HD/SD-SDI: 2 x BNC
|
Loop-Through Out: 1 x BNC | |
HDMI: 1 x type A | |
Reference Input |
Black Burst & Tri-Level Sync: 1 x BNC
|
Reclocking |
Yes
|
SDI Compliance |
SMPTE 424M-B/296M/292M/259M
|
ITU-R BT.656/BT.601 | |
SDI Video Sampling |
4:02:02
|
SDI Colour Space |
YUV
|
SDI Audio Sampling |
48 kHz, 24-bit
|
Supported Video Standards |
SDI:
|
1080p 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF 24/23.98 | |
1080i 60/59.94/50 | |
720p 60/59.94/50 | |
HDMI: | |
1080p 60/59.94/50/30/29.97/25/24/23.98 | |
1080i 60/59.94/50 | |
720p 60/59.94/50 | |
NTSC SD: 525i 59.94 | |
PAL SD: 625i 50 | |
COMPUTER FORMATS
|
|
Scaling |
DVI Resolutions:
|
1080p 60/59.94/50/30/29.97/25/24/23.98 | |
1080i 60/59.94/50 | |
720p 60/59.94/50 | |
625i 50 | |
525i 59.94 | |
1024 x 768 | |
800 x 600 | |
640 x 480 | |
POWER
|
|
Power Supply |
12 VDC
|
Operation Voltage |
6 to 36 VDC
|
Power Consumption |
5 W
|
PHYSICAL & ENVIRONMENTAL
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C
|
Storage Temperature |
-4 to 113°F / -20 to 45°C
|
Relative Humidity |
0 to 90%, non-condensing
|
Dimensions |
13.5 x 9.2 x 2.3 cm
|
Weight |
0.247 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Mini Converter UpDownCross HD
- 12 VDC Universal Power Supply with International Adapters
