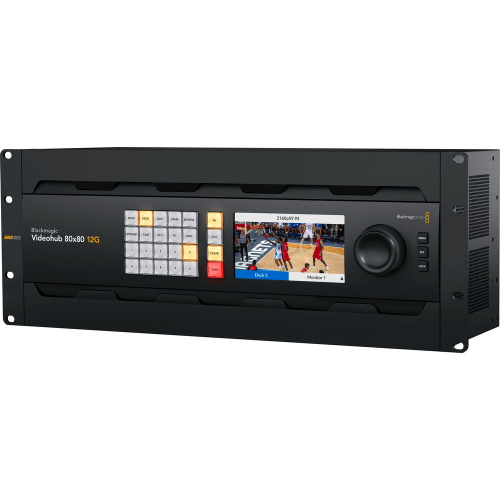

Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router

Support a mix of multiple video formats with the Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router. This advanced router provides 80 12G-SDI inputs and 80 12G-SDI outputs, allowing you to route any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 80x80 12G consolidates all your SDI cables into one central hub, enabling easy connection of any video input to any output, or even a single input to multiple outputs. This streamlined setup eliminates cable clusters and complex diagrams, making it ideal for use with multiple HyperDeck recorders for redundant mastering, routing video to streaming processors across broadcast platforms, or adding extra inputs to an ATEM switcher.

12G-SDI Multi-Rate Connections

  • Multi-rate 12G-SDI connections enable you to route up to 80 different video standards at the same time.
  • Supports up to DCI 4K60 video resolutions.
  • Provides 4:2:2 8 or 10-bit colour routing in any standard.
  • Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.

SDI Reclocking

Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.

Reduces or eliminates signal loss and jitter when using longer cables.

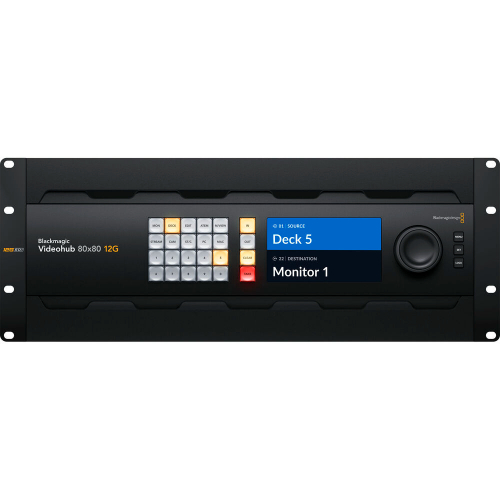

Front-Panel Controls

  • A sleek front panel offers multiple control options.
  • Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.
  • The machined metal spin knob provides precise control using an electronic clutch.

Optional Hardware Control Panels

  • Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
  • Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.

Flexible Control

The Mac and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.

Built-In LCD

  • View your live input before routing the signal on the built-in 5" LCD screen.
  • Bottom labels enable you to scroll through your sources in alphabetical order.
  • Eliminates the need to add an external SDI monitor to your setup.

Setup Utility and SDK

Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.

Multiple Language Support

Customised support is available in:

  • English, Chinese, Japanese, Korean
  • Spanish, German, French, Russian
  • Italian, Portuguese, Turkish, Polish, Ukrainian
PROCESSING


Switching Type
Pushbutton, Software
Processing Resolution
DCI 4K at 60
Colour Processing
8-bit 4:2:2
10-bit 4:2:2
12-bit 4:4:4
Audio Processing
48 kHz / 24-bit

INPUT


Video Inputs
80x BNC (12G-SDI)
Input Video Format
SDI (10/12-bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Input
SDI

OUTPUT


Video Outputs
80x BNC (12G-SDI)
Output Video Format
SDI (10/12-bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output
SDI

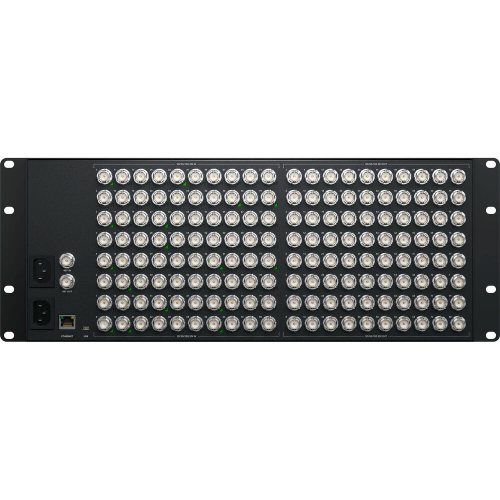

CONNECTIVITY


Other I/O
1x RJ45 LAN
1x USB-C
1x BNC Reference Input
1x BNC Reference Output
Video Standard Compliance
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU -R BT.601/BT.656

DISPLAY


Display Size
5"

HARDWARE


OS Compatibility
macOS 12 or Later / Windows 10 or Later
OS Compatibility
macOS 12.0
macOS 13.0 or Later
Windows 10 (64-Bit Only)
Windows 11

POWER


Power I/O
2x IEC C14 (100 to 240 VAC ) Input
Power Consumption
92 W

GENERAL


Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
Rack Form Factor
4 RU
Dimensions
48.3 x 23.8 x 17.68 cm
Weight
10.9 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router
  • Router Control Software
  • Internal Software Updater Application
