Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit

The UltraStudio 4K Mini Thunderbolt 3 from Blackmagic Design connects your Thunderbolt 3 computer to a range of video components for capture, playback, or streaming. This portable unit captures up to DCI 4K60 4:2:2 via single-link 12G-SDI or up to DCI 4K30 4:2:2 video through HDMI. Record 12-bit High Dynamic Range (HDR) footage at rates up to DCI 4K30 and 8-/10-bit video at rates up to DCI 4K60. A built-in LCD screen allows you to monitor your signal, and an SD card reader provides instant access to your SD media. The compact UltraStudio 4K Mini's Thunderbolt 3 interface offers ultra-fast connectivity and can trickle-charge a connected computer. Audio features include 16-channel SDI and 8-channel HDMI embedded input and output, a 3-pin XLR audio input, and a headphone output.

Versatile Compatibility

The UltraStudio Mini 4K Thunderbolt 3 supports both compressed and uncompressed video, is Windows, macOS, and Linux compatible, and supports the most popular codecs. The UltraStudio 4K Mini also supports 3D capture and playback via HDMI, plus 3D SDI playback at rates up to DCI 4K30. The free version of DaVinci Resolve and the additional software are included via a QR code download. Power the UltraStudio Mini 4K Thunderbolt 3 via its internal 100-240 VAC adapter.

Thunderbolt 3 Connectivity

Lightning-fast Thunderbolt 3 connection with 45W power out for charging a connected laptop.

Compact Design

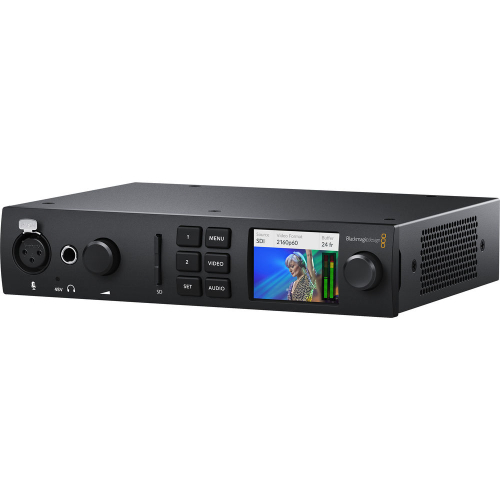

Portable design with front-panel control buttons, LCD with video, audio, and status information, XLR mic input, and an SD card slot.

Supports up to DCI 4K60 Video

8/10/12-bit HDR capture and playback with multi-rate support from SD to DCI 4K60.

Supported Software

Including but not limited to:

  • DaVinci Resolve
  • Fusion
  • Final Cut Pro X
  • Adobe Premiere Pro CC
  • Avid Media Composer
  • Adobe After Effects CC
  • Avid Pro Tools
  • Steinberg Cubase
  • Steinberg Nuendo
  • Adobe Photoshop CC

Included Software

MacOS and Windows

  • DaVinci Resolve, Media Express
  • Disk Speed Test, LiveKey
  • Blackmagic Desktop Video Utility
  • Blackmagic driver

Linux

  • Media Express
  • Blackmagic Desktop Video Utility
  • Blackmagic driver
System Connection
USB-C (Thunderbolt 3)
Embedded Audio
SDI: 16-Channel
HDMI: 8-Channel

STANDARDS

HDR Support
HDR10, Hybrid Log Gamma

HARDWARE

OS Compatibility
macOS 11.1 to 12.0 or Later
Windows 10 to 11 (64-Bit Only)
Linux
Power I/O
1x USB-C Output
1x Barrel Input
Power Consumption
Power Supply: 100 to 240 VAC (75.3 W)

GENERAL

Certifications
FCC, ICES
Dimensions
17.8 x 4.6 cm
Weight
1.2 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit
  • QR Code for Software Download
