Blackmagic Design Teranex Mini SDI to HDMI 12G Converter
SKU code: 61349
- Advanced High-Data Rate Signal Converter
- Supports Up to 4K DCI 4096x2160p Signals
- 12G-SDI Input and Loopout
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Units 1U Rack-Mountable in 19" Rack
- Manage Numerous Units from a Mac or PC
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

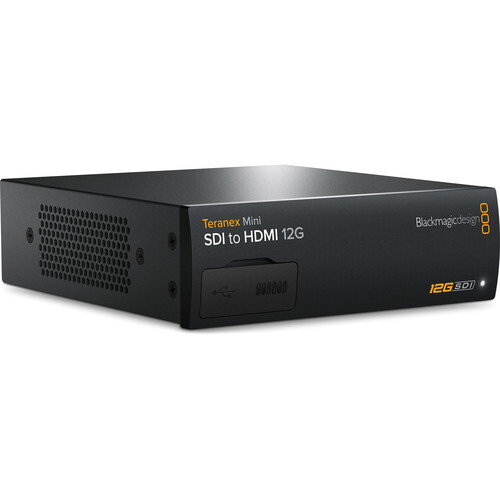

Blackmagic Design Teranex Mini SDI to HDMI 12G Converter
The Teranex Mini SDI to HDMI 12G Converter from Blackmagic Design is a professional-grade solution for high-quality SDI to HDMI conversion. Supporting up to 12G-SDI data rates with intelligent heat dissipation, this converter is ideal for rack-mount, cable duct, and desktop installations. It allows you to connect a Full 4K DCI 4096x2160p SDI signal and output it to an HDMI display in the same resolution. The device also features an SDI loop-out, enabling you to monitor the signal locally. For audio, you can de-embed it from the SDI signal and route it separately via full-size XLR connectors, which are switchable between balanced analog and AES/EBU digital audio. Additional features include an Ethernet control and PoE port for remote management and seamless integration into professional environments.
The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19" rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.

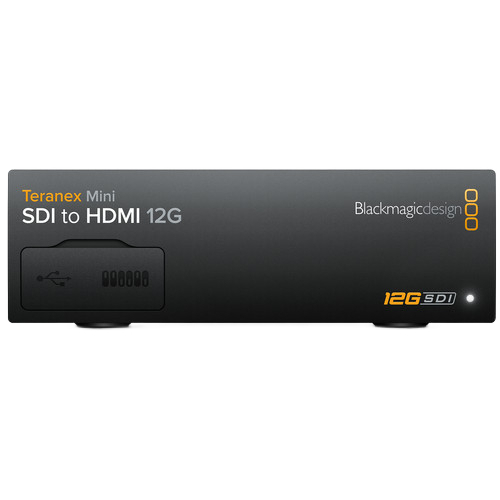

A major benefit of the Teranex Mini is that the standard front panel can be replaced with an optional Smart Panel that features a spin knob, colour LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels as well as verify timecode and the video standard being converted. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus as well as see exactly what you're converting. If you're in a larger facility using numerous converters, you can manage all of them over Ethernet from a Mac or Windows computer using the included Converter Utility software.
What enables the Teranex Mini to dissipate heat so effectively and prevent overheating is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimising noise. Moreover, if the Teranex Mini gets too hot, you'll instantly receive a notification through the remote control Ethernet utility and on the front panel. When multiple units are rack-mounted side by side, each Teranex Mini works together to pull air through the rack keeping all units cool and providing redundancy for each one.
The Teranex Mini SDI to HDMI 12G Converter is built using high-quality Teranex video processing technology and is ideal for all broadcast, post production, and other professional video applications.

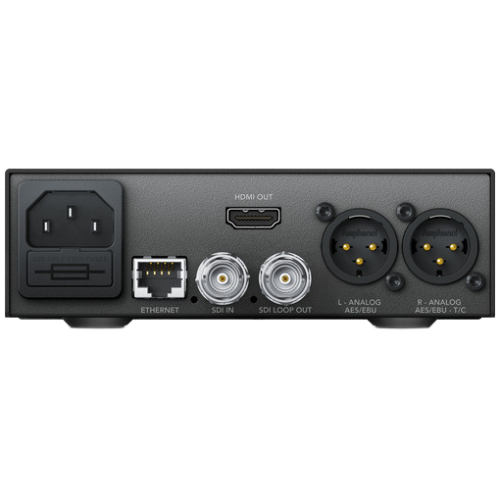

INPUTS / OUTPUTS
|
|
|
|
Video Inputs |
1x BNC (12G-SDI) Female
|
Video Outputs |
1x HDMI (2.0a)
|
1x BNC (Loop Output) | |
Audio Outputs |
2x XLR 3-Pin Stereo AES/EBU Female
|
Other I/O |
1x XLR 3-Pin Timecode Output (Shared With Right Audio XLR)
|
1x RJ45 Control, Firmware, PoE Input | |
1x Mini-USB Firmware Input | |
FORMAT SUPPORT
|
|
Input Video Format |
SDI (4:4:4/4:2:2 RGB, YUV)
|
DCI 4K at 23.98/24/25 fps | |
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2K at 23.98/24/25 fps | |
DCI 2KPsF at 23.98/24/25 fps | |
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF at 23.98/24/25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
Output Video Format |
HDMI (4:2:2 YUV)
|
DCI 4K at 23.98/24/25 fps | |
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF at 23.98/24/25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
Embedded Audio |
HDMI/SDI: 8-Channel
|
STANDARDS
|
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
|
HARDWARE
|
|
OS Compatibility |
Windows 10 (64-Bit Only)
|
macOS 10.15 to 11.1 or Later | |
POWER
|
|
Power I/O |
1x IEC C14 (100 to 240 VAC ) Input
|
PoE Support |
PoE+ 802.3at
|
Power Consumption |
16 W
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
0 to 90% ()
|
GENERAL
|
|
Dimensions |
16.99 x 14 x 4.45 cm
|
Weight |
0.581 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Teranex Mini SDI to HDMI 12G Converter
- Software SD Card
