Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
SKU code: 61348
- Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
- Accepts Third-Party Calibration Probes
- 12G-SDI I/O / DisplayPort/USB-C D.P. Out
- Selectable, On-Screen Scopes
- Auto-Convert 2SI and Square Division
- Supports HDR Workflows
- Supports 33-Point 3D LUTs
- Front-Panel Interface, Audio Meters
- Rack-Mountable with Separate Kit
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

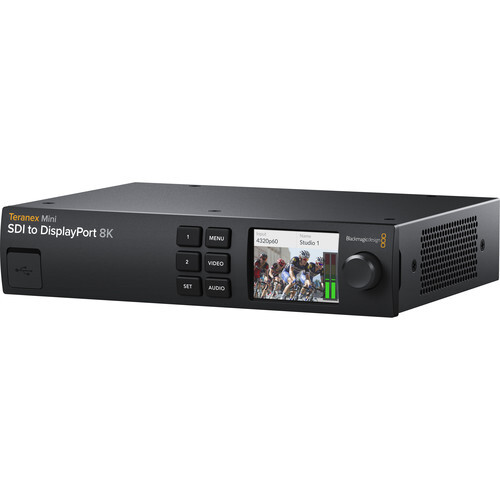

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
The Teranex Mini SDI to DisplayPort 8K HDR Converter from Blackmagic Design offers an advanced solution for 8K monitoring, perfect for on-set and post-production environments. With four 12G-SDI inputs, the converter can handle independent 4K signals or combine them for an 8K input signal (either DCI 8K or split 8K into four UHD signals). The DisplayPort outputs allow for seamless connection to professional monitors like the Apple Pro Display XDR, ensuring top-tier display quality. For precise colour calibration, third-party probes such as the SpectraCal C6, X-Rite i1 Display Pro, and Klein K10-A can be used. The built-in colour LCD screen not only displays the video image but also offers two on-screen scopes (WFM, Parade, Vector, or Histogram), providing enhanced visual analysis for critical content creation workflows.

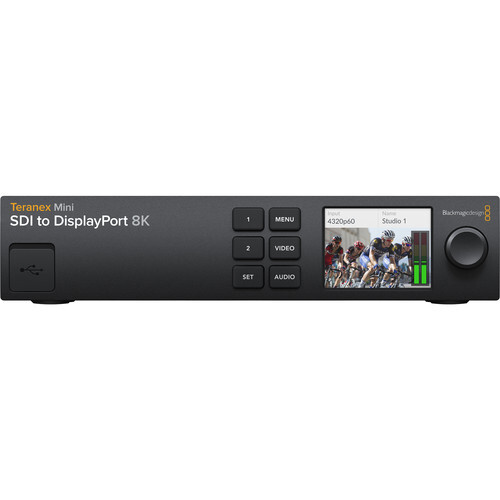

The 8K is available on the four SDI outputs, via the single USB-C DisplayPort output, or the two full-size DisplayPort outputs for monitors that support quad HDMI inputs. If you are not connected to an 8K monitoring solution, a built-in down-converter enables you to display the 8K input video on an Ultra HD or HD monitor. This unit will convert between 2SI and square division automatically. The Mini SDI to DisplayPort 8K HDR solution supports a variety of HDR workflows including PQ and HLG, and it supports both Rec. 202 and Rec. 709 as well as 100% of the DCI-P3 format. Two independent 3D LUTs can be loaded at the same time, and you can switch between them from the unit's front panel. In addition to the LCD video screen, the front of the Teranex Mini SDI to DisplayPort 8K HDR Converter features a rotating selection knob and six front-panel buttons for navigating. Use the included rubber feet for desktop mounting or support the converter with the separately available Teranex Mini Rack Shelf.
The USB-C port is for DisplayPort over USB-C. Note that this requires a certified DisplayPort over USB-C cable, which is different from a generic USB-C cable or a Thunderbolt cable.

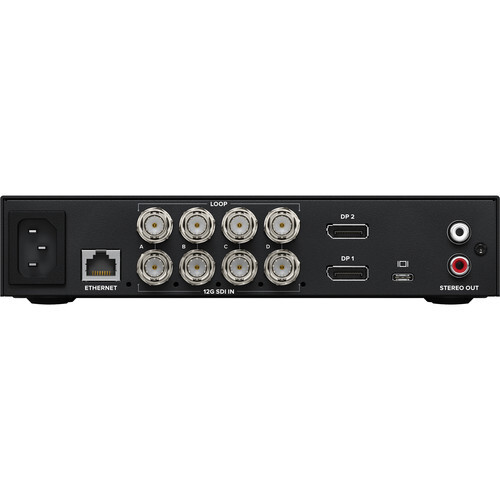

INPUTS / OUTPUTS
|
|
|
|
Video Inputs |
4x BNC (12G-SDI)
|
Video Outputs |
4x BNC (12G-SDI) (Loop Output)
|
2x DisplayPort (DisplayPort 1.4) | |
1x USB-C (DisplayPort 1.4) | |
Audio Outputs |
2x RCA Analog
|
Other I/O |
1x RJ45 Control
|
1x USB-C | |
FORMAT SUPPORT
|
|
Input Video Format |
SDI (4:4:4/4:2:2 RGB, YUV)
|
DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2KPsF 23.98/24/25/29.97/30 fps | |
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF 23.98/24/25/29.97/30 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
Output Video Format |
SDI (4:4:4/4:2:2 RGB, YUV)
|
DCI 8K at 25/29.97/30/47.95/48/50/59.94/60 fps | |
8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2KPsF 23.98/24/25/29.97/30 fps | |
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF 23.98/24/25/29.97/30 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
Output Audio Format |
Analog: 48 kHz / 24-Bit
|
Embedded Audio |
SDI: 16-Channel
|
STANDARDS
|
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
|
HARDWARE
|
|
Display Size |
2.2"
|
OS Compatibility |
Windows 10
|
macOS 10.14 | |
macOS 10.1 or Later | |
Power I/O |
1x IEC C14 Input
|
Power Consumption |
Device: 100 to 240 VAC (35 W)
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
0 to 90%
|
GENERAL
|
|
Dimensions |
21.01 x 17.6 x 4.39 cm
|
Weight |
1.18 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
- Rubber Foot
