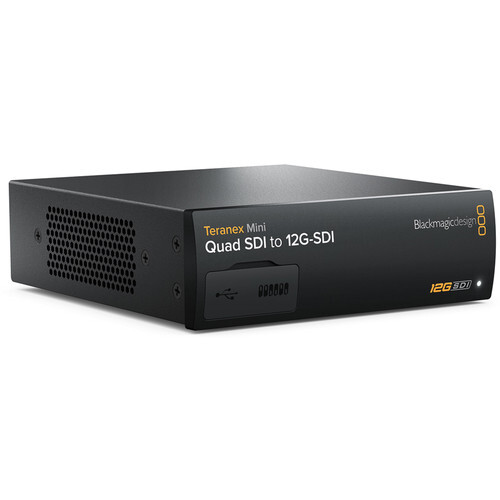

Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter
SKU code: 61344
- Quad-Link 12G-SDI Input
- 2 Single-Link 12G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- Requires IEC C14 Power Cable
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter

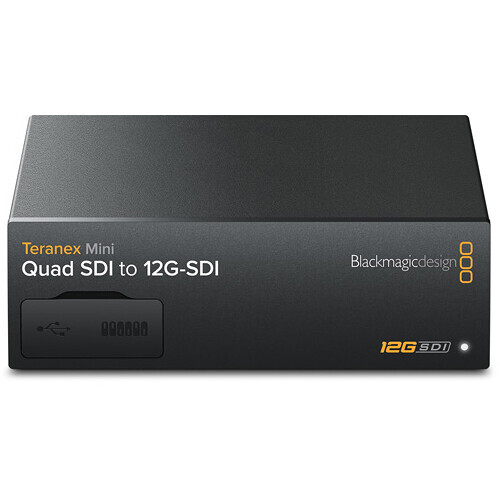

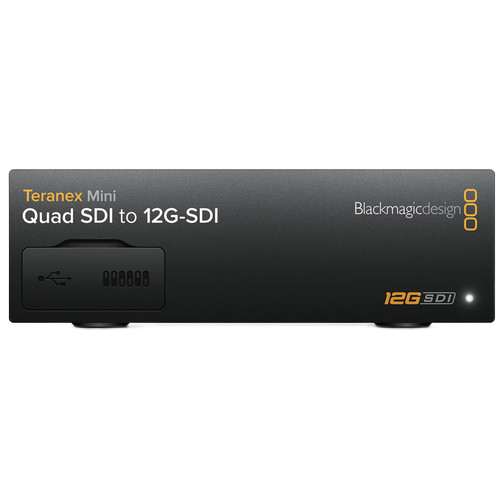

Expand your workflow capabilities with the Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter. This compact, low-profile converter allows you to connect Quad-Link SDI sources to 12G-SDI equipment, ensuring compatibility with high-resolution video setups. Its sleek black enclosure fits seamlessly into any studio or post-production environment, maintaining a clean aesthetic. With Ethernet connectivity, the included control software lets you easily manage and adjust the unit to your needs, while optional front panel controls with a built-in confidence monitor offer additional convenience. DIP switch controls behind the front panel flap provide further manual adjustments for precise operation.
Quad-Link and 12G-SDI protocols support high resolution video including DCI and UHD 4K as well as HD and SD signals. Automatic input signal detection acknowledges the signal resolution and configures the input accordingly. 24-bit 48 kHz broadcast-quality audio is supported.

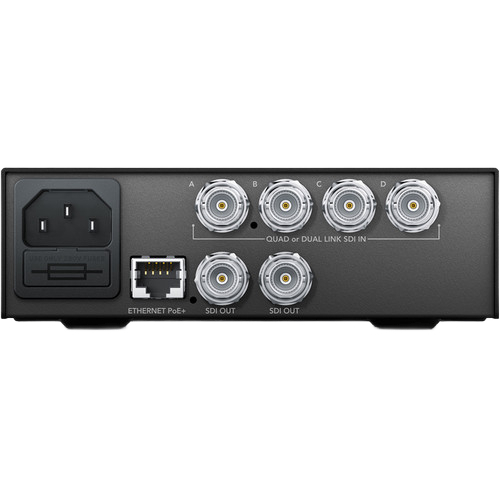

Video Inputs |
4 x BNC 12G-SDI
|
Video Outputs |
2 x BNC 12G-SDI
|
Other I/O |
1 x RJ-45 Ethernet
|
1 x USB | |
Re-clocking |
Yes
|
Format Support |
4096 x 2160 23.98/24/25/29.97/30
|
3840 x 2160 23.98/24/25/29.97/30/50/60 | |
2048 x 1080p 23.98/24/25 | |
2048 x 2160PsF 23.98/24/25 | |
1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25 | |
1080i 50/59.94/60 | |
720p 50/59.94/60 | |
NTSC | |
PAL | |
SDI Video Sampling |
4:2:2, 4:4:4
|
SDI Audio Sampling |
24-bit, 48 kHz
|
SDI Colour Space |
YUV, RGB
|
Settings Control |
Front-panel mini switches
|
USB | |
Ethernet | |
Front-mounted smart panel (available separately) | |
PoE+ (Power over Ethernet) | |
Power Consumption |
16 W
|
Operational Voltage Range |
90-240 VAC
|
Environmental |
Operating Temperature: 32 to 104°F / 0 to 40°C
|
Storage Temperature: -4 to 140°F / -20 to 60°C | |
Dimensions |
14 x 17 x 4.4 cm
|
Weight |
0.580 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter
- Software SD Card with Manual
