Blackmagic Design Teranex Mini HDMI to SDI 12G Converter
SKU code: 61341
- Advanced High-Data Rate Signal Converter
- Supports Up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI Outputs
- Run 4096x2160p 70 ft Using 6G-SDI Cables
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Units 1U Rack-Mountable in 19" Rack
- Manage Numerous Units from a Mac or PC
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

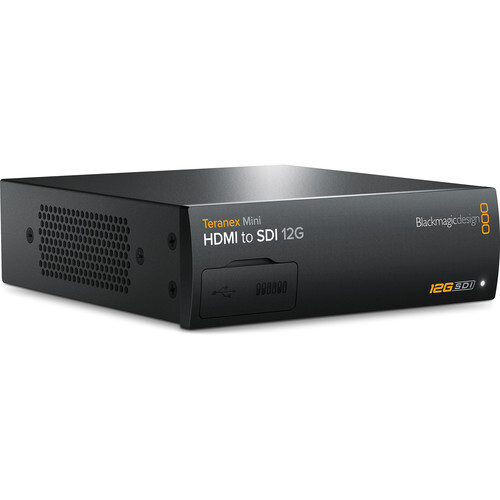

Blackmagic Design Teranex Mini HDMI to SDI 12G Converter
The Blackmagic Design Teranex Mini HDMI to SDI 12G Converter offers a professional solution for converting HDMI signals to 12G-SDI outputs, supporting up to Full 4K DCI (4096 x 2160p) resolution. Ideal for installations requiring versatility and long-distance signal transmission, this compact unit features intelligent heat dissipation and robust I/O capabilities. It supports two independent 12G-SDI outputs and allows for seamless routing of 4K signals over distances of up to 70 ft using 6G-SDI cables, or over 250 ft when 12G-SDI cables are used. Additionally, the converter supports embedded audio and offers full-size XLR connections for both balanced analog and AES/EBU digital audio, making it a comprehensive solution for professional broadcast and AV environments. Ethernet control and PoE support further enhance its functionality for remote management and installation flexibility.

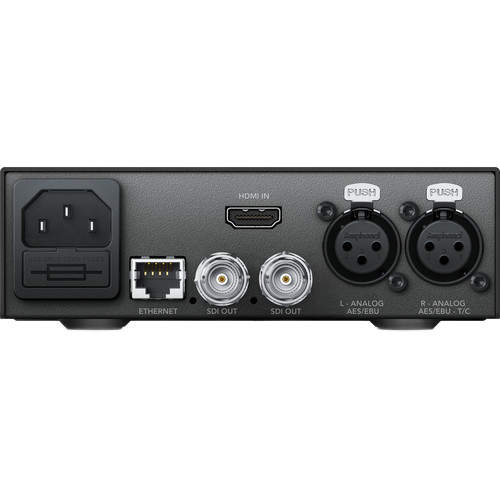

The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19" rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.
A major benefit of the Teranex Mini is that the standard front panel can be replaced with an optional Smart Panel that features a spin knob, colour LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels as well as verify timecode and the video standard being converted. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus as well as see exactly what you're converting. If you're in a larger facility using numerous converters, you can manage all of them over Ethernet from a Mac or Windows computer using the included Converter Utility software.
What enables the Teranex Mini to dissipate heat so effectively and prevent overheating is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimising noise. Moreover, if the Teranex Mini gets too hot, you'll instantly receive a notification through the remote control Ethernet utility and on the front panel. When multiple units are rack-mounted side by side, each Teranex Mini works together to pull air through the rack keeping all units cool and providing redundancy for each one.
The Teranex Mini HDMI to SDI 12G Converter is built using high-quality Teranex video processing technology and is ideal for all broadcast, post production, and other professional video applications.
- Can be used desktop mounted or installed concealed in cable ducts
- Built-in 90-240V power supply requiring only a standard IEC power cable, sold separately
- An array of mini switches allow instant settings changes
- Front panel is replaceable with an optional Smart Panel featuring controls and an LCD
- Full SDI re-clocking and low jitter
HDMI Input |
1x HDMI 2.0 type A
|
SDI Video Output |
2x SDI on BNC (automatically matches SD, HD, 3G, 6G, 12G-SDI HDMI video input)
|
XLR Audio Input |
2 channels professional balanced analog audio via XLR connectors
|
Right XLR can be configured for timecode input | |
AES/EBU Audio Input |
4 channels professional 110 ohm balanced digital audio via XLR connectors
|
Right XLR can be configured for timecode input | |
Multi Rate Support |
Automatic switching between SD, HD, 2K, and 4K
|
Updates and Configuration |
USB or Ethernet
|
Re-Clocking |
Yes
|
SD Format Support |
525/29.97 NTSC, 625/25 PAL
|
HD Format Support |
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
|
2K Format Support |
2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25
|
4K Format Support |
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
|
SDI Compliance |
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, and ITU-R BT.601
|
SDI Video Rates |
SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI
|
SDI Video Sampling |
4:2:2 and 4:4:4
|
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit
|
SDI Colour Precision |
4:2:2 and 4:4:4
|
SDI Colour Space |
YUV
|
HDMI Format Support |
525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
|
HDMI Colour Space |
REC 601, REC 709
|
HDMI Colour Precision |
YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
|
Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources
|
Always confirm copyright ownership before capture or distribution of content | |
Software Control |
Mac OS X and Windows software upgrade via USB and Ethernet
|
Internal Software Upgrade |
Via included updater application
|
Basic Settings Control |
Mini Switches, USB, and Ethernet via free software utility
|
Power Supply |
1x built-in international AC power supply with IEC C14 inlet
|
90 - 240 VAC input | |
Power Over Ethernet |
Can be powered via 48 VDC using PoE (Power-over-Ethernet)
|
Power Consumption |
15 W
|
Operational Voltage Range |
90 - 240 VAC
|
Operating Temperature |
32 to 104°F (0 to 40°C)
|
Storage Temperature |
-4 to 140°F (-20 to 60°C)
|
Dimensions |
14 x 4.6 x 17 cm (with SDI port included)
|
Weight |
0.6 Kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Teranex Mini HDMI to SDI 12G Converter
- Software SD Card
