Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter
SKU code: 61337
- 12G-SDI Input, 12G-SDI Loop Output
- 3G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter

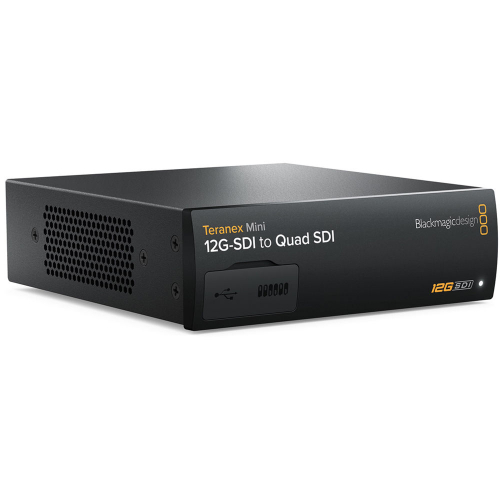

The Teranex Mini 12G-SDI to Quad SDI Converter from Blackmagic Design allows you to distribute high-resolution 12G-SDI sources to Quad-Link SDI equipment. Encased in a sleek, low-profile design, this converter is perfect for studio and post-production workflows or setups with multiple displays, including video walls. It features a 12G-SDI input, a 12G-SDI loop output, and four 3G-SDI outputs that automatically switch between DCI 4K, UHD 4K, HD, and SD sources. Supporting up to 16 channels of 24-bit, 48 kHz broadcast-quality audio, this versatile unit ensures seamless integration in professional AV environments.

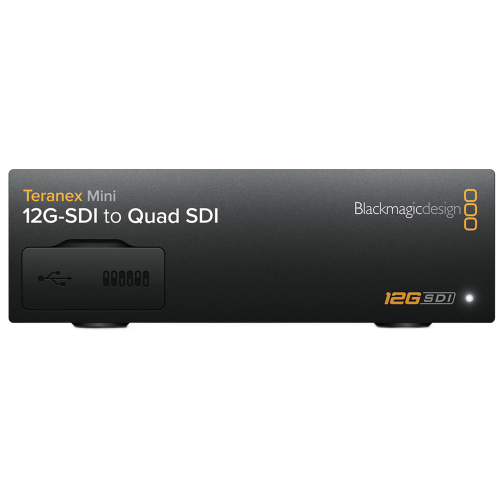

Connecting the unit via Ethernet enables you to use the included control software to make adjustments to fit your needs, as well as power the unit via PoE (Power-over-Ethernet). DIP switch controls and a USB configuration port are also available on the front panel.
OS Compatibility
macOS 10.14 Mojave, macOS 10.15 Catalina or later
Windows 8.1 and 10

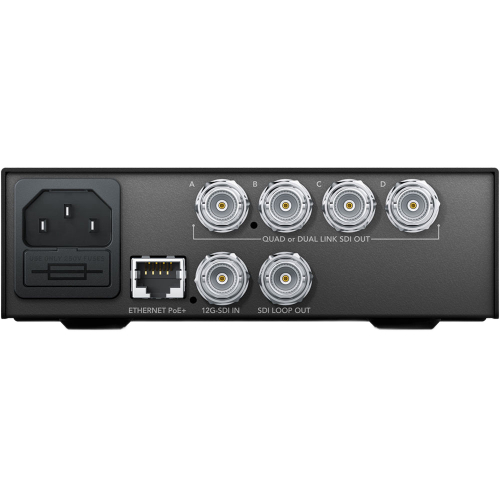

INPUTS / OUTPUTS
|
|
|
|
Video Inputs |
1x BNC Female
|
Video Outputs |
4x BNC (3G-SDI) Female
|
1x BNC (12G-SDI) Female (Loop Output) | |
Other I/O |
1x RJ45 LAN, PoE Input/Output
|
1x USB-A Firmware Input | |
FORMAT SUPPORT
|
|
Input Video Format |
SDI (4:4:4/4:2:2 RGB, YUV)
|
DCI 4K at 23.98/24/25 fps | |
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps | |
DCI 2K at 23.98/24/25 fps | |
DCI 2KPsF at 23.98/24/25 fps | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF at 23.98/24/25 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Output Video Format |
SDI (4:4:4/4:2:2 RGB, YUV)
|
DCI 4K at 23.98/24/25 fps | |
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps | |
DCI 2K 23.98/24/25 fps | |
DCI 2KPsF 23.98/24/25 fps | |
1080p 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF 23.98/24/25 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
576i / 625 lines 50 fps | |
480i / 525 lines 59.94 fps | |
Embedded Audio |
SDI: 16-Channel
|
STANDARDS
|
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
|
POWER
|
|
Power I/O |
1x IEC C14 Input
|
PoE Support |
PoE+ 802.3at
|
Power Consumption |
Device: 90 to 240 VAC (16 W)
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
0 to 90%
|
GENERAL
|
|
Dimensions |
16.99 x 14 x 4.45 cm
|
Weight |
0.581 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter
- SD Card with Configuration Software
