Blackmagic Design Teranex AV
SKU code: 61335
- Dual SD/HD/3G/6G/12G-SDI I/O
- Quad-Link SDI Output
- HDMI 2.0 Input and Output
- Supports SD, HD, 2K, and UHD 4K
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- 24-Bit, 48 kHz Audio
- XLR and RCA Audio Inputs

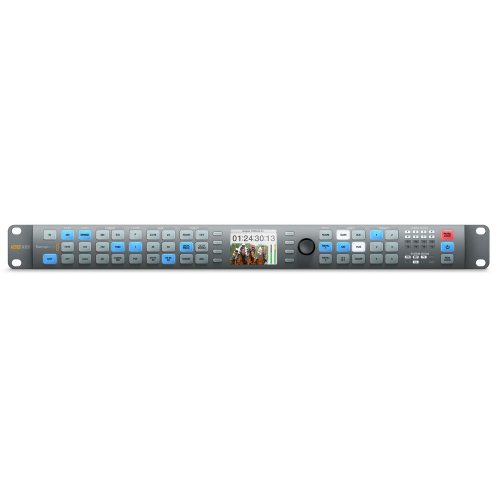

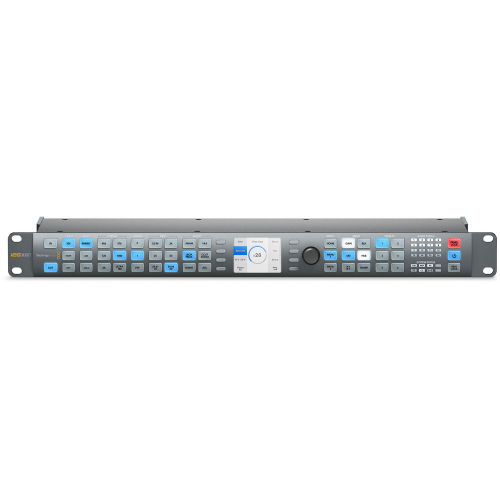

- Front-Panel Controls
- Software Control via RJ45 Ethernet
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:

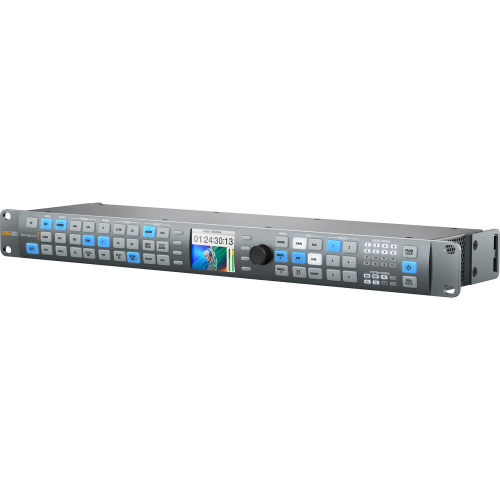

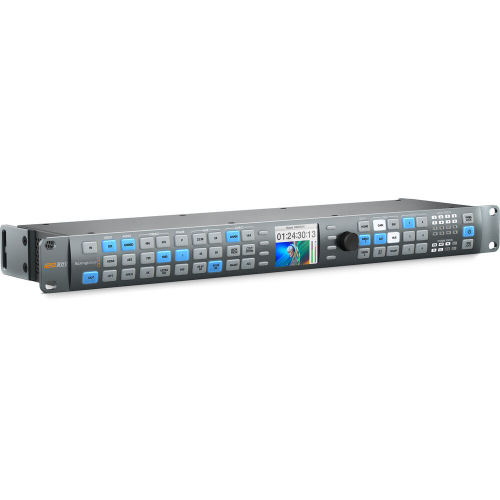

Blackmagic Design Teranex AV
Built for professional A/V installations and live events, the Blackmagic Design Teranex AV provides 1089 up, down, cross, and standards conversions, supporting formats from NTSC and PAL to 2K and UHD 4K video. All conversions process in real-time with minimal latency (approx. two frames). Featuring extensive input and output options, it handles both professional and consumer sources. SDI inputs support SD, HD, 3G, 6G, and 12G-SDI, and the HDMI input is v2.0 compliant. Optional fibre connectivity can be added with an SFP cage, while embedded and analog audio are supported via XLR and RCA inputs. Outputs include SDI and HDMI with four additional SDI outputs for quad-link 4K or mirrored outputs. Control is accessible through front panel navigation or via Ethernet, making it ideal for integrated setups.
Real-Time Video Processing and Aspect Ratio Conversion
Includes noise reduction, cadence detection with insertion/removal, scene cut detection, colour correction, and proc amp control. Real-time variable and fixed aspect ratio conversions.
Format Conversion
Real-time colour space conversion, up conversion, down conversion, cross conversion, and SD/HD/Ultra HD standards conversion.
Test Patterns
- SMPTE 75% bars
- Full-field 75% bars
- Convergence grid
- Multi-burst
- Black-burst
Output Switching
Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video

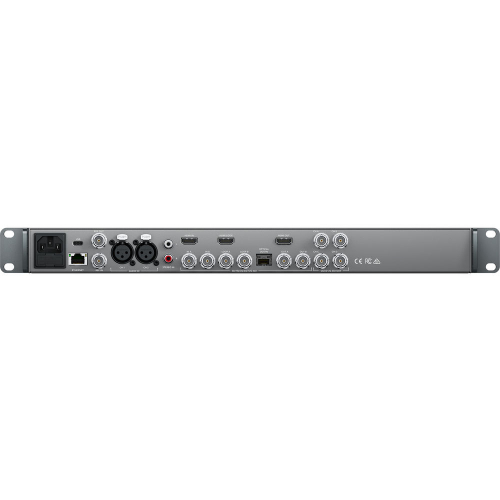

Inputs |
2 x BNC, SD/HD/3G/6G/12G-SDI (inputs can be separate or unified for dual-link functionality)
|
1 x HDMI Type A, v2.0 | |
1 x Optical fiber (optional) | |
1 x Stereo RCA, analog audio | |
2 x XLR, balanced analog audio, AES/EBU digital audio | |
1 x BNC, reference | |
1 x USB-C | |
1 x RJ45, Ethernet | |
Outputs |
2 x BNC, SD/HD/3G/6G/12G-SDI (outputs can be separate or unified for dual-link functionality)
|
4 x BNC, SD/HD/3G-SDI (quad-link 4K output or replicated SDI output option) | |
1 x HDMI Type A, v2.0 | |
1 x BNC, reference output | |
Format Support |
3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60
|
2048 x 1080p: 23.98/24 | |
2048 x 1080PsF: 23.98/24 | |
1080p: 23.98/24/25/29.97/30/50/59.94/60 | |
1080PsF: 23.98/24/25/29.97/30 | |
1080i: 50/59.94/60 | |
720p: 50/59.94/60 | |
NTSC | |
PAL | |
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
|
SDI Metadata Support |
VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
|
Audio Sampling |
HD: 24-bit, 48 kHz
|
SD: 20-bit, 48 kHz | |
Video Sampling |
0.17
|
Colour Depth |
10-bit
|
Colour Space |
REC 601, REC 709
|
Compatible Operating Systems |
Mac OS X 10.10 or later
|
Windows 8.1, 10 | |
Power Input |
1 x IEC, 100-240 VAC, 50-60 Hz
|
Environmental |
Operating Temperature: 41 to 122°F / 5 to 50°C
|
Storage Temperature: -4 to 113°F / -20 to 45°C | |
Dimensions |
48.3 x 4.4 x 12.7 cm
|
Weight |
2 kg
|
* Specifications subject to change by the manufacturer without notice.
