Blackmagic Design Studio Fiber Converter

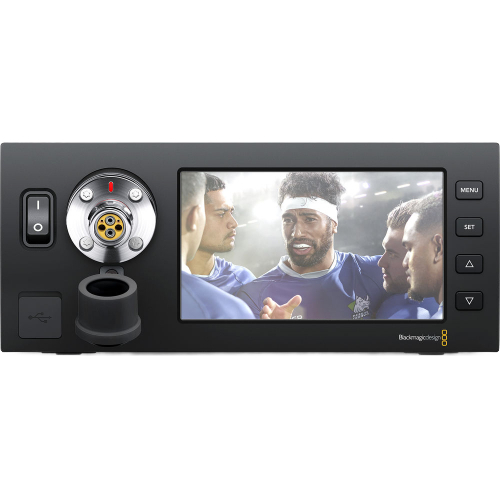

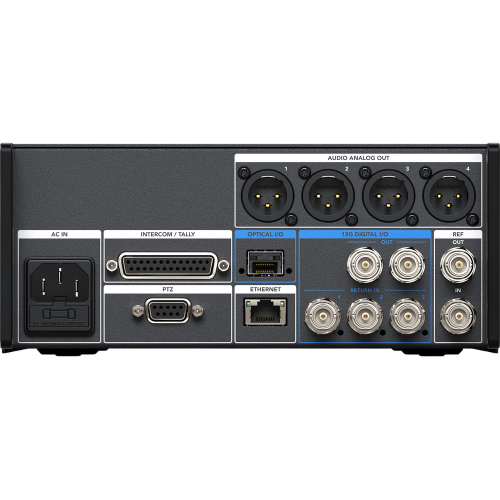

The Blackmagic Design Studio Fiber Converter provides a robust bi-directional fiber optic interface for the Blackmagic Camera Fiber Converter, supporting communication up to 1.6 miles away. Perfect for OB vans, television studios, and large venues, this converter carries video, audio, communication, and control signals over a single SMPTE fiber connection. The rear panel includes SDI connections for HD or UHD 4K video, HD return feeds, and audio breakout through four XLR connections. Additional ports include reference in/out, PTZ, intercom/tally on D connectors, Ethernet, and SFP fiber (with optional SFP cage). A single SMPTE fiber connector for the Camera Fiber Converter and a 12.7cm display are located on the front panel for streamlined monitoring.
| Connections |
SMPTE Optical Fiber: 1 x SMPTE 304
|
| 12G-SDI Input: 3 x BNC | |
| 12G-SDI Output: 2 x BNC | |
| Analog Audio Output: 4 x XLR | |
| Optical Fiber Output: 1 x SFP | |
| Computer: 1 x USB Type-C | |
| Video Standards |
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
|
| 1080p: 60/59.94/50/30/29.97/25/24/23.9 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI Standards |
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
|
| Audio Sampling |
24-bit, 48 kHz
|
| Video Sampling |
4:02:02
|
| Bit Depth |
10-bit
|
| Colour Space |
REC 709, REC 2020
|
| Power |
110 - 240 VAC
|
| Environmental |
Operating Temperature: 32 to 104°F / 0 to 40°C
|
| Storage Temperature: -4 to 113°F / -20 to 45°C | |
| Relative Humidity: 0-90%, non-condensing | |
| Dimensions |
21 x 8.8 x 37.2 cm
|
| Weight |
2.8 kg
|
* Specifications subject to change by the manufacturer without notice.
