Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
SKU code: 61332
- Supports SD/HD/3G/6G-SDI
- Auto Format Sensing & Selection
- Loop-Through SDI I/O
- Video, Waveform, Vectorscope Display
- Software Control, Tally System, Rack Mount
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:

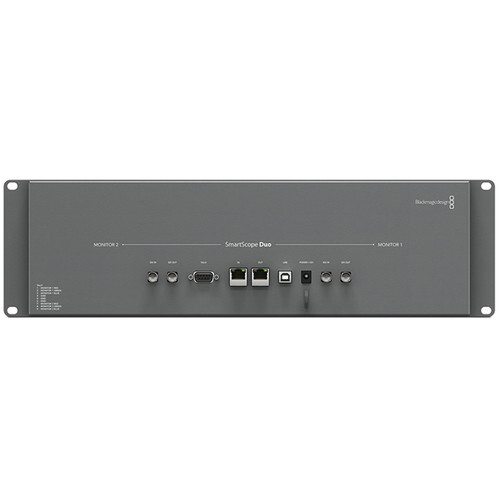

Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors

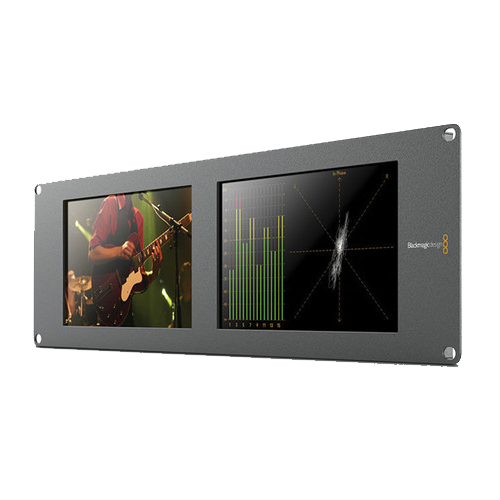

The Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors provide an advanced monitoring solution for both studio and on-location productions. Each 8" monitor supports video resolutions up to 3840 x 2160 at 30p, offering clear and detailed displays. With auto-sensing/selecting SDI inputs, the monitors automatically adjust to any input format without the need for manual configuration. This ensures seamless integration with a wide range of video sources. The monitors allow you to choose between displaying the input video or one of six scope displays, with the input video passing through to downstream devices via the loop-through SDI inputs and outputs. Ideal for high-quality monitoring in both live and post-production environments, the SmartScope Duo 4K provides reliable, precise video monitoring with versatile functionality.
You use the USB connector to initialise the monitor on your network; after that you can control the monitors using the supplied software via the Ethernet connector. This allows you to adjust the monitors' brightness and colour as well as select the monitors display mode - video or scope view. The SmartScope Duo 4K also incorporates a Tally display around the border of the image, which works with industry standard Tally systems. The unit takes up three rack height units, but is less than two inches deep (including the connector depth), which makes it well suited for use in production trucks where space is at a premium. The unit also automatically flips the image if you need to install the unit upside down.
Monitors SD/HD/3G/6G-SDI Signals
The SmartScope Duo 4K allows you to monitor SD, HD, 2K, and UHD 4K (3840 x 2160) video. The inputs are auto-sensing/switching to match the supported input video format. Each monitor features one 6G input and one reclocked loop-through 6G output.
Video or Scope View

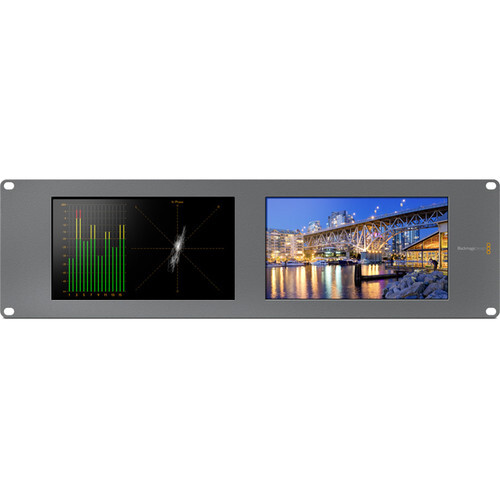

You can select from either the video feed or one of six scope views of the video signal:

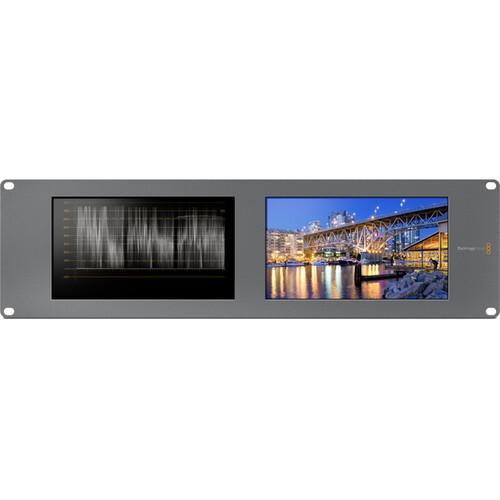

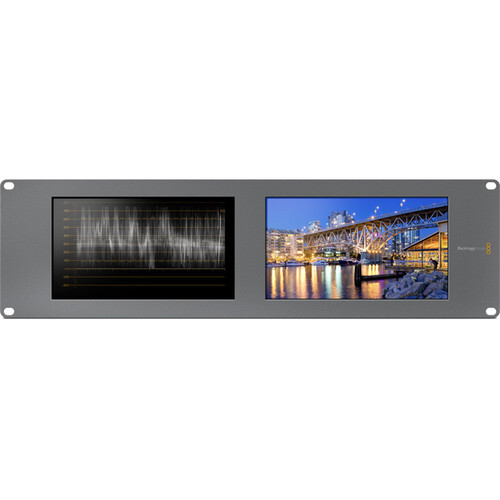

- Waveform: Displays the luminance component of the video signal on an IRE scale.

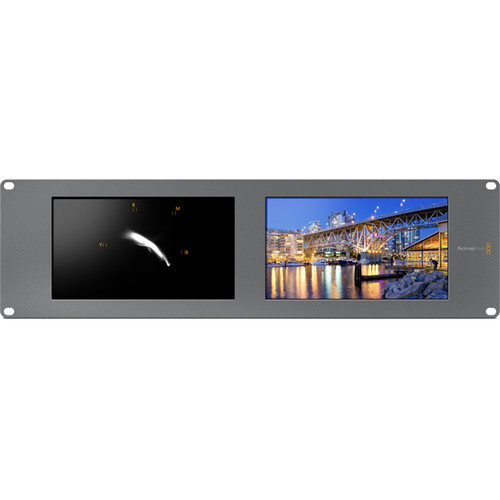

- Vectorscope: Allows you to accurately measure colours in the video signal, and is a valuable tool when matching cameras, or when you need to align the hue on the output of decks.

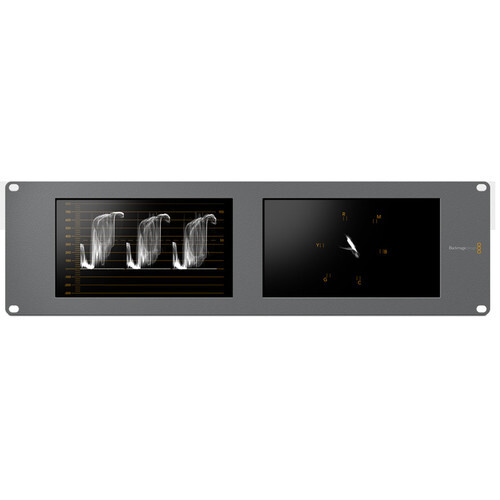

- Parade: You can choose to display either RGB or YUV Parade. RGB Parade lets you check for illegal colours, plotting them against an IRE Scale. The YUV Parade display shows the YUV component video as it is transmitted down the SDI cable.

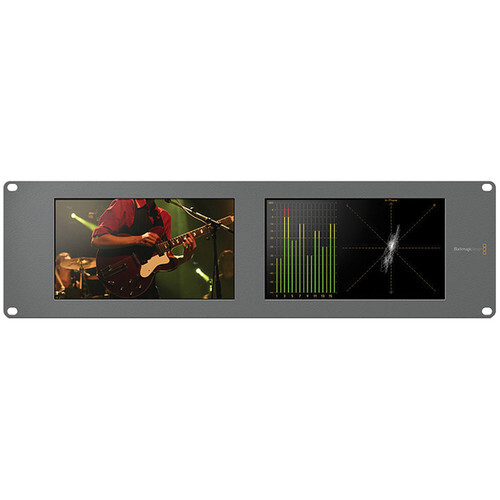

- Audio Views: allows you to monitor 16 channels of audio, checking the levels and the audio phase. You can monitor the levels of all 16 channels at the same time, or monitor the stereo phase of SDI audio pairs. The stereo phase meter plots left and right audio as an XY scope display, and out of phase audio can be seen as either a left or right leaning display.

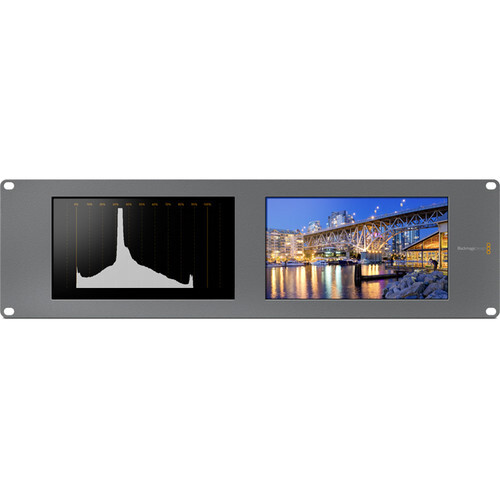

- Histogram: The Histogram view lets you see where the pixels are in your video, and how they are distributed from black to white. You can see where the overall exposure is, and if you are exposing the brighter areas of your image with enough detail.
Software Control

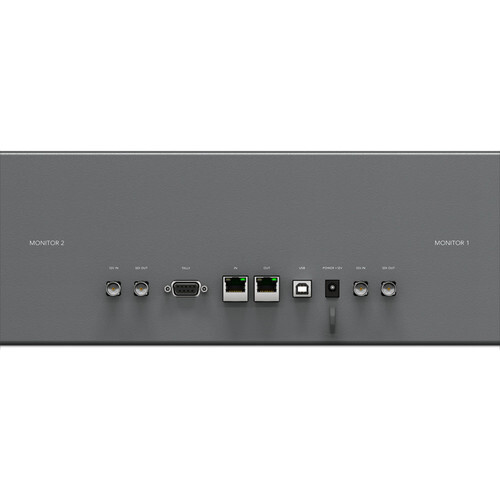

The monitor features an Ethernet in and an Ethernet out port, and you set up the unit using the USB 2.0 port. After that, you use the included free control utility with either a Mac or Windows computer via the Ethernet connection to select your views and make any adjustments to the monitor for brightness and colour.
Tally

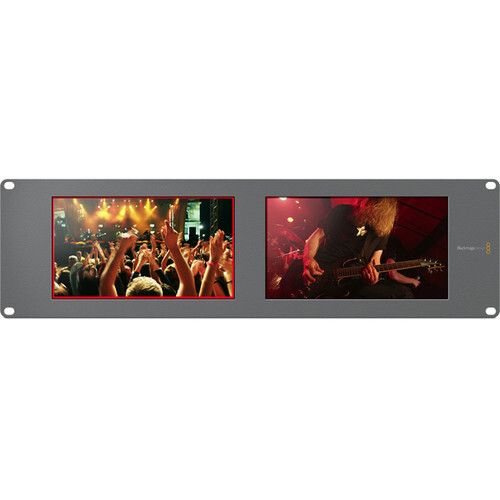

Each monitor supports the Tally function with different coloured borders indicating the Tally condition: preview, on air, and recording. The tally connector is compatible with switchers and automation systems.
Reversible
SmartView monitors may be installed in the extreme top or bottom of equipment racks. The SmartView monitor will automatically sense the rotation angle of the screen and flip the image to the correct rotation. You can even remove the front panel and rotate it 180 degrees if required.
DISPLAY
|
|
|
|
Panel Type |
TFT LCD
|
Display Size |
20.3 cm
|
Aspect Ratio |
0.67
|
Pixels Per Inch (ppi) |
117 ppi
|
LUT Support |
Yes
|
Image Controls |
Blue Only, Focus Peaking, Histogram, Image Flip, Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform
|
INPUTS / OUTPUTS
|
|
Embedded Audio |
SDI: 16-Channel
|
Other I/O |
2x RJ45 (LAN)
|
1x USB-A 2.0 | |
1x DE-9/DB-9 (Tally) | |
FORMAT SUPPORT
|
|
Video Format |
SDI (4:4:4)
|
UHD 4K: 30/29.97/25/24/23.98 | |
DCI 2K: 25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
480i | |
576i | |
POWER
|
|
Power Consumption |
20 W (Maximum)
|
MOUNTING
|
|
Rack Form Factor |
3 RU
|
GENERAL
|
|
Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity
|
Storage Conditions |
-4 to 113°F / -20 to 45°C
|
Dimensions |
48.3 x 13.3 x 3.2 cm
|
Weight |
1.53 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
- 12V Universal Power Supply
- Set of International Wall Socket Adapters
