Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI
SKU code: 61331
- 12 x 6G-SDI I/O
- Supports SD, HD, 4K
- 4:2:2 & 4:4:4 Sampling
- 10-Bit Processing & Reclocking
- LCD, Push Buttons, Ethernet
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:

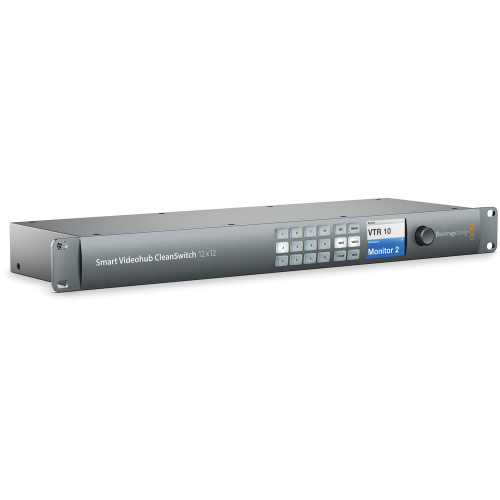

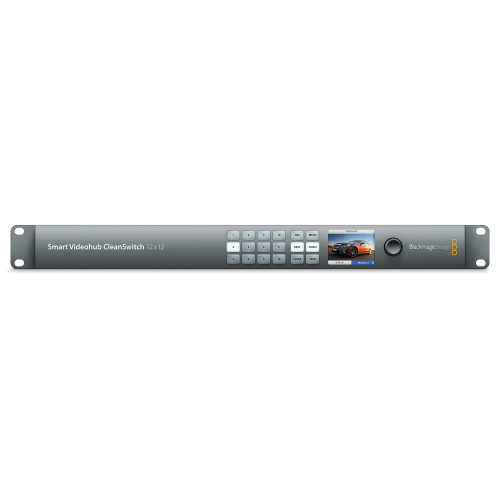

Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI
The Smart Videohub CleanSwitch 12 x 12 6G-SDI from Blackmagic Design is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. The CleanSwitch model allows for re-timing of SDI feeds, so all switches are timed to happen between frames. It supports 4:2:2 and 4:4:4 colour sampling and 10-bit processing for smoother gradations. Housed in a 1RU frame, the Smart Videohub is ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network.
PROCESSING
|
|
|
|
Switching Type |
Pushbutton, Software
|
Processing Resolution |
DCI 4K at 60
|
Colour Processing |
8-Bit 4:2:2
|
10-Bit 4:2:2 | |
12-Bit 4:4:4 | |
Audio Processing |
48 kHz / 24-Bit
|
INPUT
|
|
Video Inputs |
12x BNC (6G-SDI)
|
Input Video Format |
SDI (10-Bit 4:4:4 RGB, YUV)
|
DCI 4K at 24 fps | |
UHD 4K up to 30 fps | |
DCI 2K up to 60 fps | |
DCI 2KPsF up to 30 fps | |
1080p up to 60 fps | |
1080PsF up to 30 fps | |
1080i up to 60 fps | |
SDI (10-Bit 4:2:2 RGB, YUV) | |
DCI 4K at 24 fps | |
UHD 4K up to 60 fps | |
DCI 2K up to 60 fps | |
DCI 2KPsF up to 30 fps | |
1080p up to 60 fps | |
1080PsF up to 30 fps | |
1080i up to 60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Embedded Audio Input |
SDI
|
OUTPUT
|
|
Video Outputs |
12x BNC (6G-SDI)
|
Output Video Format |
SDI (10-Bit 4:4:4 RGB, YUV)
|
DCI 4K up to 30 fps | |
UHD 4K up to 30 fps | |
DCI 2K up to 60 fps | |
DCI 2KPsF up to 30 fps | |
1080p up to 60 fps | |
1080PsF up to 30 fps | |
1080i up to 60 fps | |
SDI (10-Bit 4:2:2 RGB, YUV) | |
DCI 4K up to 60 fps | |
UHD 4K up to 60 fps | |
DCI 2K up to 60 fps | |
DCI 2KPsF up to 30 fps | |
1080p up to 60 fps | |
1080PsF up to 30 fps | |
1080i up to 60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Embedded Audio Output |
SDI
|

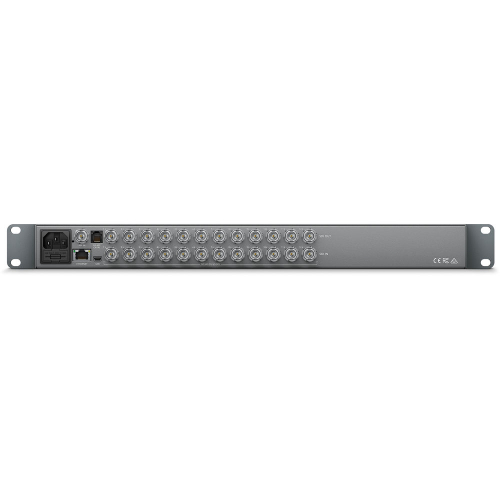

CONNECTIVITY
|
|
Other I/O |
1x BNC Reference
|
1x RJ11 RS-422 | |
1x RJ45 LAN | |
1x Micro-USB RS-232 | |
Video Standard Compliance |
SMPTE 259M/292M/296M/310M/425M-B
|
ITU -R BT.601/BT.656 | |
HDCP Support |
Yes
|
HDR Support |
Yes
|
DISPLAY
|
|
Display Size |
2.2"
|
HARDWARE
|
|
OS Compatibility |
macOS / Windows
|
OS Compatibility |
macOS
|
Windows | |
POWER
|
|
Power I/O |
1x IEC C14 (100 to 240 VAC ) Input
|
GENERAL
|
|
Operating Conditions |
32 to 72°F / 0 to 40°C up to 90% Humidity
|
Storage Conditions |
-4 to 113°F / -20 to 45°C
|
Certifications |
FCC Class A
|
Rack Form Factor |
1 RU
|
Dimensions |
48.3 x 16 x 4.39 cm
|
Weight |
1.88 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI
- SD Card with Software
