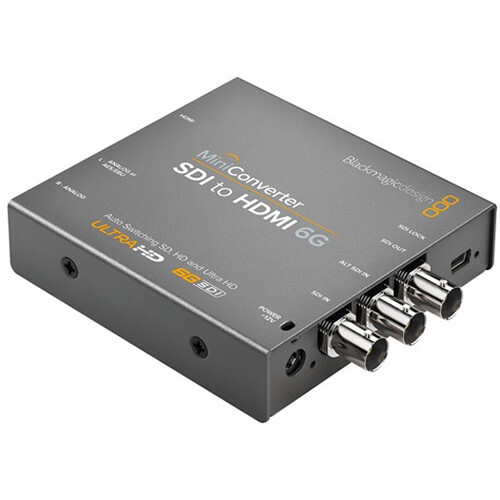

Blackmagic Design SDI to HDMI 6G Mini Converter
SKU code: 61313
- 4K SDI Input
- HDMI Type A and SDI Output
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Outputs
- De-Embeds Audio from SDI
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design SDI to HDMI 6G Mini Converter
Convert SDI signals up to DCI 4K and UHD 4K to HDMI with the Blackmagic Design SDI to HDMI 6G Mini Converter. Perfect for connecting professional SDI equipment to HDMI displays or consumer devices, this compact converter is ideal for broadcast, post-production, and AV applications.

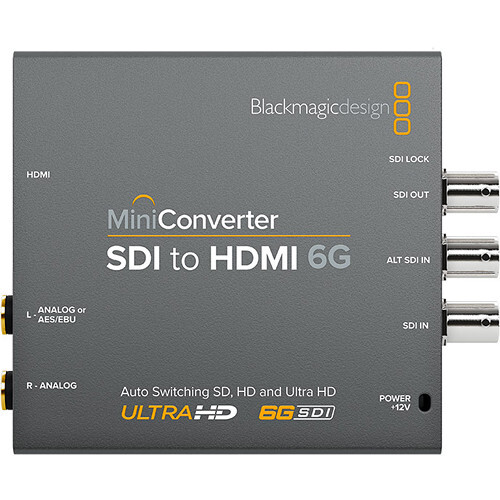

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output.

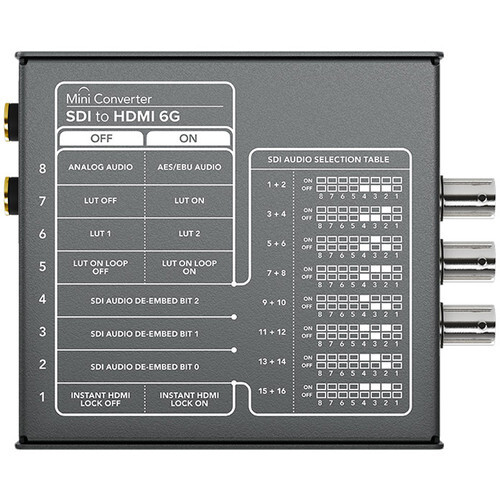

- The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.
- The device is powered by an included 12V power supply and includes international socket adapters.
- 4:2:2 Sampling and colour precision
- HD scaler and SD down-conversion
- Compliant with SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, and SMPTE ST-2081 standards
- Down-conversion for monitoring Ultra HD on HD monitors
- Built-in 3D LUTs
- HDMI instant lock for instant video display when an SDI input is connected
INPUTS / OUTPUTS
|
|
Video Inputs |
2x BNC (6G-SDI)
|
Video Outputs |
1x HDMI
|
1x BNC (6G-SDI) | |
Audio Outputs |
2x 1/4" TRS Stereo Analog Female
|
FORMAT SUPPORT
|
|
Input Video Format |
SDI
|
DCI 4K at 23.98/24/25 fps | |
UHD 4K 23.98/24/25/29.97/30 fps | |
DCI 2K 23.98/24/25 fps | |
1080p 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF 23.98/24/25/29.97/30 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
Output Video Format |
HDMI (4:4:4/4:2:2 RGB, YUV)
|
UHD 4K at 23.98/24/25/29.97/30 fps | |
1080p 23.98/24/25/50/59.94/60 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
576i / 625 lines | |
480i / 525 lines | |
Embedded Audio |
HDMI/SDI
|
POWER
|
|
Power I/O |
1x Barrel (12 to 31 VDC ) Input
|
Power Consumption |
Device: 12 to 18 VDC (5.2 W)
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 113°F / -20 to 45°C
|
Operating Humidity |
0 to 90% ()
|
GENERAL
|
|
Dimensions |
11.405 x 9.22 x 2.29 cm
|
Weight |
0.257 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design SDI to HDMI 6G Mini Converter
- 12V Power Supply with International Socket Adapters
