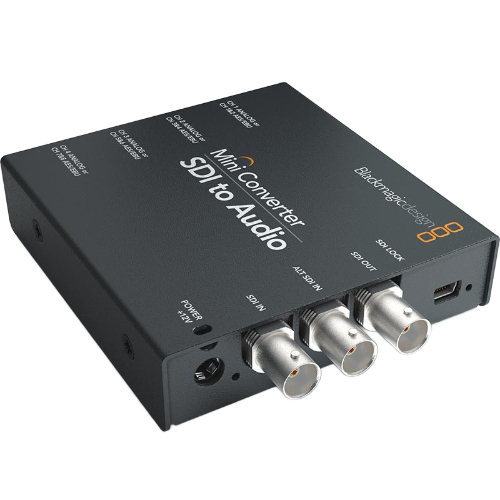

Blackmagic Design SDI to Audio Mini Converter

De-embed up to 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection with the Blackmagic Design CONVMCSAUD. Ideal for routing audio to mixers, broadcast decks, and monitors, this solution ensures seamless integration of audio and video in professional setups.

Auto Switching SD and HD

Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.

Advanced 3 Gb/s SDI Technology

Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.

International Power Supply

Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight!

SDI Input
SDI: Switchable between SD, HD and 3 Gb/s SDI
SDI Redundant: Automatically switches over if main SDI input is lost
Analog Audio
4 channels of professional balanced analog audio with standard 1/4 inch jack connections
AES/EBU
8 channels of professional balanced digital with standard 1/4 inch jack connections
Format
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
Sampling
04:02:02
Power Requirements
12VDC (includes power supply)


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design SDI to Audio Mini Converter
  • Universal AC Adapter
