Blackmagic Design MultiView 4 HD
SKU code: 61148
- 4 x SD/HD/3G-SDI Inputs
- 1 x SDI & 1 x HDMI Outputs
- Automatic Signal Detection
- SDI Re-Clocking on Output
- Monitor EDID Support
- Custom Labels & Audio Metering
- Compact Metal Housing
- Quad Multiviewer
$329.00
Dispatches within 3-5 business days*
For store pickup please contact us
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

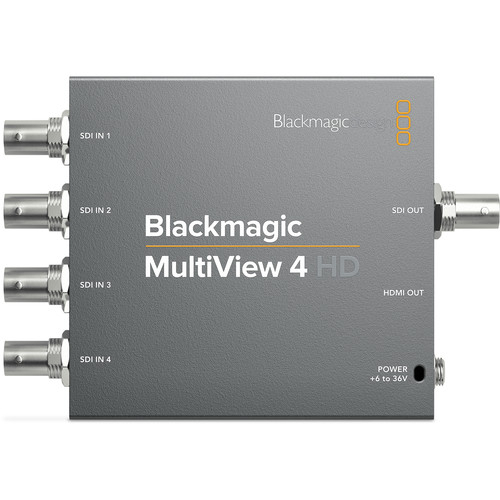

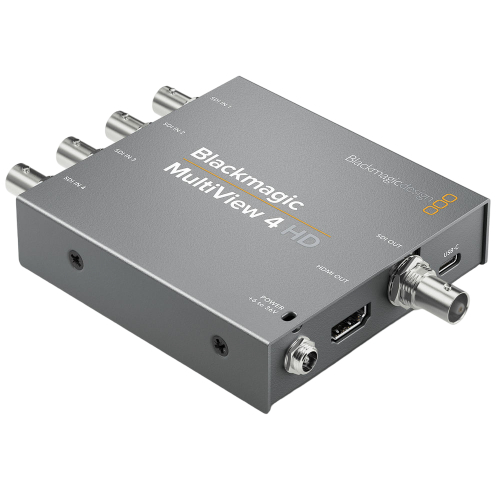

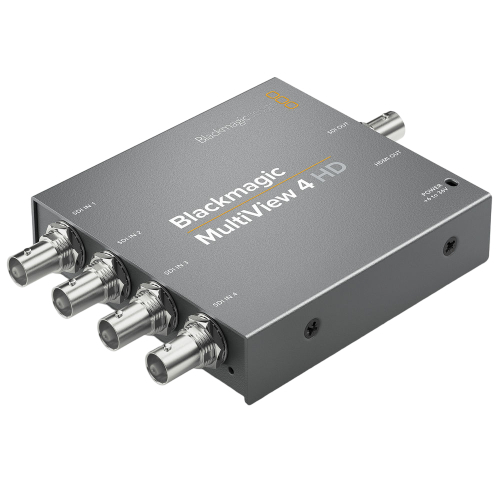

Blackmagic Design MultiView 4 HD
The Blackmagic Design MultiView 4 HD is a compact mini-converter that displays up to four separate SDI streams through its HDMI or 10-bit SDI multiview outputs. Supporting SD, HD, and 3G-SDI formats, this unit features automatic signal detection, SDI re-clocking, and monitor EDID support, making it an ideal solution for efficient, high-quality multi-viewing in a compact design.
Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 13.46 x 9.14cm, and it includes a power supply with international adapters.
Features
- Four SDI inputs output to one SDI and one HDMI multiview
- Automatic signal detection, SDI output re-clocking
- Monitor any combination of HD or SD formats, and frame rates

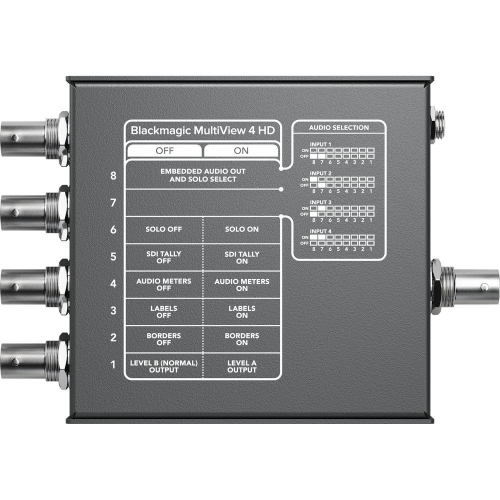

- Display custom labels, audio metering, and more on each view
|
INTERFACES
|
|
| Inputs |
4 x BNC (3G-SDI)
|
| Embedded Audio |
SDI
|
| Outputs |
1x BNC (3G-SDI)
|
| 1x HDMI | |
|
STANDARDS
|
|
| Video Standard Compliance |
SMPTE 259M/292M/296M/310M/425M-B
|
| ITU -R BT.601/BT.656 | |
| EDID Support |
Yes
|
| OS Compatibility |
macOS 10.15
|
| macOS 11.1 or Later | |
| Windows 10 or Later (64-Bit Only) | |
|
TRANSMISSION
|
|
| Video Format |
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
|
| DCI 2K | |
| 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1080PsF: 23.98/24 fps | |
| 1080i: 50/59.94/60 fps | |
| 720p: 50/59.94/60 fps | |
| NTSC: 59.94 fps | |
| PAL: 50 fps | |
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
|
POWER
|
|
| Power I/O |
1x Barrel Input
|
| Power Consumption |
6 to 36 VDC (5.5 W)
|
|
GENERAL
|
|
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity
|
| Storage Conditions |
-4 to 113°F / -20 to 45°C
|
| Dimensions |
12.30 x 7.95 x 2.95 cm
|
| Weight |
0.24 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design MultiView 4 HD
- 12V Universal Power Supply
- International Socket Adapters
