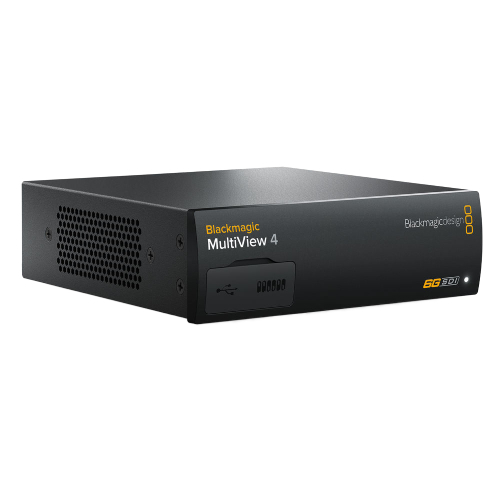

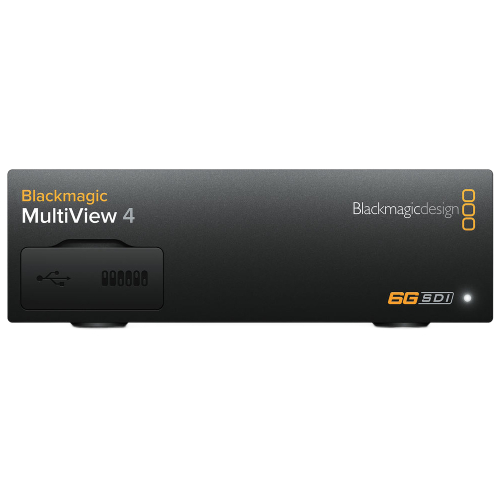

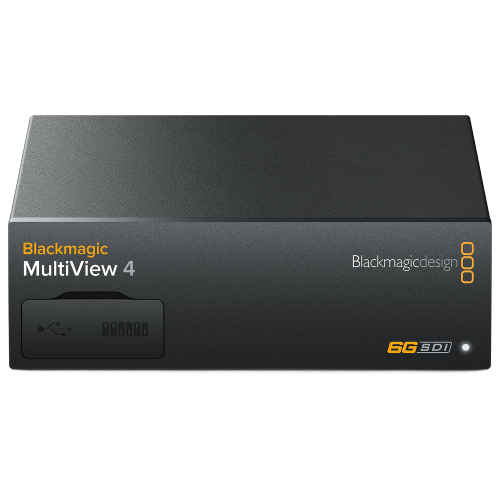

Blackmagic Design MultiView 4

The Blackmagic Design MultiView 4 offers four 10-bit 6G-SDI inputs, allowing you to monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs, taking full advantage of high-resolution displays for clearer viewing. It supports a 2x2 display configuration with each input fully re-synchronised for smooth monitoring. The MultiView 4 includes one 6G-SDI output and one HDMI multi-view output, along with a loop output for each 6G-SDI input, enabling signal pass-through to additional devices for flexible setup options.

Housed in a 1 RU machined aluminium frame, the MultiView 4 is ready for use in the studio, broadcast truck, or even on location. It can be controlled with the included control software via the Ethernet port or by an optional Teranex front panel (not included). For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240 VAC, or you can power the unit by 48 VDC PoE+.

  • Native Ultra HD multi-view output
  • 6G-SDI inputs; accepts SD, HD, Ultra HD, and DCI 4K signals
  • Supports Ultra HD 4K (3840x2160) up to 30p; DCI 4K (4096x2160) at 24p
  • 6G-SDI and HDMI multi-view outputs
  • SDI loop outputs
  • 2x2 multi-view configurations
  • 2-channel audio meters for each view
  • 16x9 SD support
  • Tally support with ATEM switchers via optional Teranex Mini Smart Panel
  • 1 RU machined aluminium chassis
  • Software control over Ethernet; supports Videohub router protocol
  • Built-in 90 to 240 VAC power supply
  • IEC power cable required
  • Supports PoE+ 48 VDC

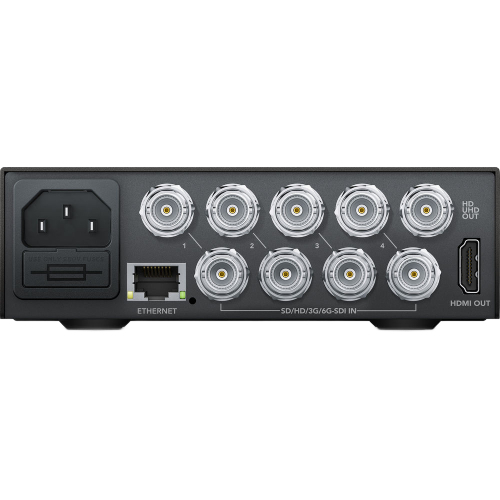

INTERFACES


Outputs
1x BNC (6G-SDI)
1x HDMI
4x BNC (6G-SDI, Looping)
Other I/O
1x RJ45
1x USB-A 2.0

STANDARDS


Video Standard Compliance
SMPTE 259M/292M/296M/310M/425M-B
ITU -R BT.601/BT.656
Reclocking
Yes

TRANSMISSION


Video Format
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K: 24 fps
UHD 4K: 23.98/24/25/29.97/30 fps
DCI 2KPsF: 23.98/24/25 fps
DCI 2K: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps
Maximum Sampling Rate
48 kHz / 24-Bit
Maximum Data Rate
6 Gb/s

POWER


Power Consumption
90 to 240 VAC (16 W)

GENERAL


Rack Form Factor
1 RU
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Dimensions
17.0 x 14.0 x 4.5 cm
Weight
0.58 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design MultiView 4
  • SD Card with Software and Manual
