Blackmagic Design MultiView 16

The Blackmagic Design MultiView 16 offers sixteen 10-bit 6G-SDI inputs, allowing you to monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. By using high-resolution displays, each source can be viewed with enhanced clarity. The MultiView 16 supports 4, 9, or 16 view configurations, with each input fully re-synchronised for seamless monitoring. It features two HD-SDI, two 6G-SDI, and one HDMI multi-view output, along with a loop output for each 6G-SDI input to pass signals to additional devices, providing a versatile, high-quality multi-viewing solution.

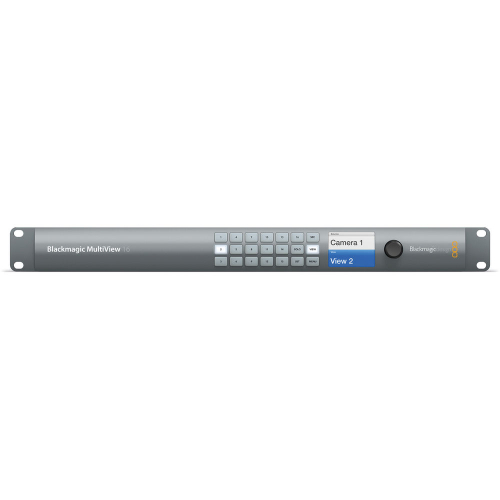

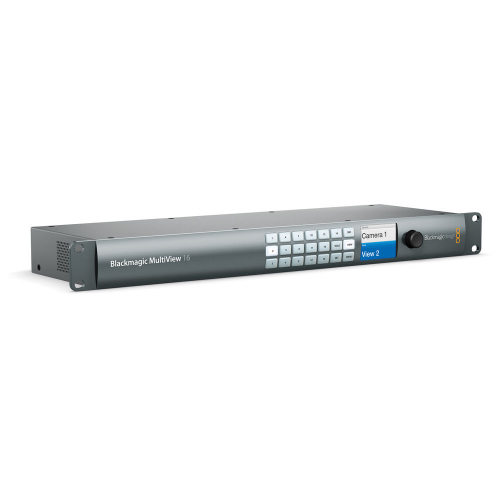

Housed in a 1 RU machined aluminium frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 3.81cm LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 100 to 240 VAC.

Up to 16 Views

Supports up to 16 views on an HD or UHD monitor

Mix SD, HD, and UHD 4K sources on the same display

2 x 2, 3 x 3, or 4 x 4 grids

Re-Syncing

SDI inputs automatically detect and re-sync SD, HD, and UHD 4K30

Monitoring Tools

  • Customise your display with labels, audio meters, tally indicators, and more
  • Choose which audio source is routed to the video output

SD Anamorphic

Anamorphic support in SD enables you to view 16x9 anamorphic sources in widescreen

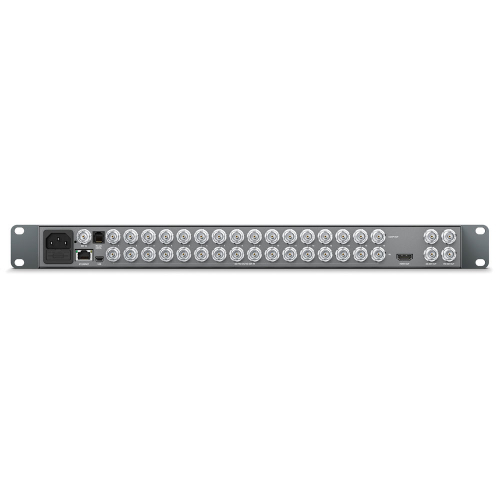

INTERFACES


Inputs
16 x BNC (3G-SDI / 6G-SDI / HD-SDI)
Embedded Audio
SDI
Outputs
16x BNC (6G-SDI / HD-SDI / SD-SDI, Looping)
2x BNC (6G-SDI)
2x BNC (HD-SDI)
1x HDMI
Other I/O
1x RJ45 (RS-422)
1x RJ45 (10/100 Mbps Ethernet)
1x Mini-USB 2.0

STANDARDS


Video Standard Compliance
SMPTE 259M/292M/296M/425M-B
ITU -R BT.601/BT.656
Reclocking
Yes
HDCP Support
Yes
EDID Support
Yes
OS Compatibility
macOS 10.15 to 11.1 or Later
Windows 10 (64-Bit Only)

TRANSMISSION


Video Format
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K: 24 fps
UHD 4K: 23.98/24/25/29.97/30 fps
DCI 2KPsF: 23.98/24/25 fps
DCI 2K: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
Maximum Multiple Display Configuration
4 x 4
Maximum Sampling Rate
48 kHz / 24-Bit
Maximum Data Rate
6 Gb/s

POWER


Power I/O
1x IEC C14 Input
Power Consumption
90 to 240 VAC (45 W)

GENERAL


Rack Form Factor
1 RU
Certifications
FCC Class A
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Material of Construction
Metal
Dimensions
48.26 x 15.24 x 4.32 cm
Weight
2.3 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design MultiView 16
  • Software QR Code
