Blackmagic Design Mini Converter SDI to Audio 4K
SKU code: 61309
- De-Embeds Audio from SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input
- 1/4" Audio Output Jacks
- Analog or AES/EBU Audio Channels
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

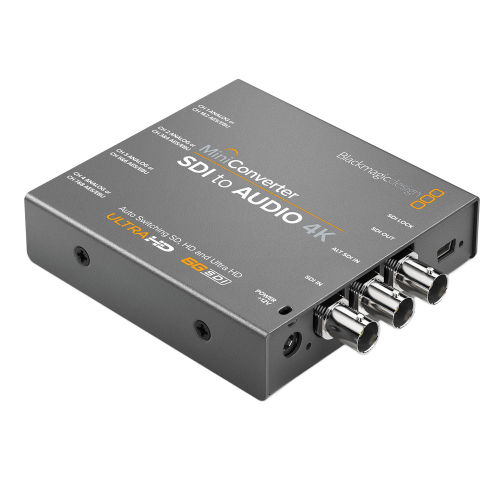

Blackmagic Design Mini Converter SDI to Audio 4K

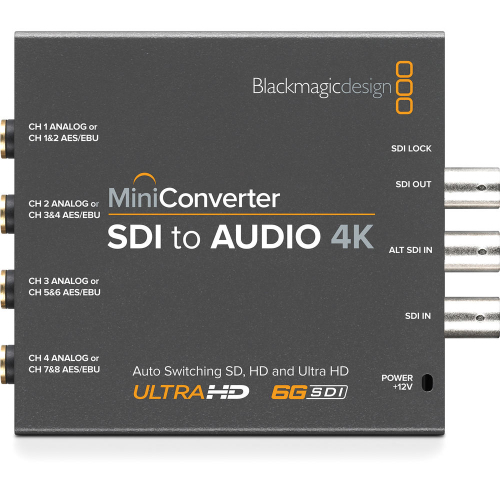

De-embed up to four channels of analog audio or eight channels of AES/EBU digital audio from any SDI video signal with the Blackmagic Design Mini Converter SDI to Audio 4K. Supporting up to Ultra HD and DCI 4K resolutions, it outputs audio through four 1/4" jacks and maintains the original SDI video resolution and frame rate.
Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

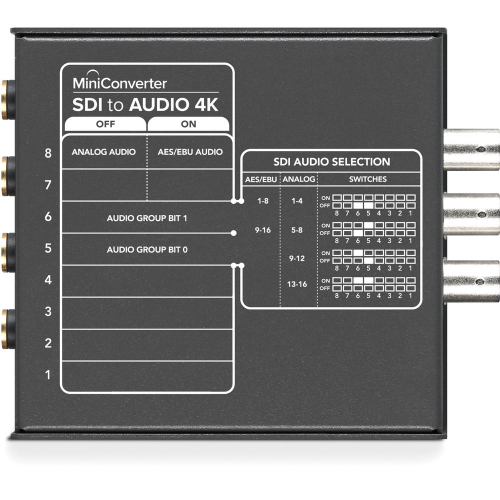

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12VDC power supply is included with international socket adapters.
- 4:2:2 and 4:4:4 sampling and colour precision
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601
SDI Video Input |
1 x SD/HD/3G/6G-SDI
|
1 x SD/HD/3G/6G-SDI-SDI redundant input | |
SDI Video Output |
1 x SD/HD/3G/6G-SDI
|
Audio Output |
4 x 1/4" jacks
|
4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio | |
Multi-Rate Support |
Auto detection of SD, HD, 2K, UHD, and 4K signals
|
Reclocking |
Yes
|
Format Support |
SD:
|
NTSC 525/29.97 and 525/23.98 | |
PAL 625/25 | |
HD: | |
720p 59.94/60 | |
1080i 50/59.94/60 | |
1080PsF 23.98/24/25/29.97/30 | |
1080p 23.98/24/25/29.97/30/50/59.94/60 | |
2K: | |
2048x1080PsF 23.98/24/25 | |
2048/1080p 23.98/24/25 | |
UHD/4K | |
3840x2160p 23.98/24/25/29.97/30 | |
4096x2160p 23.98/24/25/29.97/30 | |
SDI Compliance |
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601
|
SDI Video Rates |
Switchable between SD, HD, 3G, and 6G-SDI
|
SDI Auto Switching |
Automatically detects SD, HD, 3G, or 6G-SDI
|
SDI Video Sampling |
4:2:2, 4:4:4
|
SDI Audio Sampling |
24-bit, 48 kHz
|
SDI Colour Precision |
4:2:2, 4:4:4
|
SDI Colour Space |
YUV, RGB
|
Settings Control |
DIP switches or USB software for Mac OS X and Windows
|
Firmware Upgradeable |
Via USB 2.0
|
Power Supply |
12 VDC
|
Power Consumption |
8.4 W
|
Operational Voltage Range |
12 to 31 VDC
|
Operating Temperature |
32 to 104° F (0 to 40 ° C)
|
Storage Temperature |
-4 to 113° F (-20 to 45 ° C)
|
Relative Humidity |
0 to 90% non-condensing
|
Dimensions |
11.48 x 9.22 x 2.29 cm
|
Weight |
0.215 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Mini Converter SDI to Audio 4K
- 12VDC Power Supply with International Socket Adapters
