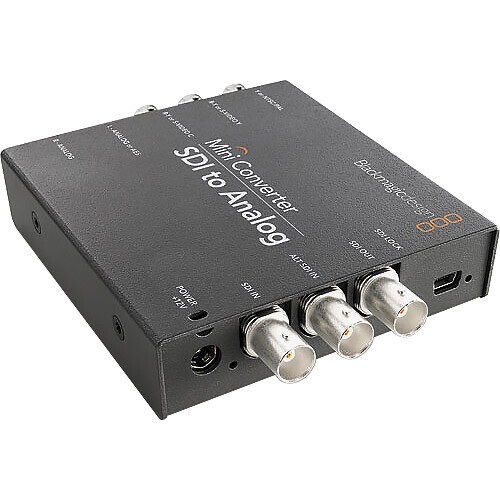

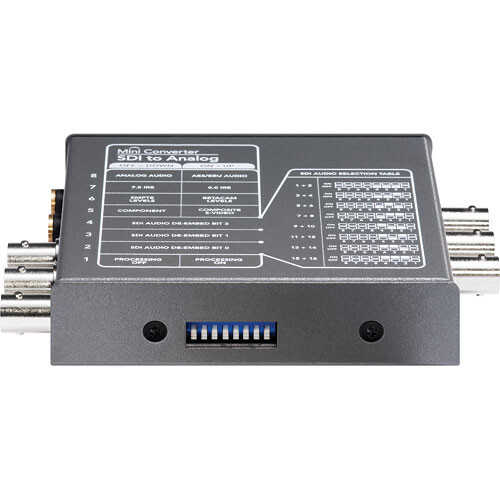

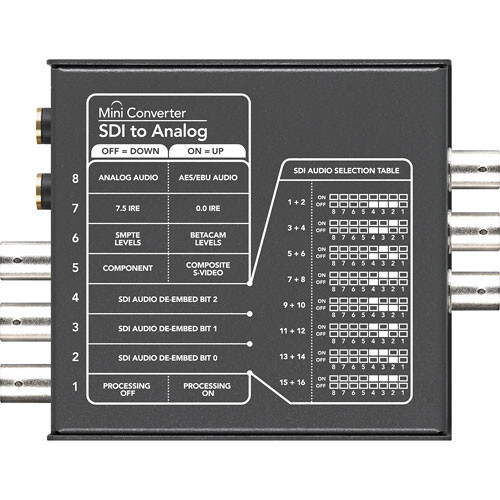

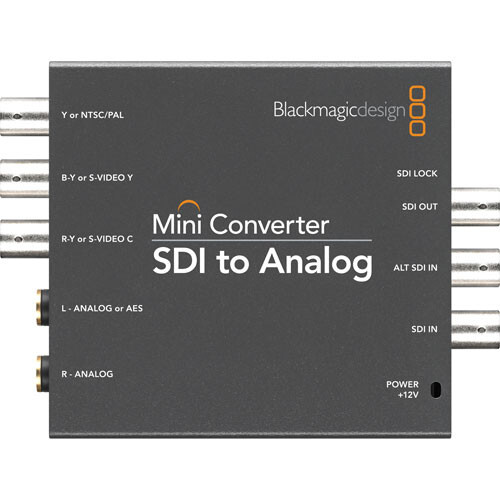

Blackmagic Design Mini Converter SDI to Analog

Convert SDI signals to analog with the Blackmagic Mini Converter SDI to Analog. Supporting HD/SD component, NTSC, PAL, and S-video outputs, it also allows audio de-embedding from SDI signals, enabling analog audio output-perfect for integrating SDI sources into analog workflows.

SDI to Analog Conversion

Use this device to convert SDI video signals to analog output.

Embedded Audio

The Converter can de-embed audio from an SDI signal so that you can output it via the analog outs.

Input
(1) SDI (switchable between SD, HD & 3Gbs SDI)
Output
(1) component, NTSC, PAL, and S-video
(1) SDI (switchable between SD, HD & 3Gbs SDI)
Audio
Analog:
(2) channels of professional balanced analog with standard 1/4" jack connections
Digital:
(2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard
Power
12VDC


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design Mini Converter SDI to Analog
  • Power Supply
