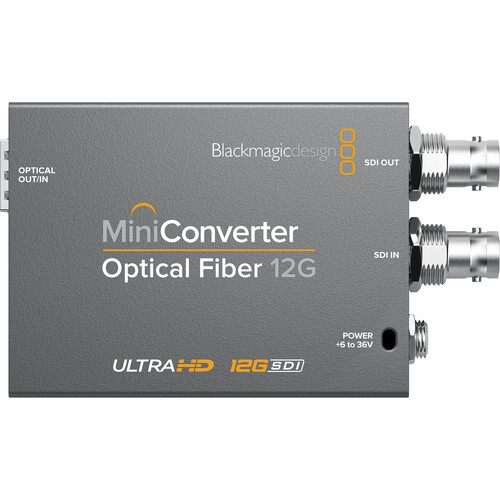

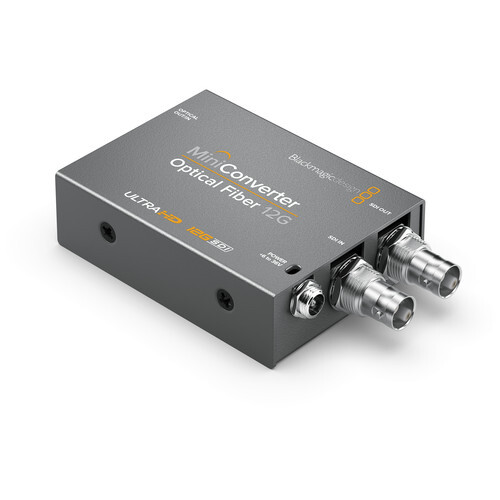

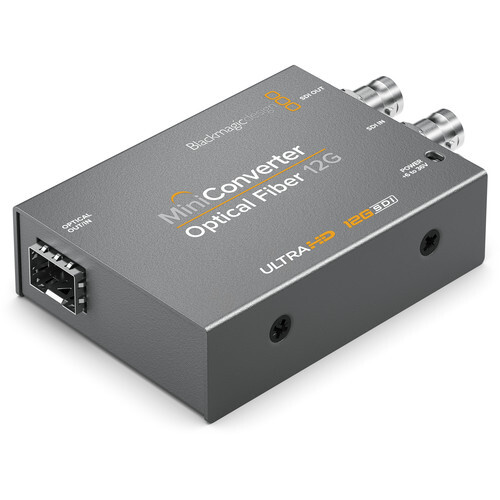

Blackmagic Design CONVMOF Overview

The Optical Fiber 12G-SDI Mini Converter from Blackmagic Design offers bidirectional, multi-rate SDI to optical fibre conversion capabilities with complete independence in each direction and support for up to DCI 4K25 and UHD 4K60 signals. This converter has one SFP optical fibre socket (requires a separate module), one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fibre runs and compatibility with both studio and field HD-SDI and SD equipment.

Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the macOS/Windows-compatible converter software. This compact converter features a sturdy metal housing and includes a 12V universal power supply with a locking connection for added security.

Features

  • Bidirectional, multi-rate SDI to optical fiber conversion
  • Supports video signals up to DCI 4K25 and UHD 4K60
  • Automatic signal detection
  • Supports up to 16-channel embedded audio
  • Change settings with function switches or the macOS/Windows-compatible software
  • Universal power supply with locking connector
  • Rugged, compact metal housing
  • One SMPTE optical fiber SFP socket (requires separate module)
  • 12G/6G/3G-SDI input and output
BLACKMAGIC DESIGN CONVMOF

Video Inputs 1 x BNC (12G-SDI)
Video Outputs 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI)
Input Video Format SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
Output Video Format SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
Embedded Audio SDI Input/Output: 16-Channel

STANDARDS

Video Standard Compliance SMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081
ITU -R BT.601

CONNECTIVITY

Expansion Slots 1 x SFP Slot

POWER

Power I/O 1 x Barrel (6 to 36 VDC) Input
Power Consumption Power Supply: 2 W

ENVIRONMENTAL

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%

GENERAL

Dimensions 10.99 x 5.89 x 2.28 cm
Weight .21 Kg


* Specifications subject to change by the manufacturer without notice

  • Blackmagic Design Mini Converter Optical Fiber 12G-SDI
  • Universal Power Supply
