Blackmagic Design Micro Converter SDI to HDMI 3G
Use HDMI monitors for production monitoring with the Blackmagic Design Micro Converter SDI to HDMI 3G. This compact, rugged converter supports SD/HD/3G-SDI, features a 17-point 3D LUT for precise colour calibration, and offers SDI loop output for flexible setups-ideal for professional broadcast applications.

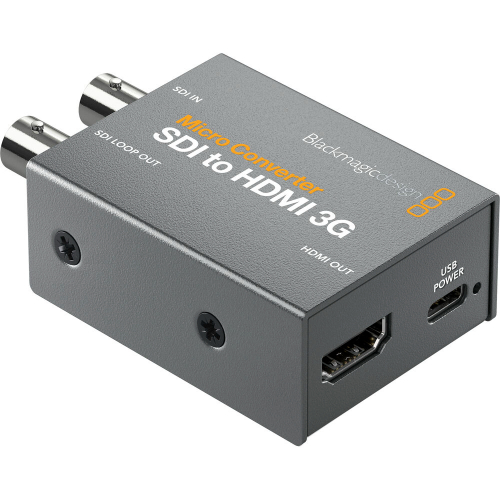

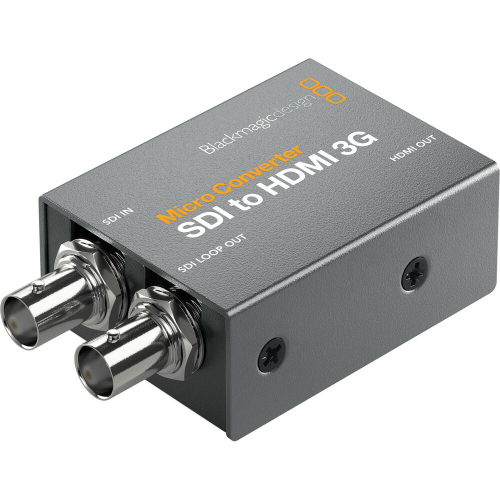

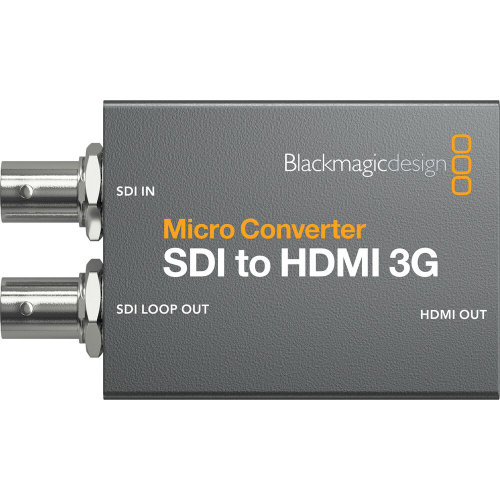

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.
HDMI & SDI Outputs
- One SD/HD/3G-SDI input
- One HDMI output and one SD/HD/3G-SDI loop output
Compact, Rugged Design
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or PC
3D LUT Support
- Supports a 7-point 3D LUT for colour calibrating your monitor, television, or projector
- Outputs LUT for monitoring via SDI loop output
Wider Resolution Support
- SDI support up to DCI 2Kp60
- HDMI support up to 1080p60
Embedded Audio
- Supports embedded HDMI input and embedded SDI output
LED Indicators
- LED indicators for video and power signals
Versatile Power Options
- Power from a monitor, laptop, or other component using the USB Type-C port
- Separately available 100-240 AC power supply with four socket adapters
INPUTS / OUTPUTS
|
|
Video Inputs |
1x BNC (3G-SDI)
|
Video Outputs |
1x BNC (3G-SDI) (Loop Output)
|
1x HDMI | |
Other I/O |
1x USB-C Input
|
FORMAT SUPPORT
|
|
Input Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
|
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2KPsF 25/29.97/30 fps | |
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF 25/29.97/30 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
480i / 525 lines 59.94 fps | |
576i / 625 lines 50 fps | |
Output Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
|
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2KPsF 25/29.97/30 fps | |
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF 25/29.97/30 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
480i / 525 lines 29.97 fps | |
576i / 625 lines 25 fps | |
HDMI (8/10-Bit 4:2:2 RGB, YUV) | |
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
480i / 525 lines 29.97 fps | |
576i / 625 lines 25 fps | |
Embedded Audio |
HDMI/SDI
|
STANDARDS
|
|
Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M-A/425M-B
|
HDCP Support |
Yes, Version 2.2
|
HARDWARE
|
|
Tally Light |
Yes
|
OS Compatibility |
macOS 10.14.15 or Later
|
Windows 10 | |
POWER
|
|
Power I/O |
1x USB-C (4.4 to 5.2 VDC ) Input
|
Power Consumption |
2.5 W
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
0 to 90%
|
GENERAL
|
|
Dimensions |
7.645 x 4.57 x 24.89 cm
|
Weight |
0.15 kg
|
* Specifications subject to change by the manufacturer without notice.
