Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
SKU code: 61305
- 12G-SDI Input, HDMI Output
- 12G-SDI Loop Output
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- LED Video & Power Signal Indicators
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

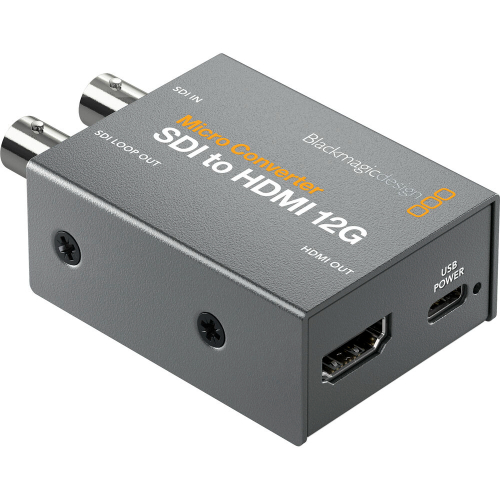

Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
Connect SDI cameras or computers to HDMI displays with the Blackmagic Design Micro Converter SDI to HDMI 12G. Compact and durable, it supports up to DCI/UHD 4K60, offers a 33-point LUT for precise colour calibration, and includes a 12G-SDI input, loop output, and HDMI output-ideal for professional video workflows.
The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A power supply and an international plug adapter set is included with the converter.
I/O
- One 12G-SDI input
- One HDMI output
- One 12G-SDI loop output
Compact, Rugged Design
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
SDI Re-Clocking
- Built-in re-clocking on HDMI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded Audio
- Supports embedded SDI input and embedded HDMI output
LED Indicators
- LED indicators for video and power signals
Versatile Power Options
- Power from a monitor, laptop, or other component using the USB Type-C port
- Power supply and international plug set is included
Operating System Support
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bit
INPUTS / OUTPUTS
|
|
Video Inputs |
1x BNC (12G-SDI) Female
|
Video Outputs |
1x HDMI (2.0) Female
|
1x BNC (12G-SDI) Female (Loop Output) | |
Other I/O |
1x USB-C Control, Firmware Input
|
FORMAT SUPPORT
|
|
Input Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
|
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
480i / 525 lines 29.97 fps | |
576i / 625 lines 25 fps | |
Output Video Format |
HDMI (8/10-Bit 4:2:2 RGB, YUV)
|
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF 25/29.97/30 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
480i / 525 lines 29.97 fps | |
576i / 625 lines 25 fps | |
Embedded Audio |
HDMI/SDI
|
STANDARDS
|
|
Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
|
HDCP Support |
Yes, Version 2.2
|
HARDWARE
|
|
OS Compatibility |
macOS 10.15.15 or Later
|
macOS 11.1 or Later | |
Windows 10 | |
POWER
|
|
Power I/O |
1x USB-C (4.4 to 5.2 VDC ) Input
|
Power Consumption |
Device: 4 W
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
0 to 90% ()
|
GENERAL
|
|
Dimensions |
7.645 x 4.57 x 2.489 cm
|
Weight |
0.15 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
- Power Supply
- International Plug Set
