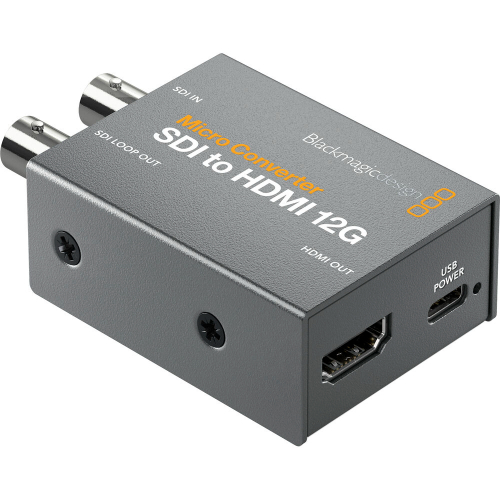

Blackmagic Design Micro Converter SDI to HDMI 12G

Connect SDI cameras or computers to HDMI displays with the Blackmagic Design Micro Converter SDI to HDMI 12G. This compact, rugged converter supports up to DCI/UHD 4K60, features a 33-point LUT for colour calibration, and includes 12G-SDI input, loop output, and HDMI output for seamless, professional video setups.

The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. The converter is powered using a separately available USB Type-C cable and power supply.

I/O

  • One 12G-SDI input
  • One HDMI output
  • One 12G-SDI loop output

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer

SDI Re-Clocking

  • Built-in re-clocking on HDMI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60

Embedded Audio

  • Supports embedded SDI input and embedded HDMI output

LED Indicators

  • LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Powered using a separately available power supply

Operating System Support

  • macOS 10.15 Catalina
  • macOS 11.1 Big Sur or later
  • Windows 10, 64-bit
INPUTS / OUTPUTS


Video Inputs
1x BNC (12G-SDI) Female
Video Outputs
1x HDMI (2.0) Female
1x BNC (12G-SDI) Female (Loop Output)
Other I/O
1x USB-C Control, Firmware Input

FORMAT SUPPORT


Input Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio
HDMI/SDI

STANDARDS


Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
HDCP Support
Yes, Version 2.2

HARDWARE


OS Compatibility
macOS 10.15.15 or Later
macOS 11.1 or Later
Windows 10

POWER


Power I/O
1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption
Device: 4 W

ENVIRONMENTAL


Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90% ()

GENERAL


Dimensions
7.645 x 4.57 x 24.89 cm
Weight
0.15 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design Micro Converter SDI to HDMI 12G
